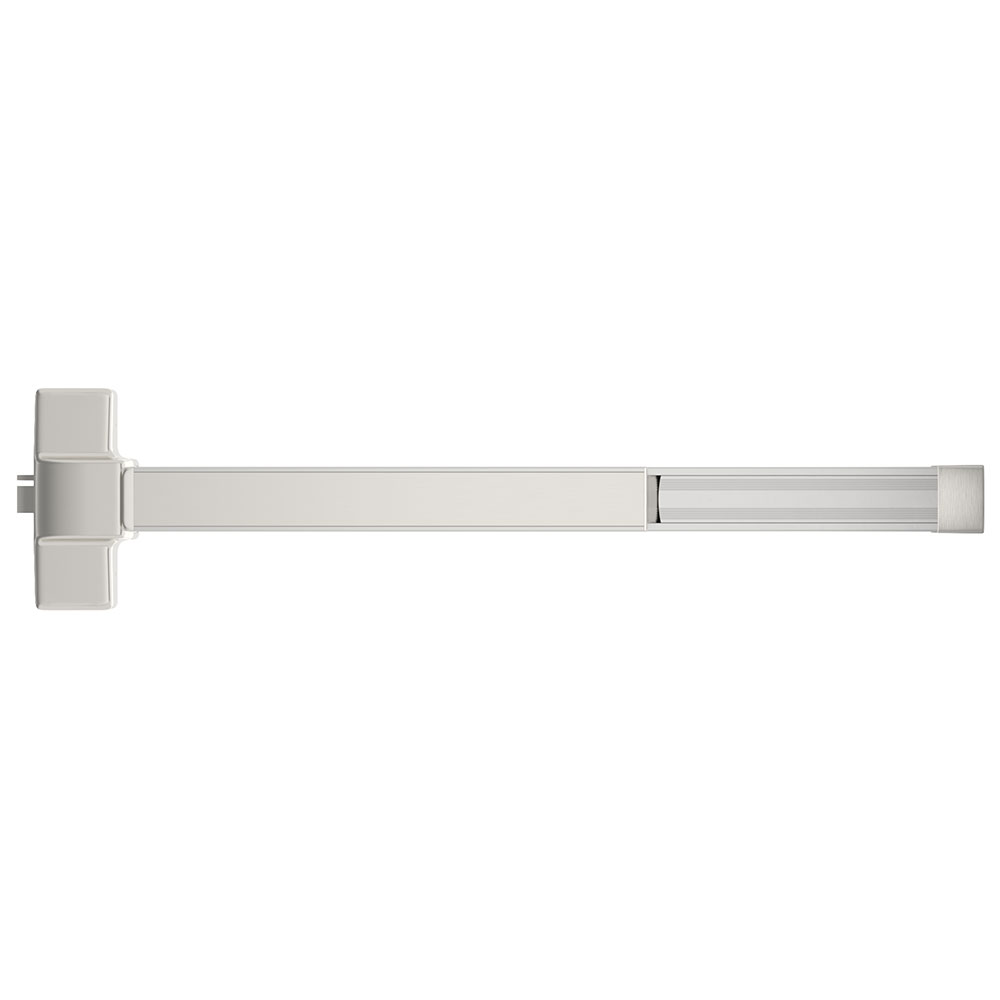

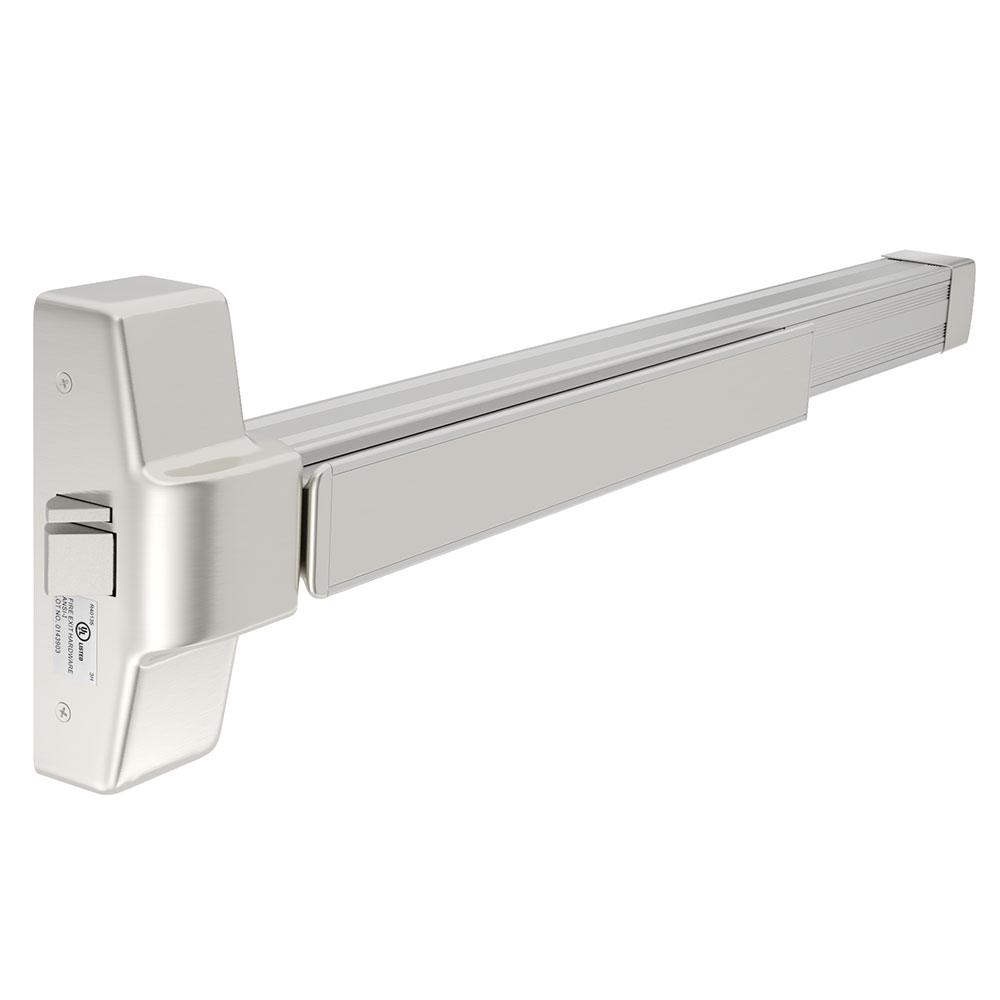

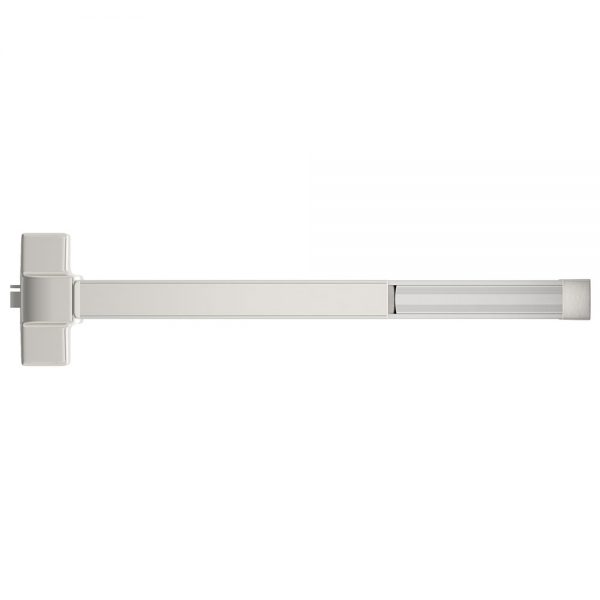

Trudoor TDE-F1000R-EO Heavy-Duty Fire-Rated Rim Exit Device, Exit Only

Usually Ships: Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed fire exit hardware, 3 hour rated

Available Options:


Trudoor TDE-F1000R Heavy-Duty Grade-1 Rim Exit Device, UL Listed, 3 Hour Fire Rated, Exit Only, Satin Stainless Steel

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • UL Listed for panic exit hardware
  • UL Listed fire exit hardware up to 3 hours
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • No dogging feature on fire-rated devices
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation

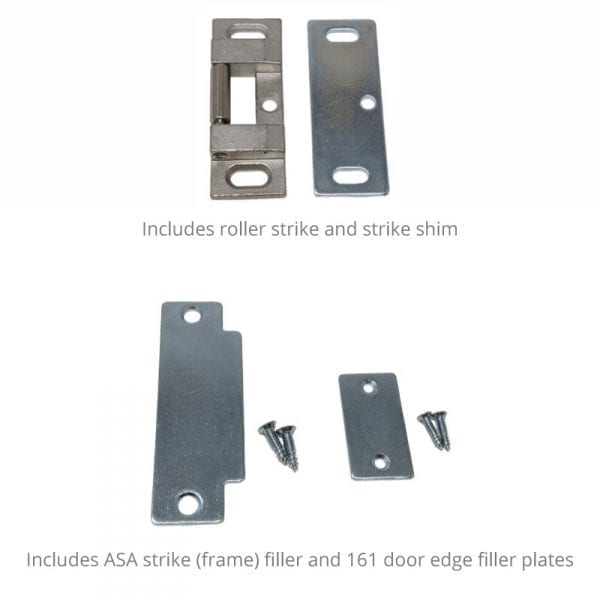

  • Includes ASA strike (frame) filler plate and 161 door edge filler plate





Cross Reference

The TDE-1000R can be specified as a substitute for: Cal-Royal F7700 / F9800, Corbin Russwin ED5200A, Design Hardware 1000R, Dorma F9300, Falcon F-25-R, Hager 4501R-F, Marks M9900F, PDQ 6300R-F, Precision FL2100, Sargent 12-8800, Von Duprin 98/99-F, Yale 6100F / 7100F



US32D (630) Satin Stainless Steel


3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards


Heavy Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

UL Listings

UL Listed for panic exit hardware and fire exit hardware up to 3 hours

Fire Rating

UL Listed for "A" Label 3 Hour Fire Doors


None – Exit Only (Outside Trim Sold Separately)


Deadlocking latchbolt with 5/8″ projection

Dogging Feature



Roller Strike with 5/8″ projection & 1/8″ shim


Wood, Machine & Self Tapping Machine Screws


Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Minimum Stile Width


Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide


3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)


Limited Lifetime Warranty
