TRUDOOR TDE-E08
TRUDOOR TDE-E08

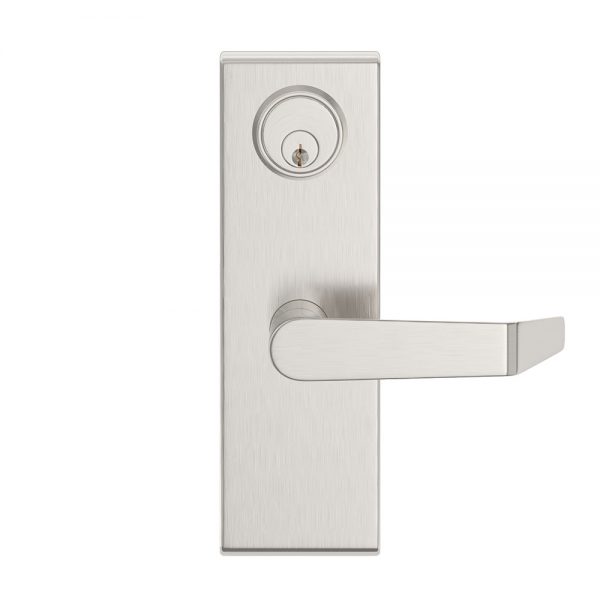

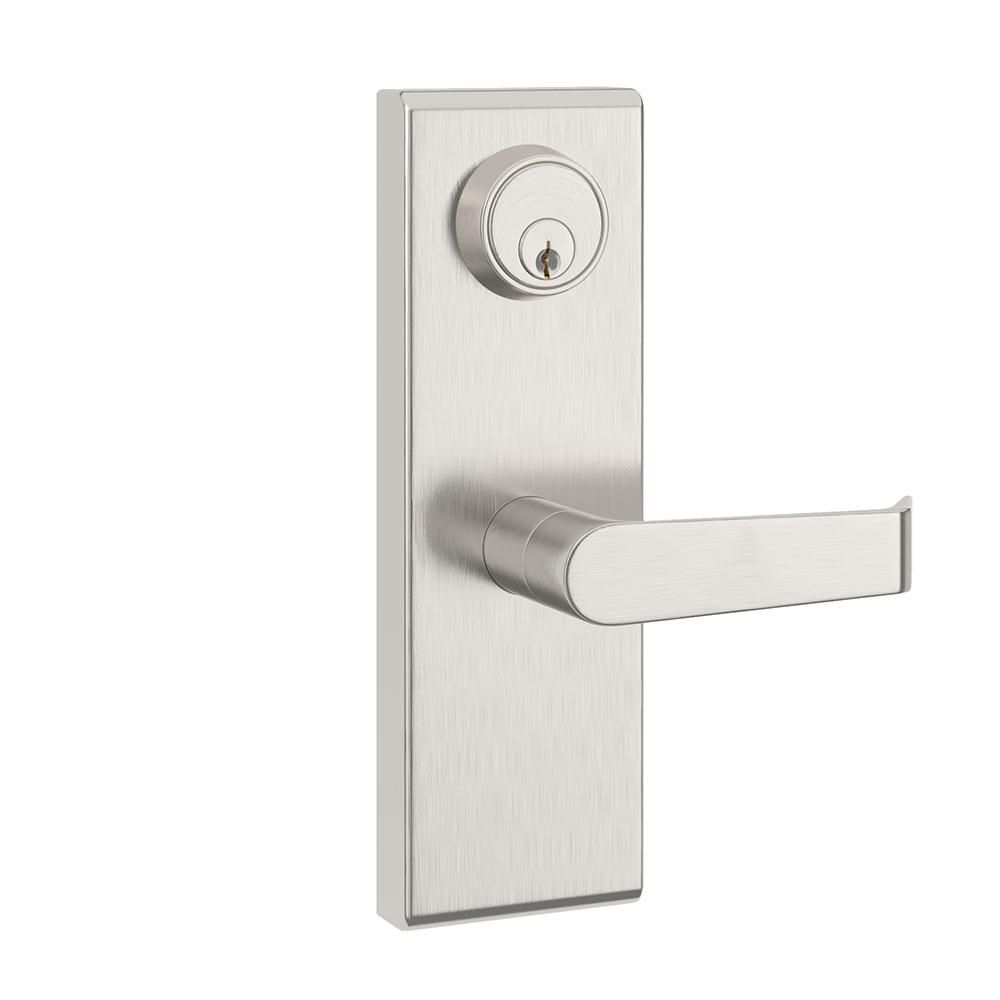

Trudoor TDE-08 Escutcheon Lever Trim for TDE 1000/2000 Series Exit Devices

Usually Ships: Same Day
  • For use with all TDE 1000 and 2000 Series exit devices
  • Entry/classroom function (convertible to night latch)
  • Includes mortise cylinder, Schlage C keyway

Available Options:

Clear

Product Overview

Trudoor TDE-08 Grade-1 Entry Escutcheon Lever Trim with Cylinder, Classroom (08) / Night Latch / Storeroom (09) Function, Satin Stainless Steel

  • For use with Trudoor TDE 1000 and 2000 Series exit devices
  • ANSI function: 08 (key locks/unlocks lever) or *09 (key retracts latch bolt)

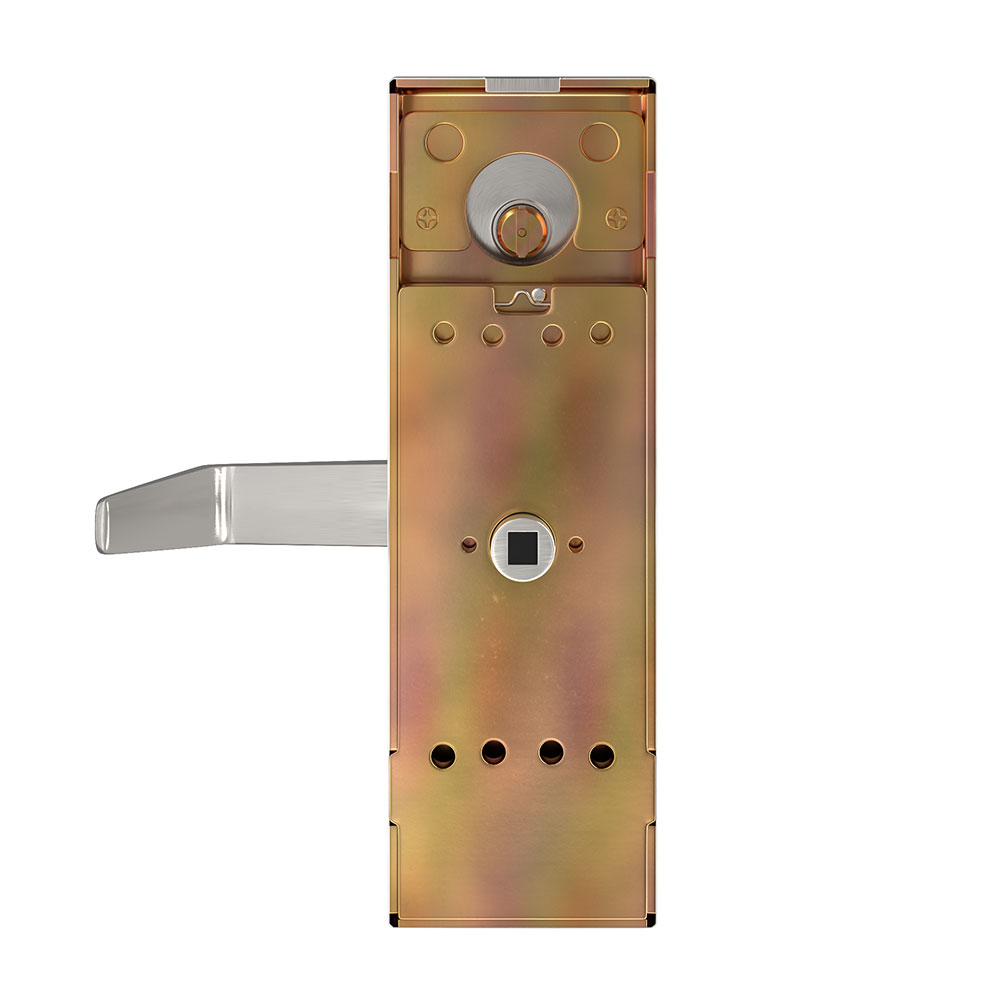

  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys

* Can be converted to 09 Night Latch function in the field by inverting the cylinder cam

Brand

Finishes

US32D (630) Satin Stainless Steel
Function

Entry / Classroom, Night Latch Lever
ANSI Grade

Meets ANSI/BHMA A156.3, Grade 1 standards
Usage

Heavy Duty
Cylinder

1-1/8" mortise cylinder with straight cam (included)
Keyway

Schlage C Keyway
Handing

Non-Handed, Field selected at the time of installation
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Warranty

Limited Lifetime Warranty
