Trudoor TDE-NL Night Latch Exit Device Pull with Cylinder Hole


Usually Ships: Same Day
  • For use with TDE-1000/2000 Series exit devices
  • Nightlatch: key retracts latchbolt
  • 1-1/8″ rim cylinder required (sold separately)

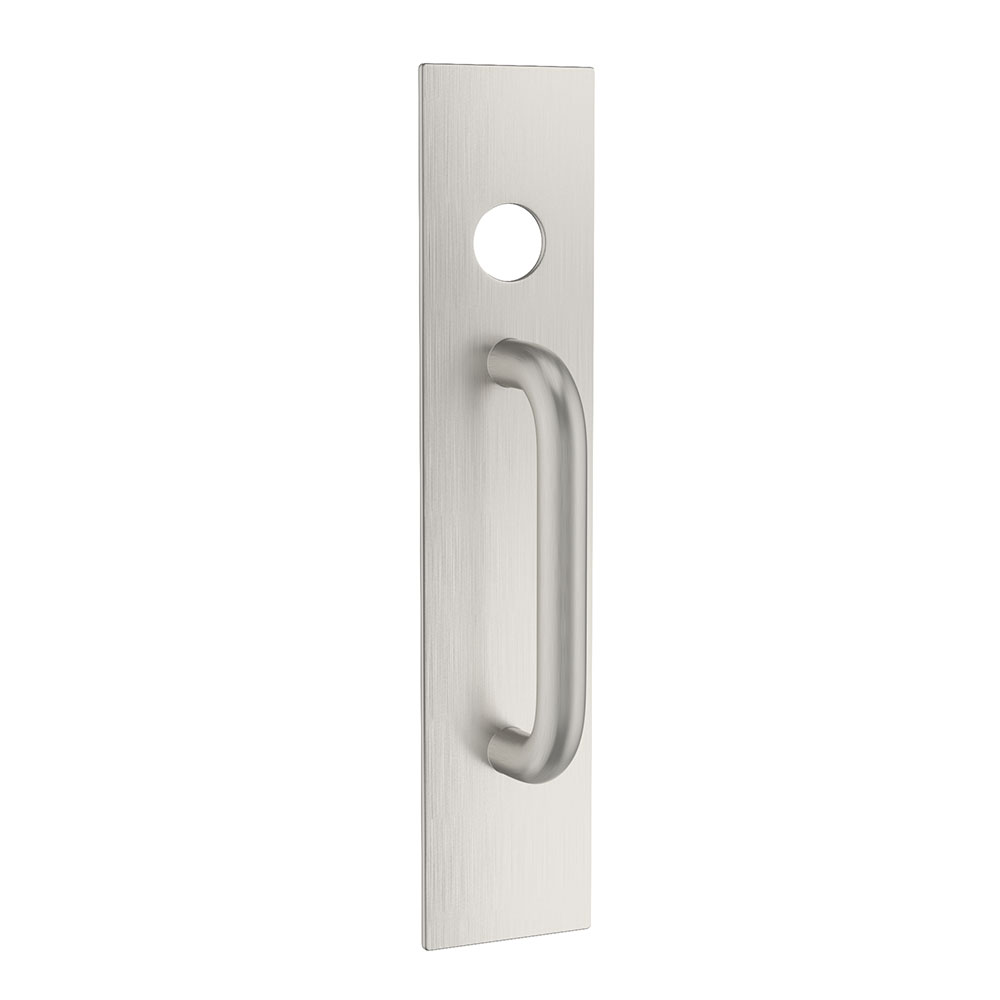

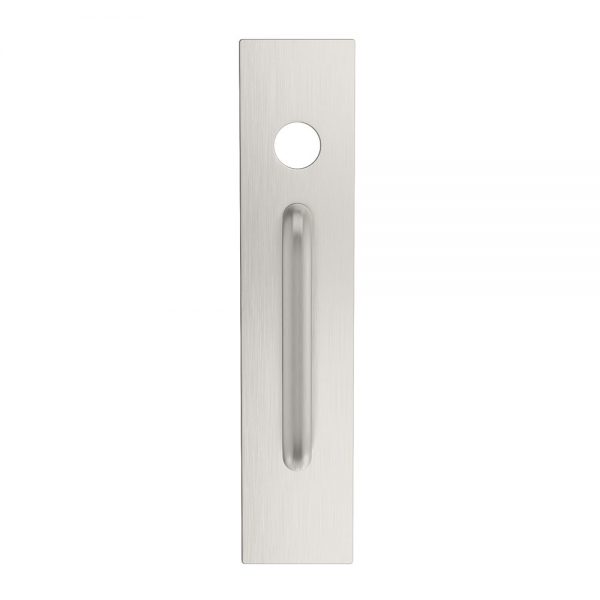

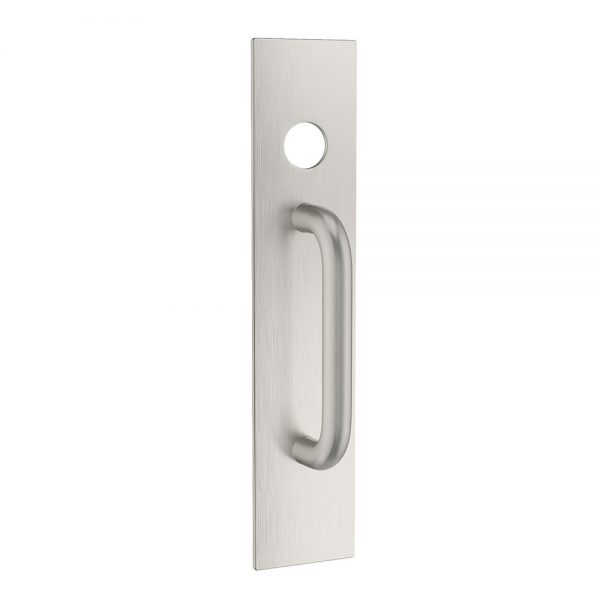

Trudoor TDE-NL Night Latch Pull Trim with Cylinder Hole, Less Cylinder, Satin Stainless Steel

For use with Trudoor TDE-1000R and TDE-2000R Exit Devices

This trim is an ideal choice for high use doors that will be dogged down for push/pull applications.

  • ANSI Function: 03 (Entrance by pull when latchbolt is retracted by key – Key is removable only when it’s locked)
  • Rim Cylinder Must be Ordered Separately
  • US32D/630 Stainless Steel Finish

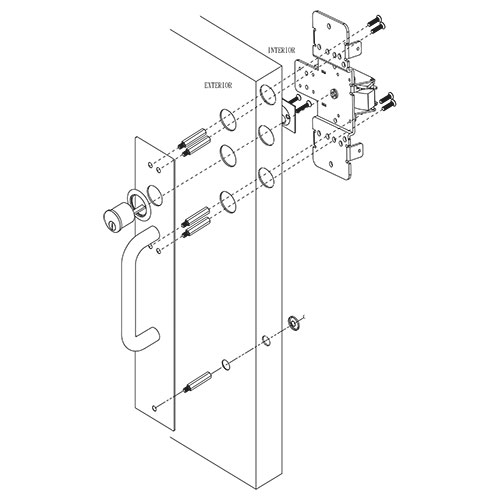

  • Thru Bolts to Head of Exit Device
  • Stainless Steel Construction


US32D (630) Satin Stainless Steel


Night Latch Pull

ANSI Grade

ANSI Grade 1


Heavy Duty

Escutcheon Plate Size

3″ Wide x 13-7/8″ Height x 1/16″ thick


3/4″ diameter hollow x 6-1/4″ CTC x 2-7/16″ projection


1-1/8" Rim Cylinder (Sold Separately)




Limited Lifetime Warranty
