Flush Metal Door

prepped for hinges & lock

Starting at $260


Metal Double Doors

pair w/ inactive door preps

Starting at $555


Metal Fire Door

fire-rated – up to 3 hour label

Starting at $260


Metal Door w/ Glass

with vision lite kit & glass

Starting at $370


Louvered Metal Door

with steel louver (air vent)

Starting at $370


6-Panel Metal Door

embossed 6-panel design

Starting at $335


2-Panel Metal Door

high def. embossed 2-panel design

Starting at $520


Metal Building Door

preassembled, painted

Starting at $850

Specialty Metal Doors


Dutch Door

shelfs available

Starting at $535


Max-Duty Door & Frame

Level 4 – 14-gauge door

Starting at $925


Stainless Steel Door

SS304 #4 – includes frame

Starting at $2200


GRAINTECH™ Door

wood-look steel door

Starting at $675


Steel-Stiffened Door

stiffeners welded to door face

Starting at $505

Premium Brand Metal Doors


Steelcraft Doors

L, B, CE, H T, SZ Series

Starting at $260


Ceco Doors

Envoy, Regent, Omega Series

Starting at $270


Curries Doors

507, 607, 707 Series

Starting at $270


Baron BSC Doors

Polystyrene Core

Starting at $260

Hollow Metal Doors for New and Retrofit Construction Projects

Trudoor provides a full line of standard and custom hollow metal doors for new and retrofit construction projects in the commercial, industrial and institutional markets.

Hollow Metal Doors are made of channel reinforced steel sheets and filled with insulation materials such as polystyrene, kraft honeycomb, or polyurethane. Standard metal doors are 1-3/4″ thick and are prime coat painted. The gray primer finish is suitable for painting.

Hollow Metal Doors are shown to have superior performance for strength and durability compared to the alternate materials. Metal doors are more sanitary, much easier to maintain, and can withstand more abuse than wood or aluminum doors. A result of the strength and durability of steel is that metal doors have the lowest total cost of ownership of any other materials.

We only provide hollow metal doors from American manufacturers that meet the strict guidelines of Steel Door Institute (SDI) and/or National Association of Architectural Metal Manufacturers (NAMM). We are authorized distributors of 9 of the 12 SDI certified manufacturers of steel doors and frames.

Trudoor is an authorized WHI fire-labeled shop (Warnock Hersey / Intertek), enabling us to modify, re-certify, and label fire-rated doors and frames.

Replacement or Retrofit Doors are available with hardware prep locations from all manufacturers, including: Steelcraft • Mesker • Ceco • Curries • Republic • Baron • DKS • Pioneer • Deansteel

hollow-metal-doors
made-in-usa

Any size not listed below, is considered custom. Not all standard sizes are available from all manufacturers. Not all door styles available in standard sizes (e.g. panel doors only available in limited sizes).

Actual door size is less than nominal size, to accommodate for proper clearances and undercut (-1/4″ width, -7/8″ height) — 3070 (3’0″ x 7’0″) actual size = 35-3/4″ x 83-1/8″

All doors = 1-3/4″ thickness

6’8″ Height

Call Size Nominal Width Nominal Height
2068 2’0″ (24 inch) 6’8″ (80 inch)
2468 2’4″ (28 inch) 6’8″ (80 inch)
2668 2’6″ (30 inch) 6’8″ (80 inch)
2868 2’8″ (32 inch) 6’8″ (80 inch)
21068 2’10” (34 inch) 6’8″ (80 inch)
3068 3’0″ (36 inch) 6’8″ (80 inch)
3468 3’4″ (40 inch) 6’8″ (80 inch)
3668 3’6″ (42 inch) 6’8″ (80 inch)
3868 3’8″ (44 inch) 6’8″ (80 inch)
4068 4’0″ (48 inch) 6’8″ (80 inch)

7’0″ Height

Call Size Nominal Width Nominal Height
2070 2’0″ (24 inch) 7’0″ (84 inch)
2468 2’4″ (28 inch) 7’0″ (84 inch)
2670 2’6″ (30 inch) 7’0″ (84 inch)
2870 2’8″ (32 inch) 7’0″ (84 inch)
21070 2’10” (34 inch) 7’0″ (84 inch)
3070 3’0″ (36 inch) 7’0″ (84 inch)
3470 3’4″ (40 inch) 7’0″ (84 inch)
3670 3’6″ (42 inch) 7’0″ (84 inch)
3870 3’8″ (44 inch) 7’0″ (84 inch)
4070 4’0″ (48 inch) 7’0″ (84 inch)

7’2″ – 8’0″ Height

Call Size Nominal Width Nominal Height
3072 3’0″ (36 inch) 7’2″ (86 inch)
2080 2’0″ (24 inch) 8’0″ (96 inch)
2680 2’6″ (30 inch) 8’0″ (96 inch)
21080 2’10” (34 inch) 8’0″ (96 inch)
3080 3’0″ (36 inch) 8’0″ (96 inch)
3680 3’6″ (42 inch) 8’0″ (96 inch)
4080 4’0″ (48 inch) 8’0″ (96 inch)

Defined by Steel Door Institute (SDI)

Level 1 Standard Duty
Unavailable from Trudoor
20-Gauge Steel
1-3/8″ or 1-3/4” Thick Door

Level 2 Heavy Duty
Trudoor Standard
18-Gauge Steel
1-3/4” Thick Door

Level 3 Extra Heavy Duty
16-Gauge Steel
1-3/4” Thick Door

Level 4 Maximum Duty
14-Gauge Steel
1-3/4” Thick Door

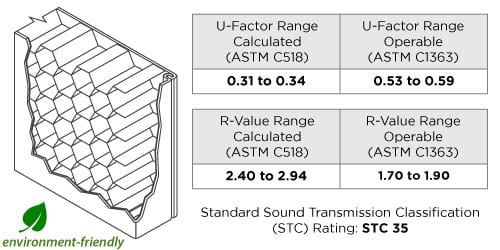

honeycomb-core

Rigid Honeycomb
1″ cell kraft honeycomb

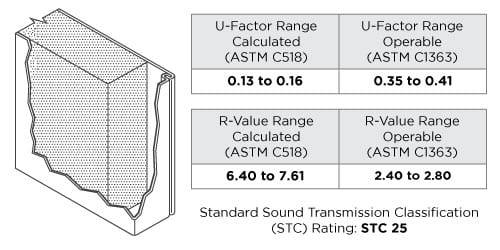

polystyrene-core

Polystyrene
Enhanced thermal performance

Steel Stiffened
steel stiffeners with fiberglass insulation

Temperature Rise Core
mineral fiberboard core

Polyurethane-Core

Polyurethane
extreme thermal performance
