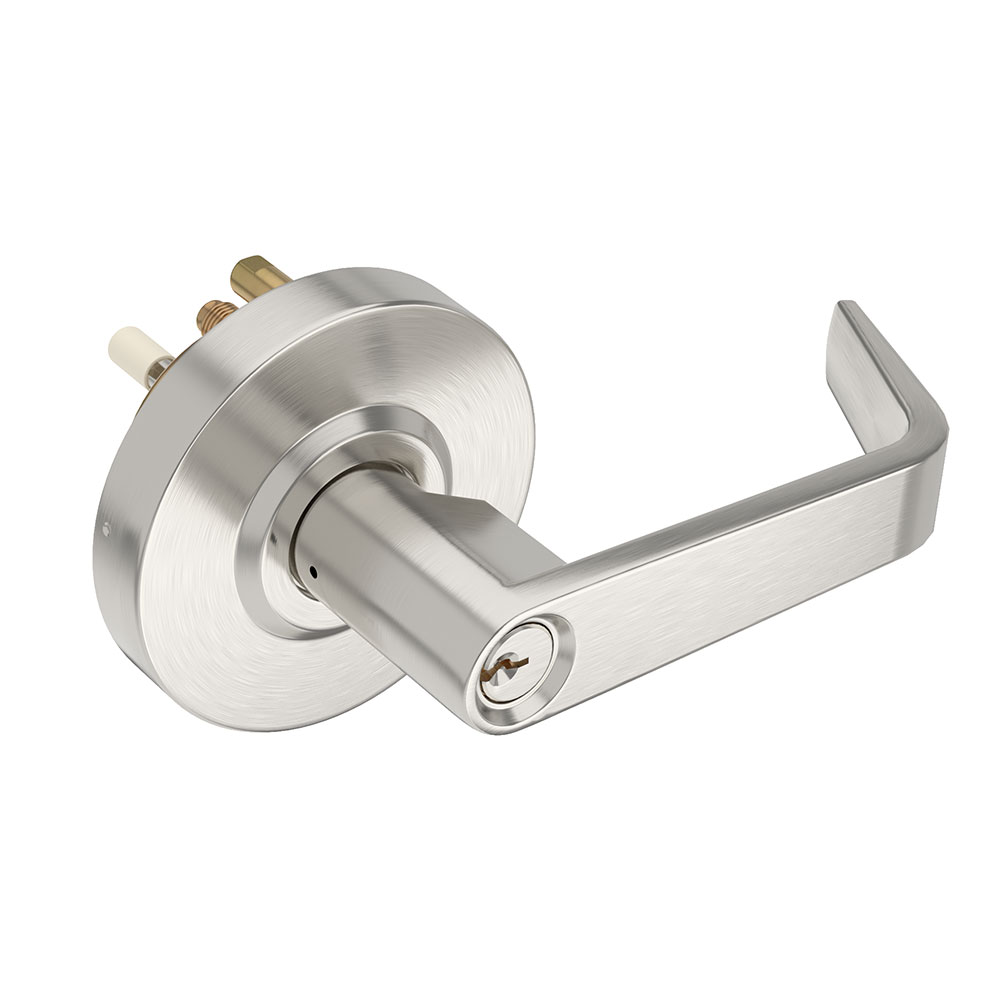

Trudoor TDE-KIL Exit Device Keyed Lever Trim – Entry/Classroom Function

Usually Ships: Same Day

For use with Trudoor TDE-1000/2000R Series rim exit devices
ANSI function 08: key locks/unlocks lever
Installs in a standard 2-1/8″ 161 door prep

Available Options:

Finish

Clear

Quantity:

Trudoor TDE-KIL Key-in-Lever Trim for TDE Exit Devices, Entrance/Classroom Function

For use with Trudoor TDE-1000R and TDE-2000R Series Rim Exit Devices

ANSI Function 08 – Entrance, key locks or unlocks lever – Operates as classroom function
Meets ANSI A156.3 Grade 1 standards
Steel, zinc dichromated chassis with secure thru-bolted design
ADA compliant lever design
Installs in 2-1/8″ 161 door prep
Cross-shaped stainless steel actuator
Non-handed, completely reversible
6-Pin brass cylinder, Schlage C keyway, keyed different
Includes 2 cut keys

Brand	Trudoor
Finishes	622 Matte Black, US26D (626) Satin Chrome
Function	Entry / Classroom
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Cylinder Format	Conventional
Keyway	Schlage C Keyway
Lever	5” Solid Zinc Diecast lever – 2-7/8“ total projection
Rose	3-3/8" Wrought Brass
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
ANSI Grade	ANSI Grade 1
Usage	Medium Duty
Handing	Non Handed – Completely Reversible
Door Applications	1-3/4" Metal and Wood Doors
