Cal-Royal 8600 Low Energy Auto Operator for Single Door Openings

Usually Ships: 2-3 Business Days
  • 39″ length for 3’0″ openings
  • Exceeds all ADA requirements
  • UL/cUL listed, fire-rated up to 3 hours

Available Options:


Cal-Royal 8600 Series Low Energy Auto Operator for Single Door Openings

A swing door operator is beneficial for any commercial, retail, or industrial environment, bestowing any manual door with the complete effortless convenience of an automatic door.

  • Optional Exterior / Interior Operations
  • Interior Operator with Clutch System but without wind dampening and Power Close with 5 force settings feature.
  • ADA Compliant and conforms to ANSI A156.19/ UL235 standard for door operators
  • 700 lbs door capacity
  • Easy non-handed conversion, specify hand when ordering
  • Programmable  controller with easy setup and programming
  • Push and Go feature opens a door when pushed manually
  • Obstacle detection feature for open and closing ensure the safest use possible
  • On-Board Power Supply, 12/24 VDC 1.2A for strike and latches
  • Adjustable closing and Opening speeds
  • Adjustable closing force
  • Adjustable latching speed and position
  • Electrified lock input and delay


Clear Anodized Aluminum

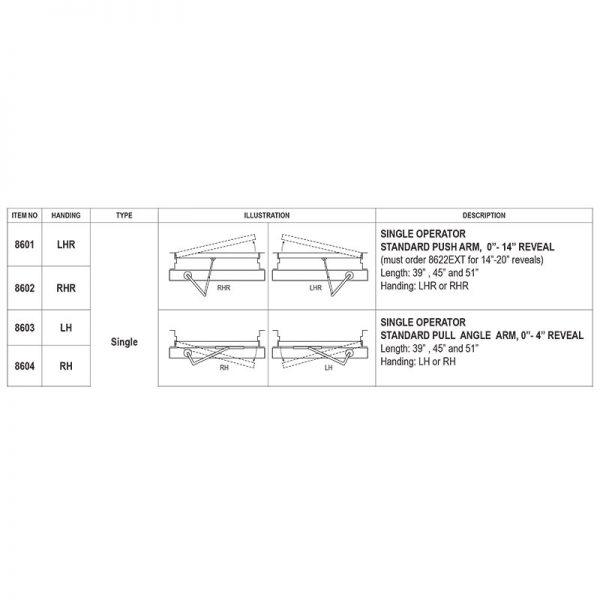

8601, 8602, 8603, 8604


Pull Side (Track Arm), Push Side (Standard Arm)


Heavy Duty



Door Weight

up to 700 lbs.


ANSI Meets A156.19, UL/cUL, UL325 Listed

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code


2 Years
