Product Overview

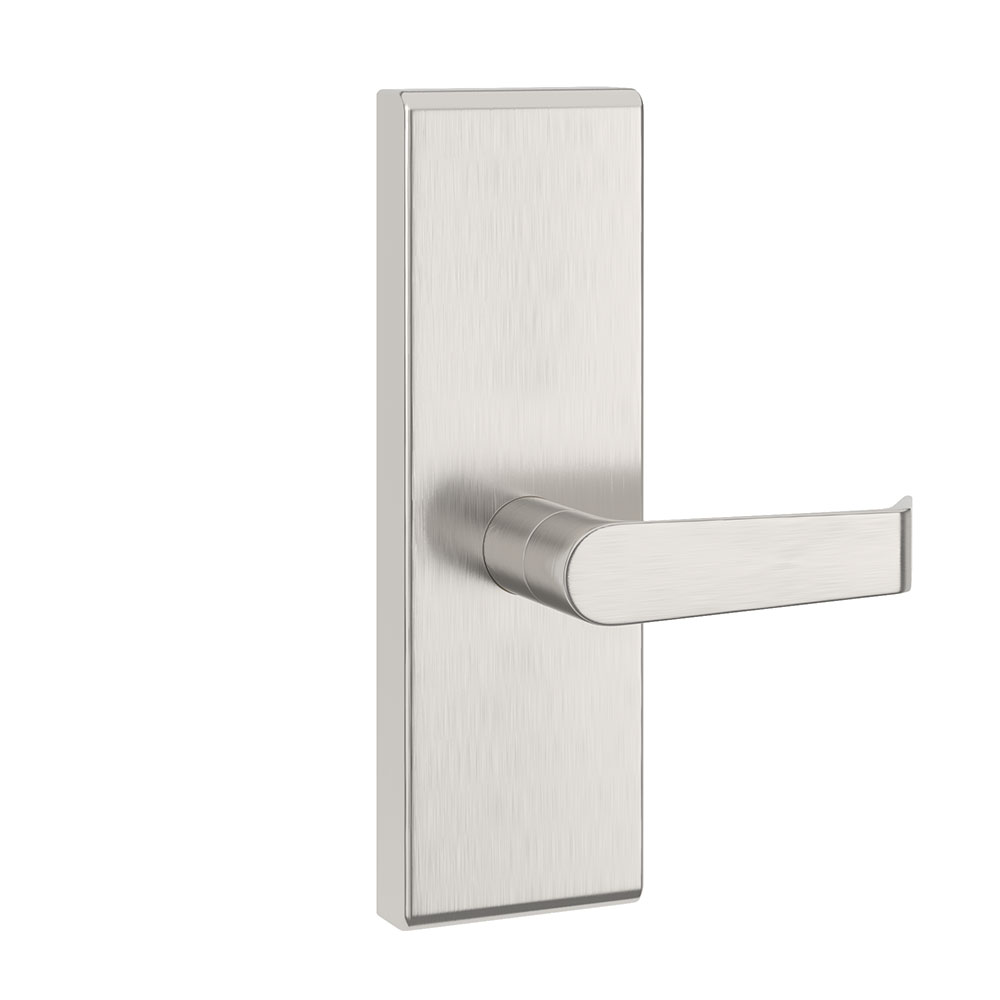

Trudoor TDE-14 Grade-1 Escutcheon Lever Trim, Passage (14) Function, Satin Stainless Steel
- For use with Trudoor TDE 1000 and 2000 Series exit devices
- ANSI function: 14 (lever always operable)

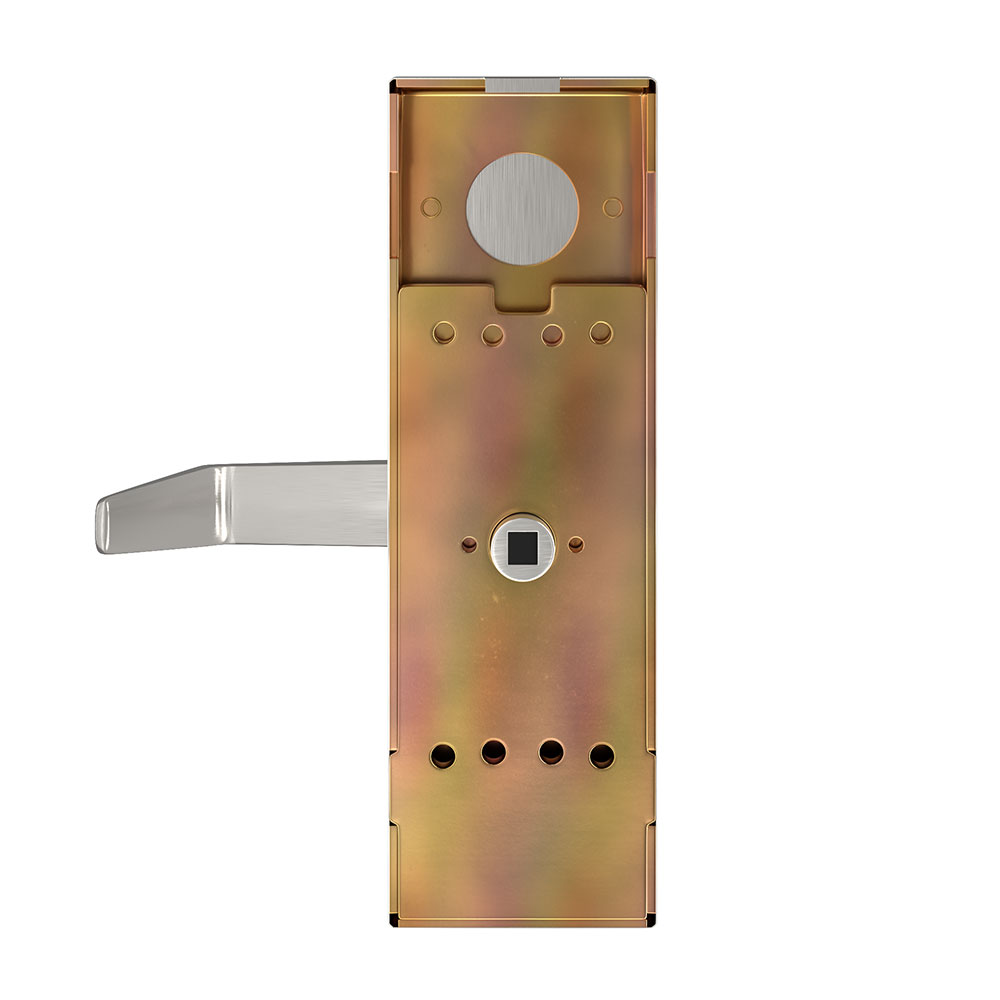

- Steel, zinc dichromated chassis, stainless steel exterior housing
- Thru-bolts to exit device for added strength
- 5″ solid stainless steel lever, 2-7/8″ total projection
- Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
- 1-3/4″ door thickness standard
- Includes thru bolt posts and 1/4″-20 machine screws for installation
Brand | |
---|---|
Finishes | US32D (630) Satin Stainless Steel |
Function | Passage |
ANSI Grade | Meets ANSI/BHMA A156.3, Grade 1 standards |
Usage | Heavy Duty |
Handing | Non-Handed, Field selected at the time of installation |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Warranty | Limited Lifetime Warranty |
