Hager 2553 WTN Entry Lever Lock

Usually Ships: 2-3 Business Days
  • Meets BHMA/ANSI A156.2 Grade 2 standards
  • ANSI function: F109 – entry
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

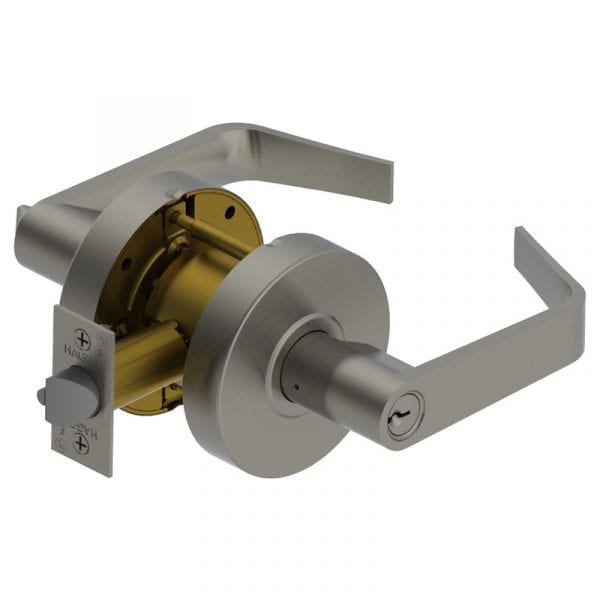

Hager 2553 Entry Lever Lock, WTH Withnell Lever Design

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2553 Entry Function (ANSI F109) – Deadlocking latchbolt by lever either side, except when turn button inside locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. Turning inside lever unlocks outside lever. Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position. Inside lever always free.

  • WTN – Withnell lever design
  • Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

BLK – Matte Black, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

Lock Function

Entry (Entrance)

ANSI Grade

Meets BHMA ANSI A156.2, Series 4000, Grade 2

Usage

Medium Duty

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Lever Design

WTN (Withnell)

Handing

Non-Handed

Fire Rating

UL/cUL listed up to 3 Hours

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 Year
