Hager 2540 WTN Privacy Lever Lock

Usually Ships: 2-3 Business Days

Meets BHMA/ANSI A156.2 Grade 2 standards
ANSI function: F76A – privacy
ADA compliant, 3-hour fire-rated

Available Options:

Finish

Clear

Quantity:

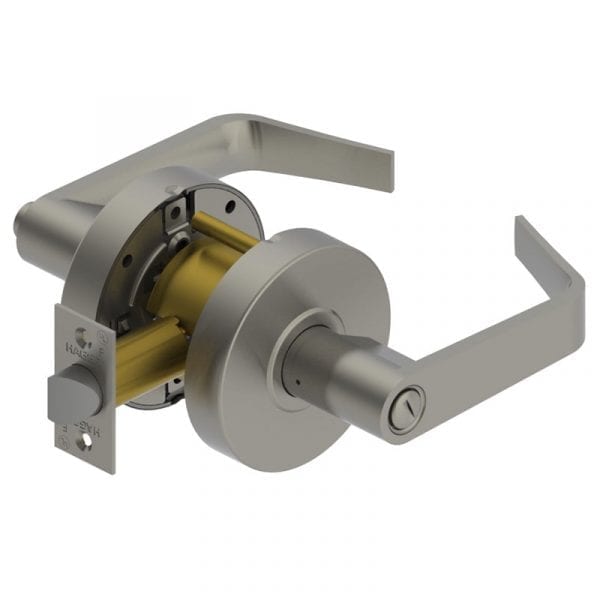

Hager 2540 Privacy Lever Lock, WTH Withnell Lever Design

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2540 Privacy Function (ANSI F76A) – Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, operating inside lever or closing door.

WTN – Withnell lever design
Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
No exposed mounting screws

Brand	Hager
Finishes	BLK – Matte Black, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome
Lock Function	Privacy
ANSI Grade	Meets BHMA ANSI A156.2, Series 4000, Grade 2
Usage	Medium Duty
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fire Rating	UL/cUL listed up to 3 Hours
Handing	Non-Handed
Latch	1/2" throw – 1-1/8" x 2-1/4" face
Door Thickness	1-3/8" to 1-3/4"
Lever Design	WTN (Withnell)
Warranty	5 Year
