Pemko X25M Series Extra Heavy Duty Full Mortise Continuous Gear Hinge for 2-1/2″ Thick Door

Usually Ships: 5-10 Business Days
  • Designed for 2-1/2″ thick doors
  • Ideal for door applications with electrical modifications
  • ANSI/BHMA Standard A156.26

Available Options:
Clear

Product Overview

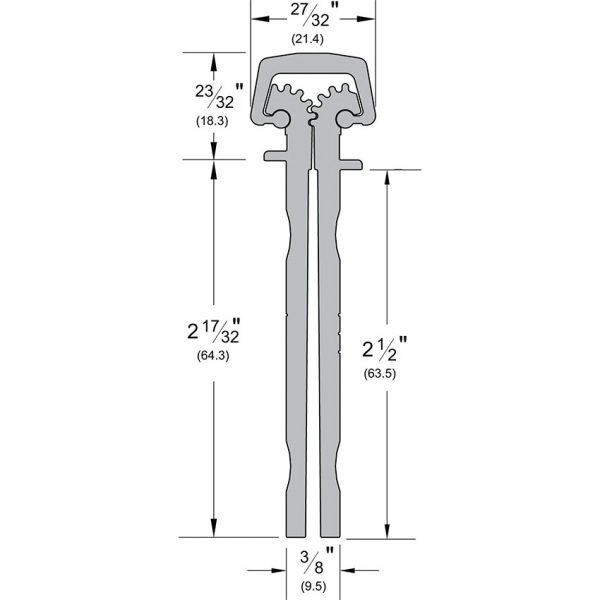

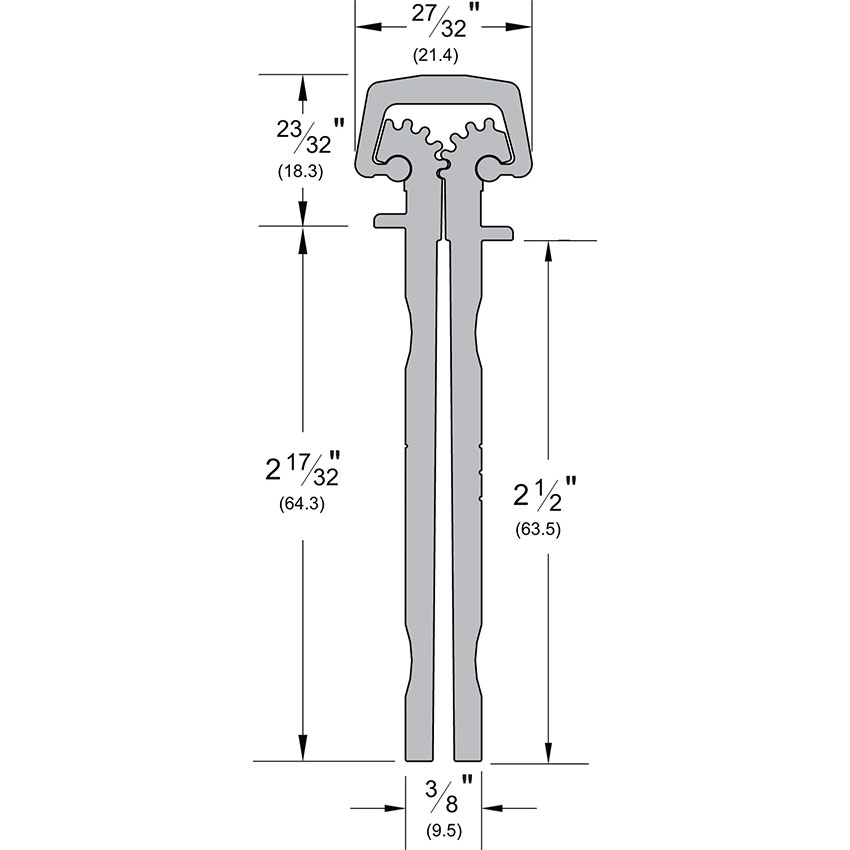

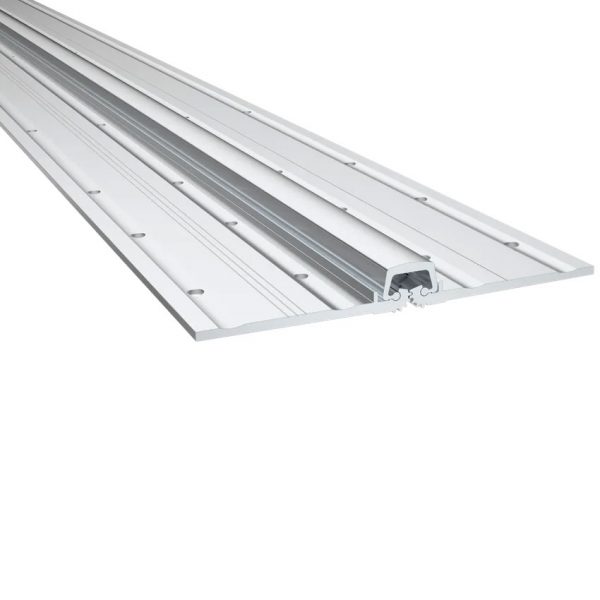

Pemko X25M Series Extra Heavy Duty Full Mortise Continuous Gear Hinge for 2-1/2″ Thick Door

The X25M Series Continuous Geared Hinge is, designed specifically for 2-1/2″ thick doors, and features thicker leaves than a traditional continuous hinge. This versatile hinge is ideal for new door installations with electrical modifications as it allows for a deeper cavity for electrical wires.

Features

  • Extra heavy duty
  • Designed for door applications with electrical modifications
  • For use with 2-1/2″ thick doors
  • Applied to conceal both leaves for safety and security
  • Custom lengths available
  • Certain door and frame conditions may require an extra 1/32″-1/16″ clearance
  • Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80

Benefits

  • Distributes door weight evenly, extending life of door
  • Makes the door operate smoothly
  • Electrical wiring is concealed to prevent tampering
  • Hollow metal door and frame manufacturers’ standard is acceptable
  • Special hinge reinforcements are not required

Certifications

  • Health Product Declaration (HPD)
  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • ANSI/BHMA Standard A156.26
Brand

Continuous Hinge Type

Full Mortise (Concealed)
Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum
Length

84", 96"
Material

Aluminum
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1
Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
Door Applications

Metal or Wood Doors
Door Thickness

2-1/2"
Warranty

10 Years
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
