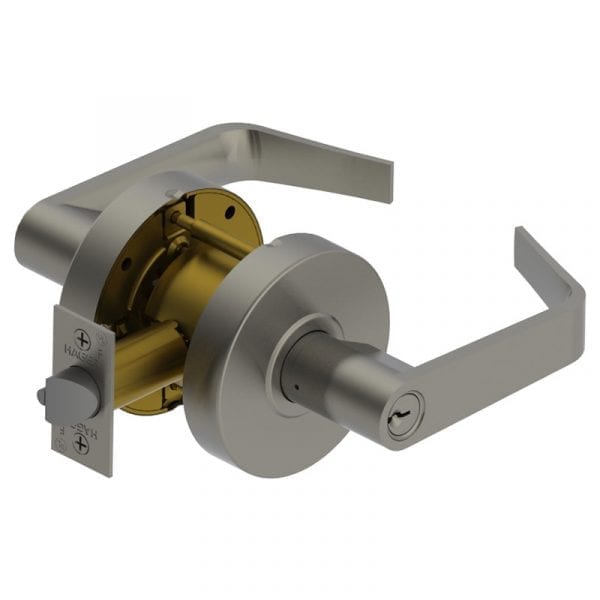

Hager 2580 WTN Storeroom Lever Lock

Usually Ships: 2-3 Business Days
  • Meets BHMA/ANSI A156.2 Grade 2 standards
  • ANSI function: F86 – storeroom
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Hager 2580 Storeroom Lever Lock, WTH Withnell Lever Design

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2580 Storeroom Function (ANSI F86) – Deadlocking latchbolt operated by key in outside lever, or by operating inside lever. Outside lever is always locked. Inside lever is always unlocked.

  • WTN – Withnell lever design
  • Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

BLK – Matte Black, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

Lock Function

Storeroom

ANSI Grade

Meets BHMA ANSI A156.2, Series 4000, Grade 2

Usage

Medium Duty

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

WTN (Withnell)

Handing

Non-Handed

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 Year
