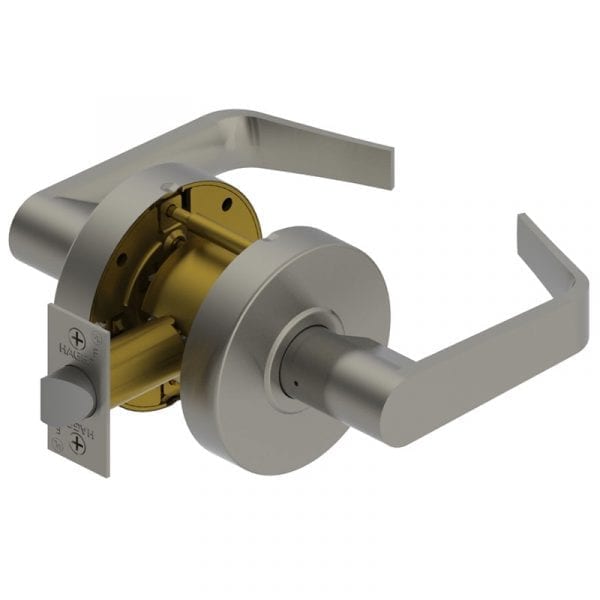

Hager 2510 WTN Passage Lever Set

Usually Ships: 2-3 Business Days
  • Meets BHMA/ANSI A156.2 Grade 2 standards
  • ANSI function: F75 – passage
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Hager 2510 Passage Lever, WTH Withnell Lever Design

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications.

Hager 2510 Passage Function (ANSI F75) – Latchbolt operated by lever from either side at all times.

  • WTN – Withnell lever design
  • Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

BLK – Matte Black, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

Lock Function

Passage

ANSI Grade

Meets BHMA ANSI A156.2, Series 4000, Grade 2

Usage

Medium Duty

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours

Handing

Non-Handed

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Door Thickness

1-3/8" to 1-3/4"

Lever Design

WTN (Withnell)

Warranty

5 Year
