Product Overview

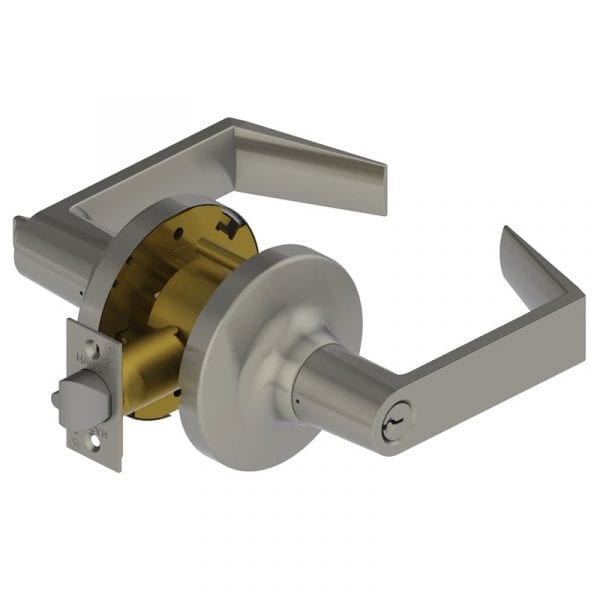

Hager 3453 Entry Lever Lock, WTH Withnell Lever Design
Hager 3400 Series Grade 1 lock is designed and engineered to withstand the most abusive commercial, industrial, and institutional environments.
Hager 3453 Entry Function (ANSI F109) – Deadlocking latchbolt by lever either side, except when turn button inside locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. Turning inside lever unlocks outside lever. Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position. Inside lever always free.
- WTN – Withnell lever design
- Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
- No exposed mounting screws
Brand | |
---|---|
Finishes | BLK – Matte Black, US26D (626) Satin Chrome |
Lock Function | Entry (Entrance) |
ANSI Grade | BHMA Certified ANSI A156.2, Series 4000, Grade 1 |
Usage | Heavy Duty |
Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
Keyway | Schlage C Keyway |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Backset | 2-3/4" |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Lever Design | WTN (Withnell) |
Handing | Non-Handed |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | UL/cUL listed up to 3 Hours |
Door Thickness | 1-3/8" to 1-3/4" |
Warranty | Limited Lifetime Warranty |
