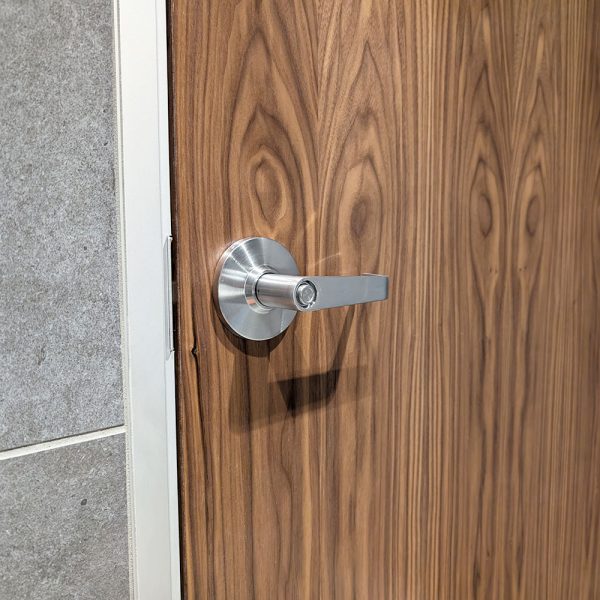

Trudoor CL2-76 Privacy Lever Lock

Usually Ships: Same Day
  • Meets & exceeds ANSI Grade 2 standards
  • Bath/privacy function, push button locking
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

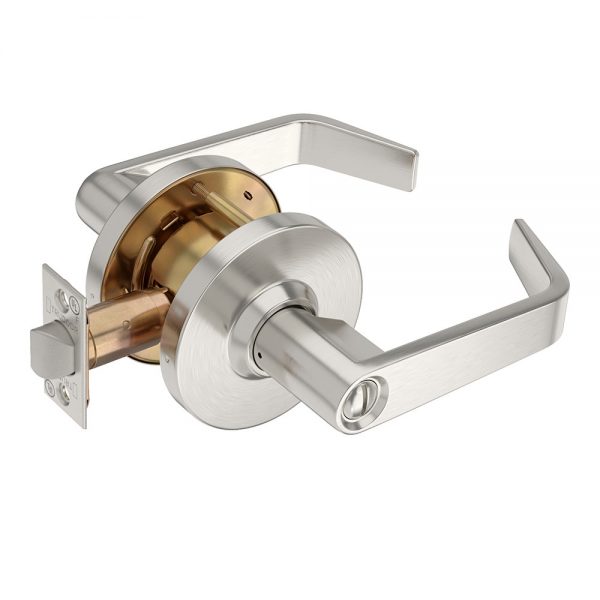

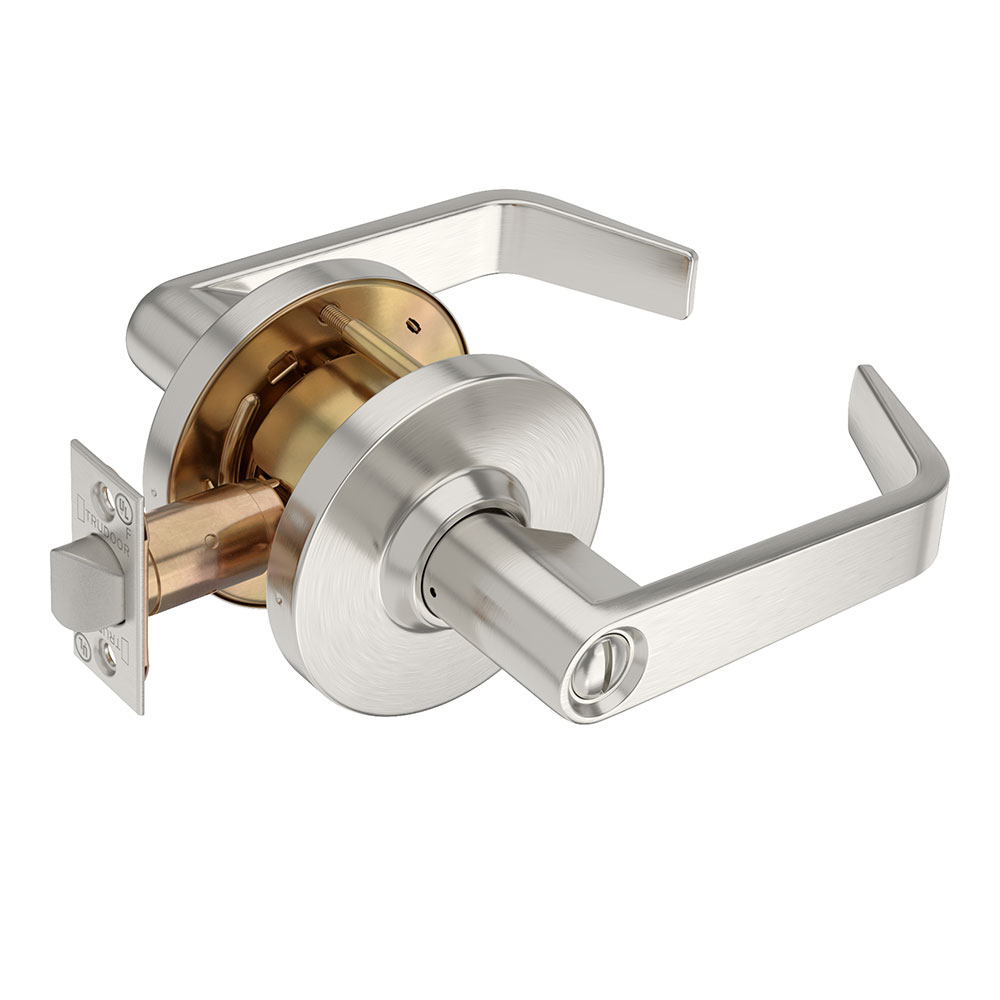

Trudoor CL2-76, CL2 Series Grade-2 Cylindrical Lever Lock, Privacy Function

Trudoor® CL2 Series cylindrical locks are an ideal choice for a wide variety of medium-duty commercial applications where consistent reliability and easy installation are required at an economical price. CL2 locks are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality and other commercial or industrial buildings.

  • Quality construction and reliability at an affordable price
  • Anti-sag mechanism with independent lever return springs to prevent sag
  • Non-handed and reversible for easy installation
  • Optional thru-bolts for added strength
  • 626 Satin Chrome or 622 Matte Black finish
  • 2-3/4″ backset latch and ASA strike standard (2-3/8″ backset, t-strike, and full lip strike available in lock parts and accessories)

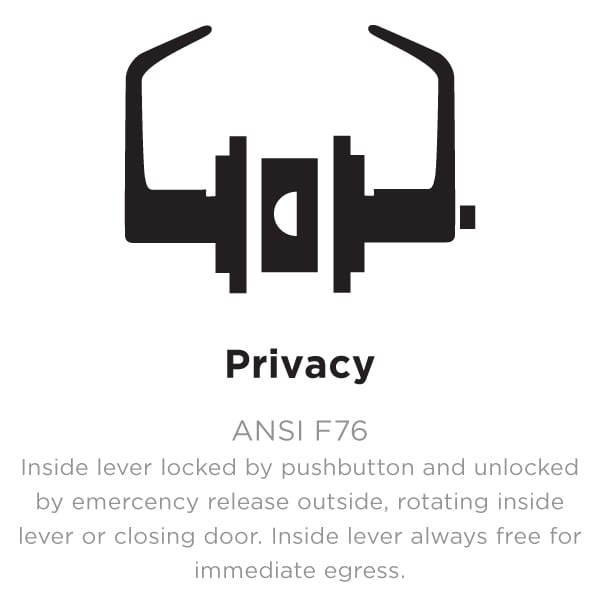

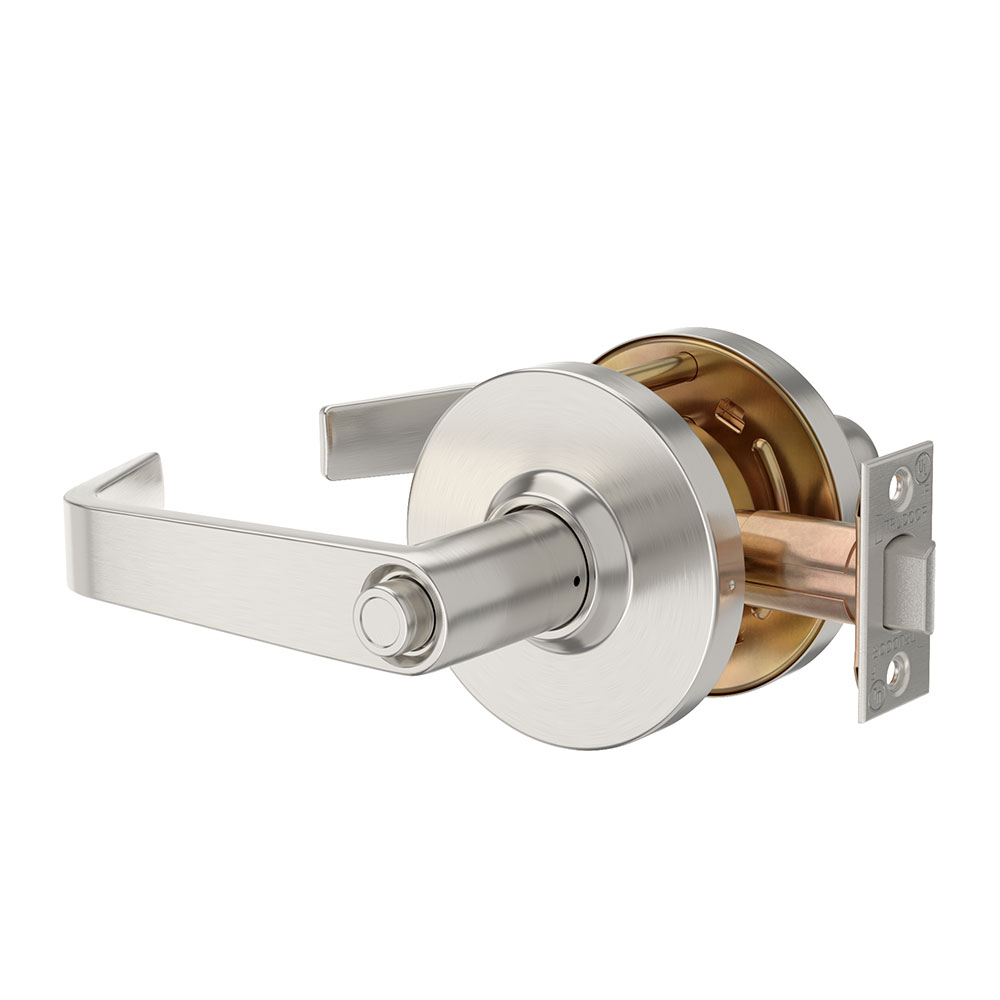

Privacy Function, ANSI F76 – Inside lever locked by pushbutton and unlocked by emergency release outside, rotating inside lever or closing door. Inside lever always free for immediate egress.

Code Compliance

  • Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
  • UL Listed for “A” Label 3 Hour Fire-Rated Doors
  • Meets ADA and ANSI A117.1 Accessibility Codes
  • Meets California code for 1/2″ lever return to door face

Cross Reference

The CL2-76 can be specified as a substitute and/or replacement for: Arrow MLX72-SB / RL02, Cal-Royal SL20 / XP20, Corbin Russwin CL3820, Design Hardware J-76-F, Dorma CL740, Falcon B301 / W301, Hager 3540, Marks 175L, PDQ SD176 / GP176, Sargent 65U65 / 7U65, Schlage AL40S / ALX40,  Stanley QCL240, Yale 5302LN / 4602LN

Brand

Finishes

622 Matte Black, US26D (626) Satin Chrome

Lock Function

Privacy

ANSI Grade

Meets & exceeds ANSI – A156.2, Series 4000, Grade 2 standards

Usage

Medium Duty

Backset

2-3/4" Standard, 2-3/8" Optional

Latch

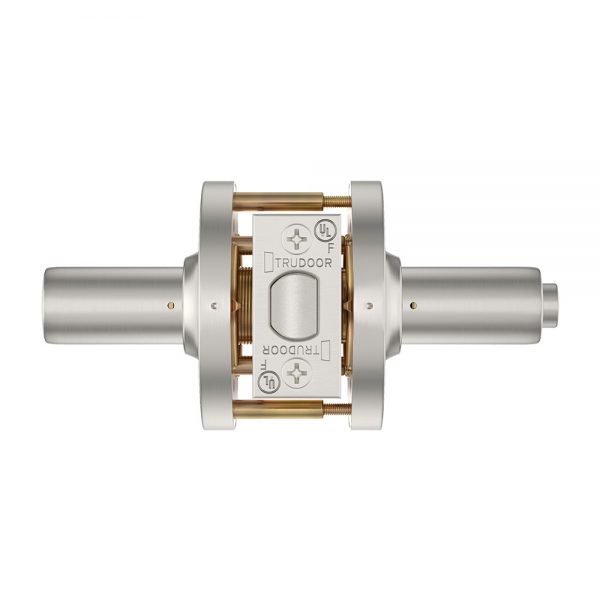

2-3/4" Backset: 1/2" throw – 1-1/8" x 2-1/4" face or 2-3/8" Backset: 1/2" throw – 1" x 2-1/4" face

Strike

Standard: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike

Handing

Non Handed – Completely Reversible

Chassis

Steel, zinc dichromated for corrosion resistance

Trim

5” solid zinc die-cast levers, 3-3/8” wrought brass roses

Fasteners

Combination screws for wood or metal doors & frames

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors

Door Thickness

1-3/8" to 1-3/4"

Door Applications

Interior or Exterior Hollow Metal Doors and Wood Doors

Warranty

Limited Lifetime Warranty
