Dormakaba 8616 AF86P FC Door Closer with Full Cover

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade 1 Certified
  • Adjustable Spring Size 1-6
  • Regular, Top Jamb, or Parallel Arm Mount

Available Options:

Dorma 8616 AF86P Flat Form Complete Surface Closer, Non-Hold Open, Tri-Pack, Full Cover

The 8600 door closer series is a non-handed surface applied door closer with adjustable spring power and backcheck positioning adjustment. It provides the flexibility needed to meet the many demands of commercial and institutional applications, including ADA barrier-free accessibility requirements.

  • 8616-AF86P-FC-SNB1
  • Flat Form Non-Hold Open, Tri-Pack – Full Cover
  • Adjustable spring sizes and power
  • Meets barrier-free requirements
  • Adjustable backcheck
  • Corrosion-resistant aluminum body
  • Backed by 25 year warranty

Modern aesthetics
The modern slim cover, flat form arm, and architectural finishes provide the aesthetic qualities required of architectural-grade closers.

Applications
The 8600 Series is designed to provide a highly flexible door control system suitable for use on all hollow metal, aluminum, and wood doors typically used in commercial construction.

Controlled opening with backcheck feature
The 8600 Series door closer features a backcheck positioning adjustment for parallel arm applications, to maintain an ANSI backcheck range similar to regular and top jamb applications.

Barrier-free
This door closer series, with it’s adjustable spring size 1-6, also meets barrier-free accessibility requirements.

Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)

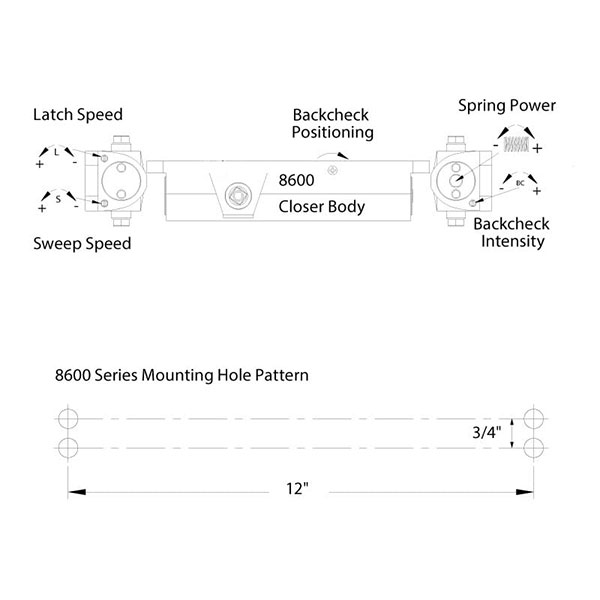

Templating (Hole Pattern)

3/4" x 12"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Handing

Non-Handed

Spring Size

Adjustable Spring Size 1-6

Body Construction

Cast Aluminum Body

Usage

Medium Duty

ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL and CUL listed – Meets UL10C for positive pressure

Cover

Full Cover

Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard

Warranty

25 Year
