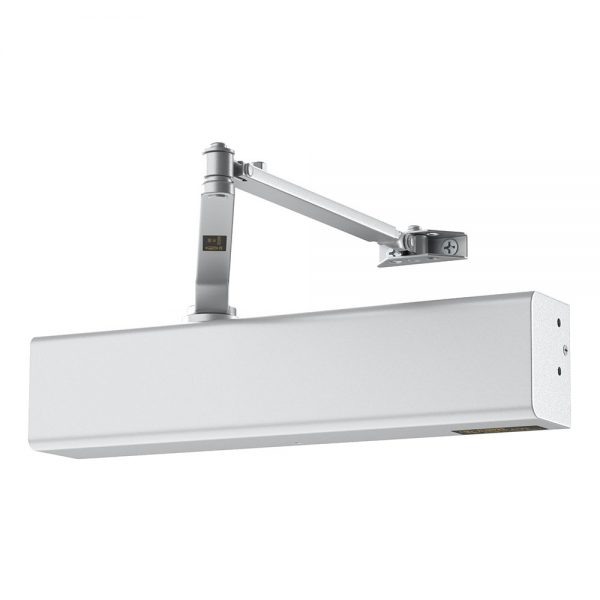

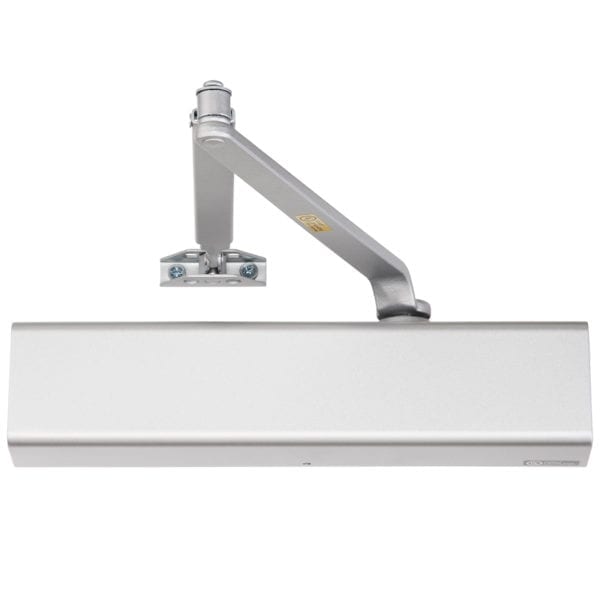

Trudoor TDC-300 Grade-1 Door Closer

$75.00

Usually Ships: Same Day
  • Medium to Heavy-Duty – Grade 1
  • Fully Adjustable Spring Power – Size 1 to 6

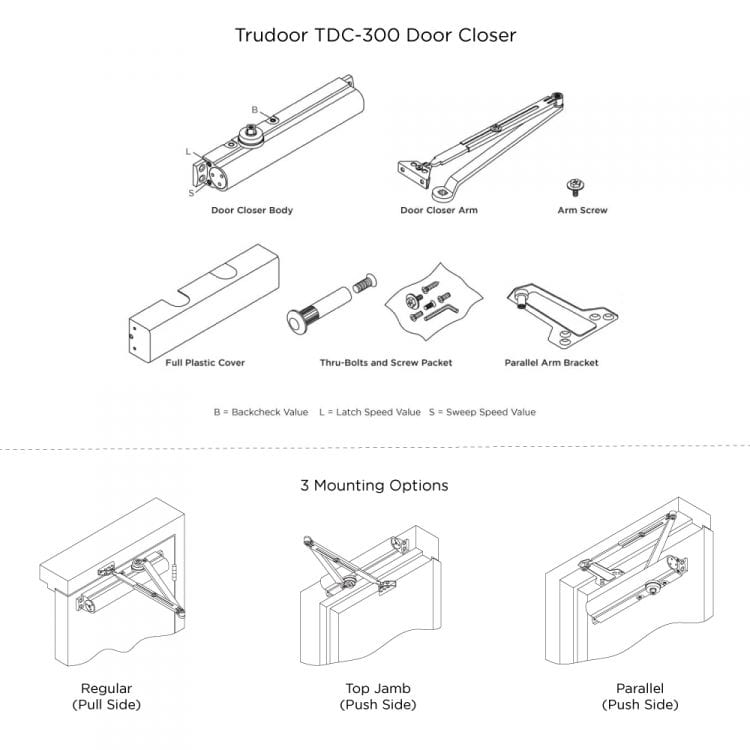

  • Tri-Packed for Regular, Top Jamb and Parallel Arm Installations

Trudoor® TDC-300 door closers are an ideal choice for a wide variety of medium to heavy-duty commercial applications where durability, reliability, and code compliance are required at an economical price. These surface-mount hydraulic door closers are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial buildings.

  • Quality construction and reliability at an affordable price

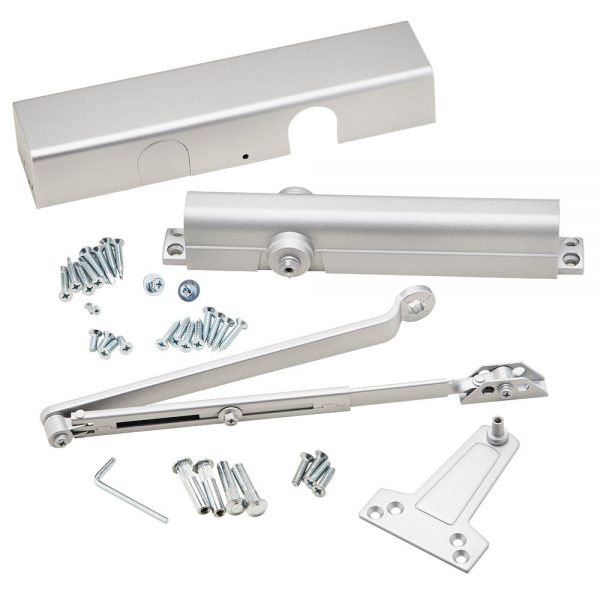

  • Includes screws and brackets for regular, top jamb and parallel arm installations
  • Adjustable spring power from Size 1 to 6 – preset to size 3

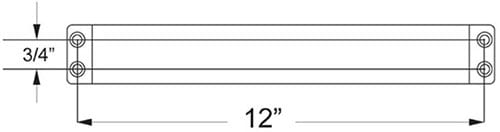

  • Featuring the industry’s most common hole pattern: 3/4″ vertical x 12″ horizontal
  • Parts and accessories such as hold open arms and drop plates available.

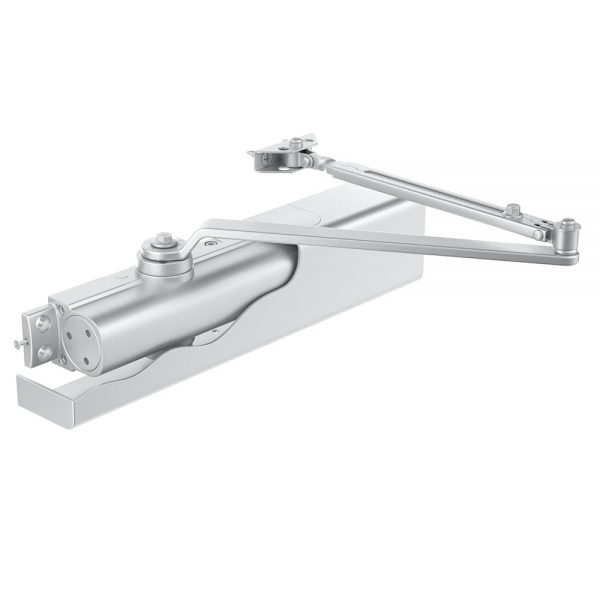

  • Heavy-duty cast aluminum closer body, rack & pinion construction
  • Slim 2-1/8” projection with cover installed
  • AL/689 Aluminum Finish

Code Compliance

  • Meets ANSI A156.4 – Grade 1 Standards
  • UL Listed for “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
  • Meets ADA and ANSI A117.1 Accessibility Codes

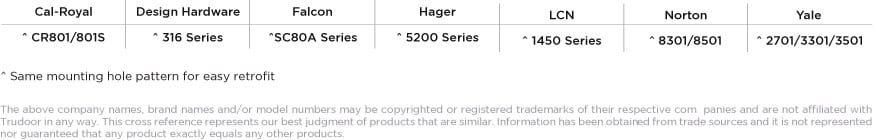

Cross Reference

The TDC-300 can be specified as a substitute and/or a direct replacement (shares the same hole pattern) for: Arrow 5016N, Cal-Royal CR801, Calibre CA5500, Design Hardware 316, Doormerica DC851, Dorma 8616, Falcon SC81A, Global TC400/TC500, Hager 5200, International 5000, LCN 1450, Norton 8301/8501, Sargent 1331, Stanley QDC211, Tell 800 and Yale 2701/3301/3501

trudoor-tdc-300-cross-reference

trudoor-tdc300-door-closer-hole-spacing-pattern

Brand

Finishes

689 Aluminum

Templating (Hole Pattern)

3/4" x 12"

Mounting Options

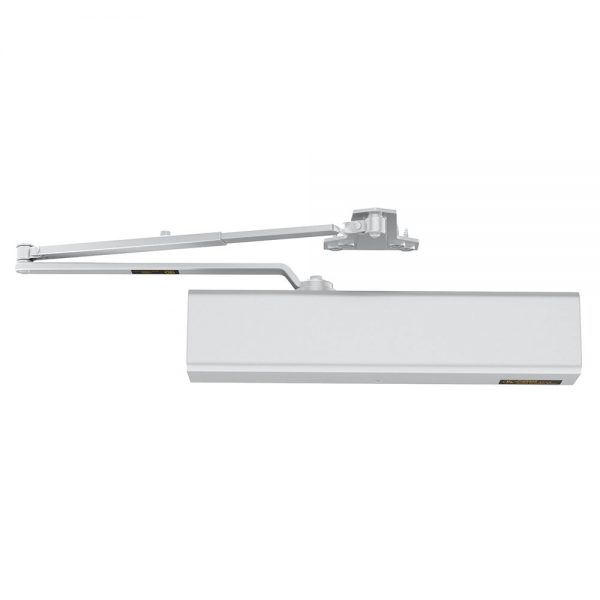

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Usage

Medium Duty

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non Handed – Completely Reversible

Speed Control

Independent latch & sweep speed controls

Backcheck

Back check intensity control standard

Valves

Staked valves to prevent backing valves out too far

Piston, Spindle, Spring

Heat treated heavy-duty steel piston, spindle and spring

Cover

Full Cover

Min. Top Rail

Regular: 3-1/2” – Top Jamb: 2-1/4” – Parallel Arm: 5-1/4”

Fasteners

Thru bolts with machine screws, wood screws & Self tapping machine screws

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL Listed for “A” Label 3 hour fire doors, UL10C positive pressure rated

Warranty

Limited Lifetime Warranty
