LCN 1450 Rw/PA Door Closer

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.4, Grade 1 certified
  • Adjustable spring size 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:

Clear

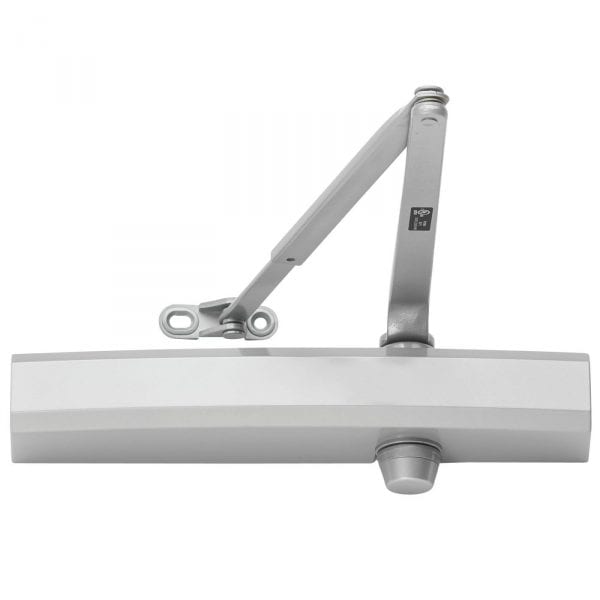

LCN 1450 RWPA Grade-1 Door Closer, Regular Arm with Parallel Bracket, Size 1-6

The LCN 1450 Series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently-used, low-abusive traffic areas. Features the industry’s most common hole pattern. The 1450 Series also looks as good as it functions, with a standard slimline cover. The result is a great look with a long list of valuable features — plus LCN quality, engineering, and service — all at a competitive price.

  • Designed for commercial and institutional applications
  • Non-sized (1-6) cylinder is adjustable for interior doors to 5’0″ wide and exterior doors to 4’0″ wide

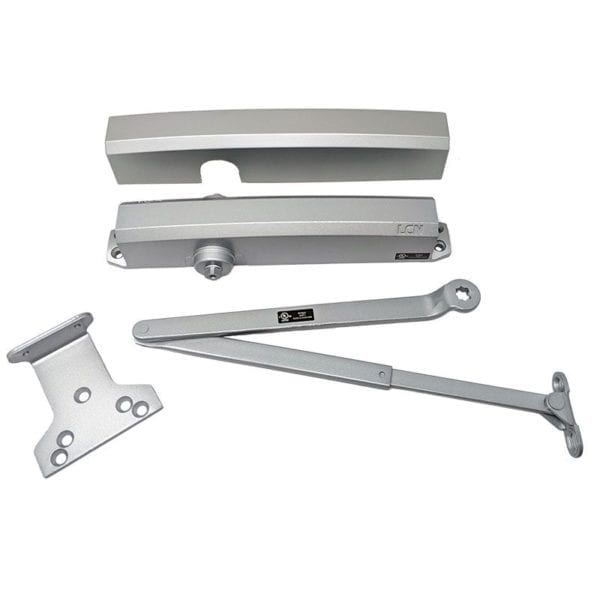

  • Standard Tri-Pack includes arms for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Peel-n-Stick Templates for easy installation – 3/4″ x 12″ Mounting Hole Pattern
  • Standard slimline cover, optional full cover

codes





Finishes:

  • AL, BHMA 689 – Aluminum
  • DKBRZ, BHMA 695 – Dark Bronze
  • BLK, BHMA 693 – Black
  • BRASS, BHMA 696 – Brass
  • LTBRZ, BHMA 691 – Light Bronze

Models: 1450.CYL.RWPA.689.SLIMPC.UNIV, 1450.CYL.RWPA.689.FPC.UNIV, 1450.CYL.RWPA.695.SLIMPC.UNIV, 1450.CYL.RWPA.695.FPC.UNIV, 1450.CYL.RWPA.693.SLIMPC.UNIV, 1450.CYL.RWPA.693.FPC.UNIV, 1450.CYL.RWPA.696.SLIMPC.UNIV, 1450.CYL.RWPA.696.FPC.UNIV, 1450.CYL.RWPA.691.SLIMPC.UNIV, 1450.CYL.RWPA.691.FPC.UNIV

Brand

Templating (Hole Pattern)

3/4" x 12"

Usage

Medium Duty

Finishes

689 Aluminum, 691 Light Bronze, 693 Black, 695 Dark Bronze, 696 Brass

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Fluid

All Weather Fluid

Handing

Non-Handed

Door Application

Hollow Metal, Wood or Aluminum

Certifications

Tested and certified under ANSI Standard A156.4 – Grade-1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL and cUL Listed – up to 3 Hours

Cover

Slim Cover Standard (Full Cover Optional)

Fasteners

Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Warranty

25 Years
