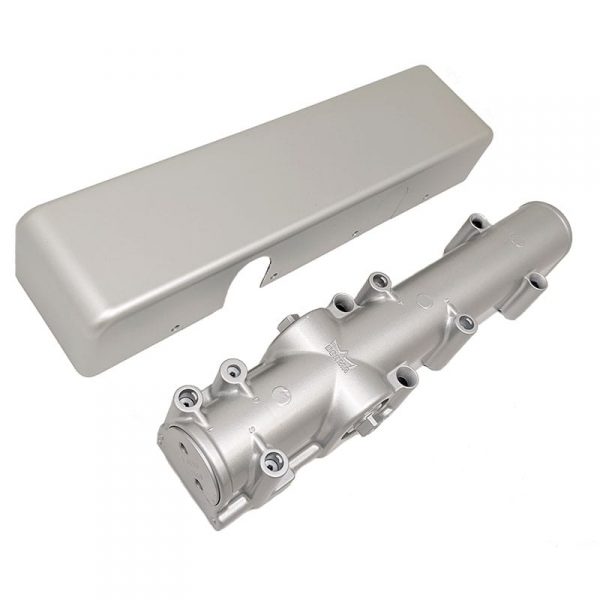

Dormakaba 8916 AF89P Door Closer

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1 Certified
  • Adjustable Spring Size 1-6
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Product Overview

Dorma 8916 AF89P Heavy-Duty Surface Closer, Parallel Flat Form Complete, Non-Hold Open, Tri-Pack, Full Cover

The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flatform style arm.

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

  • 8916 AF89P FC SNB1
  • Non-Hold Open, Tri-Pack – Full Cover
  • Long term performance
  • Adjustable spring sizes and power
  • Meets barrier-free requirements
  • Adjustable backcheck
  • Corrosion-resistant aluminum body
  • Backed by 25 year warranty

Controlled opening with backcheck feature

The 8900 Series hydraulic backcheck feature protects doors and their adjacent structures. It’s valve adjustment regulates backcheck intensity. In addition, a backcheck positioning adjustment for parallel arm applications provides a consistent range similar to regular and top jamb applications.

Long term performance

The 8900 Series heavy-duty, 10 million cycle closers represent the latest in door control technology, combining over a quarter century of proven performance with its hydraulic control system and modern architecturally styled aesthetics. It results in the perfect combination of durability, reliability, and appearance.

Barrier-free

The 8900 Series, with the fully adjustable spring, also meets barrier-free accessibility requirements.

Brand

Finishes

689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)
Templating (Hole Pattern)

2-1/8" x 5"
Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
Handing

Non-Handed
Spring Size

Adjustable Spring Size 1-6
Body Construction

Cast Aluminum Body
Usage

Heavy Duty
ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL and CUL listed – Meets UL10C for positive pressure
Cover

Full Cover
Fasteners

SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard
Warranty

25 Year
