Alarm Lock DL2700 Trilogy Digital Keypad Lock

Usually Ships: 1-2 Business Days
  • Heavy Duty Grade-1 standalone electronic lock
  • Manually programmable – up to 100 PIN codes
  • Mechanical key override (Schlage C keyway)

Available Options:


Alarm Lock DL2700 Pushbutton Cylindrical Door Lock, 100 Users, Straight Lever

Trilogy® T2 DL2700: #1 standalone electronic keyless access lock  – Durable BHMA Grade 1 digital lock.

OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress

KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced

  • Grade 1 Durability. Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
  • Ideal for schools, healthcare, pharmacies, rental properties, offices, retail and airports.
  • Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
  • Up to 100 different user codes (3-6 digits) – 100% keypad programmable with a fingertip
  • Easy to install in about an hour, retrofits cylindrical knobsets and digital locks using slightly modified ANSI 161 Series Prep

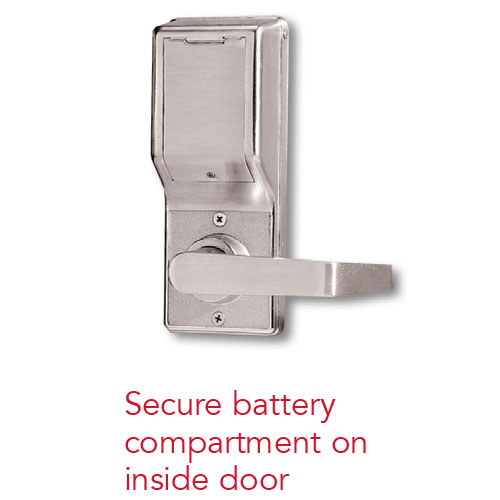

  • Standalone battery operated; 5 AA batteries rated at 200,000 cycles
  • Non-handed for easy installation and versatility


Heavy Duty


US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

Lock Function

Pushbutton Keypad

ANSI Grade

ANSI Grade 1

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys


2-3/4" standard


1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included

Door Thickness



1/2” throw, deadlocking – 1-1/8" x 2-1/4" face


Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code


5 AA alkaline batteries are now rated at 200,000 cycles, supplied

Reader Type


Door Applications

Interior Metal and Wood Doors


2 Years
