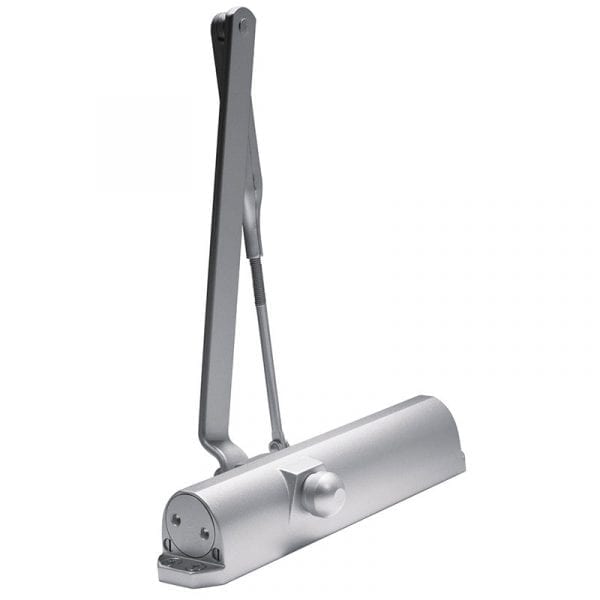

Dormakaba 7414 Door Closer, Size 1-4


Usually Ships: 2-3 Days
  • ANSI/BHMA Grade 1 Certified
  • Adjustable Spring Size 1-4
  • Regular, Top Jamb or Parallel Arm Mount

The 7400 Series door closer is featuring backcheck and adjustable spring sizes thus being the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install.

  • 7414-ARP-SNB1-689
  • 689 Aluminum finish
  • Recommended for interior doors
  • Meets 5 lb interior barrier-free applications
  • Adjustable spring sizes 1-4
  • Quick and easy to install
  • Compact design


Modern styling

The 7400 Series closers offer modern styling and versatility while providing safe and reliable door control.

Controlled opening with backcheck feature

The 7400 Series features an adjustable backcheck, which provides cushioning when the door is abusively opened.


The 7400 Series is designed to provide a highly flexible door control system suitable for use on all hollow metal, aluminum, and wood doors typically used in commercial construction.

Constant speeds

The 7400 Series closer has two independent valves to separately control sweep and latch closing speeds and provide constant speeds when temperatures change.


Templating (Hole Pattern)

3/4" x 10-1/4"



Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)



Spring Size

Adjustable Spring Size 1-4


Standard Duty

ANSI Grade

ANSI/BHMA A156.4 Grade 1 Certified

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL and CUL listed – Meets UL10C for positive pressure




SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard
