Product Overview

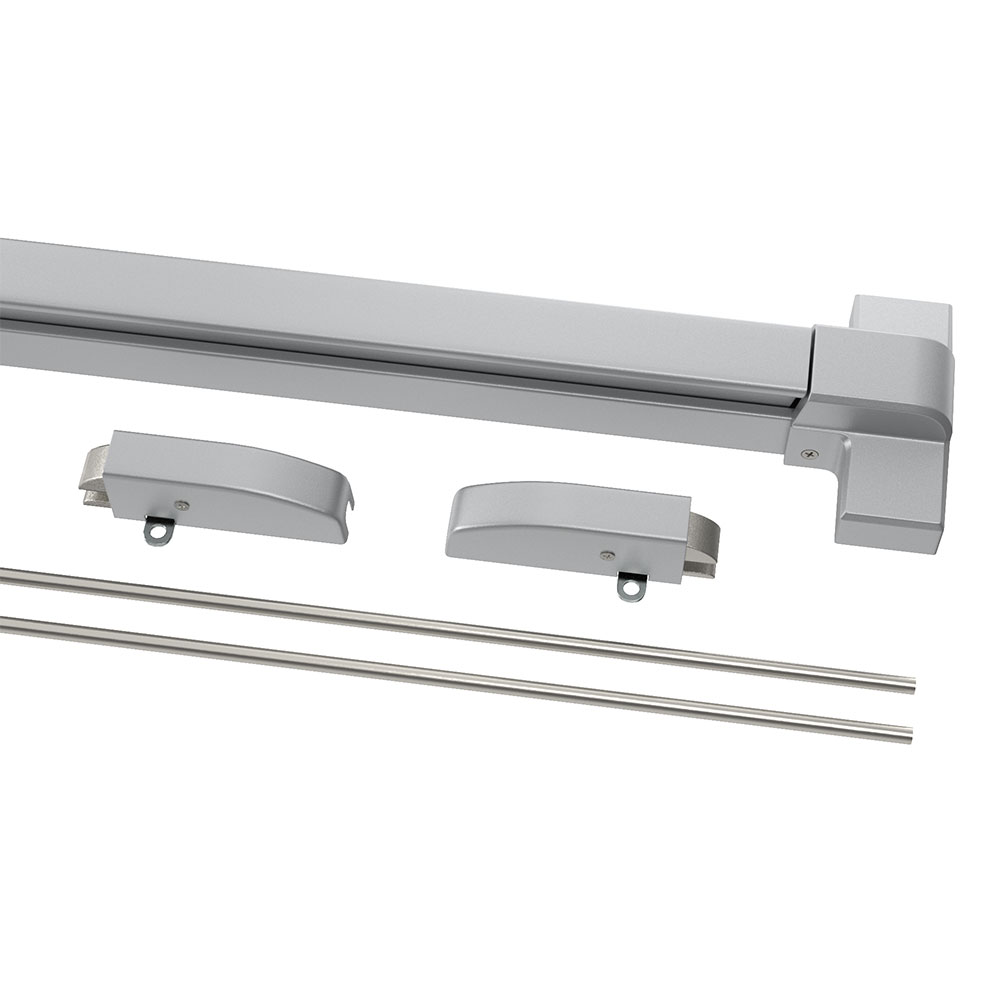

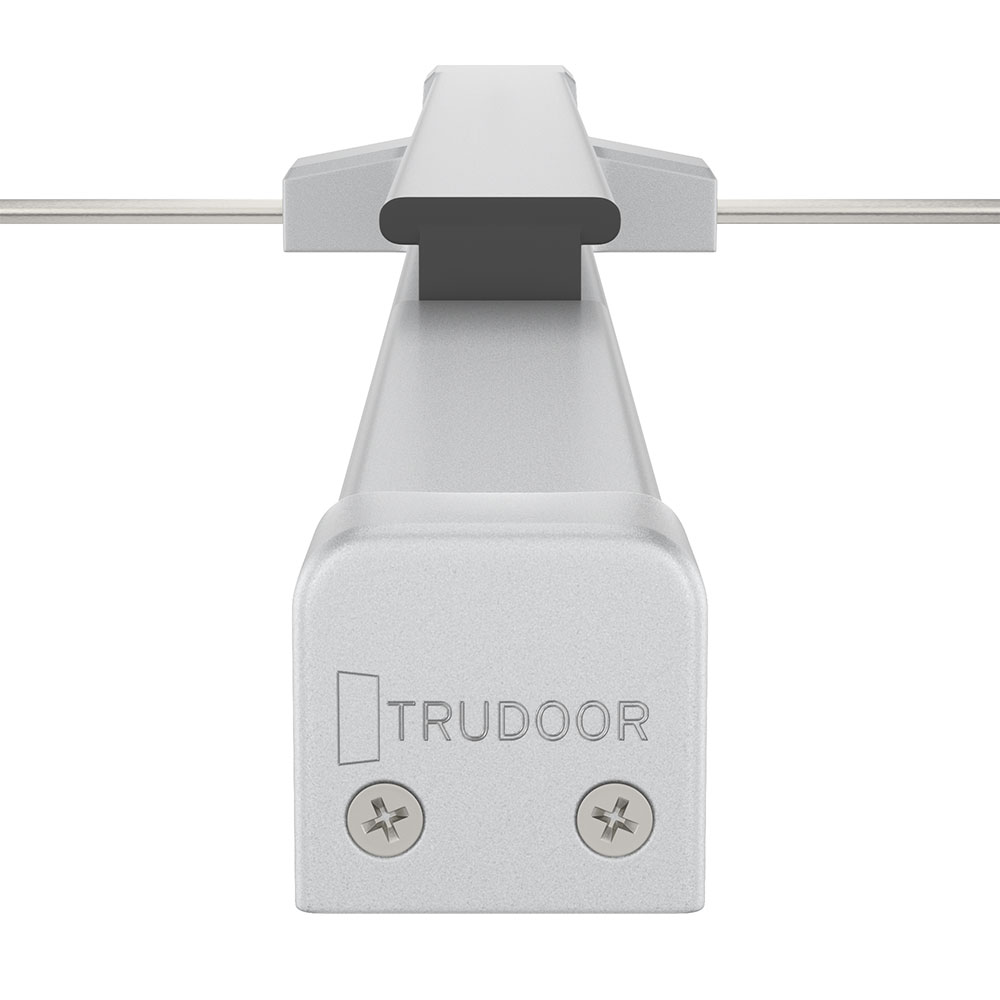

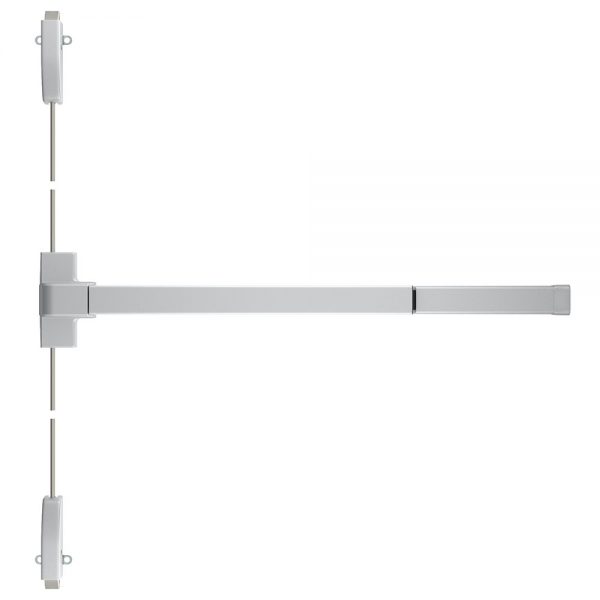

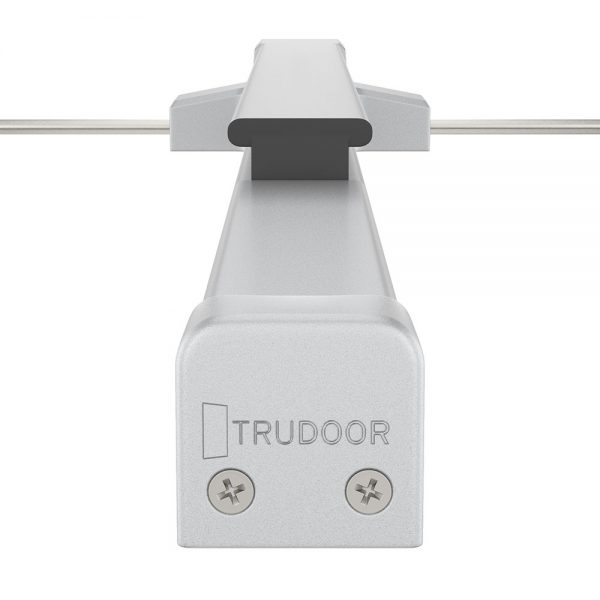

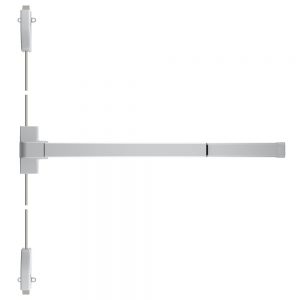

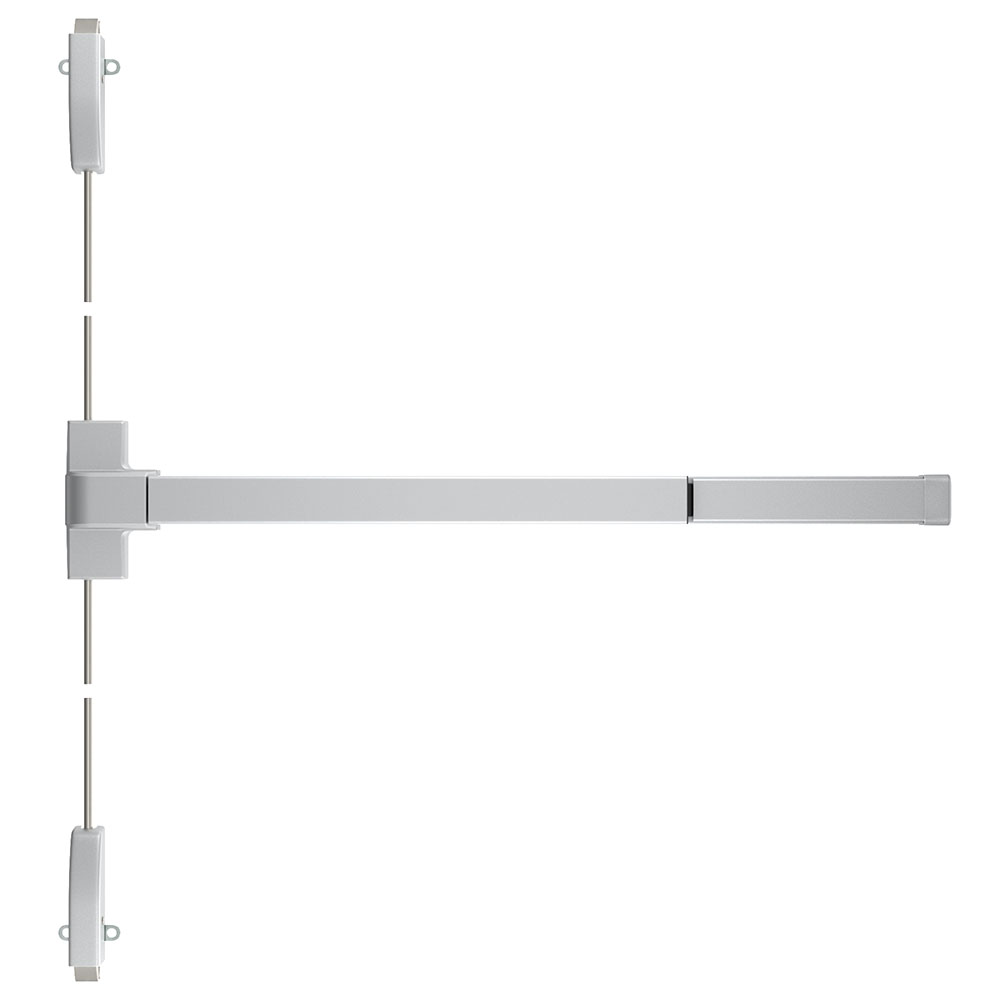

Trudoor TDE-F2000V Grade-1 Surface Vertical Rod Exit Device, Fire Rated, Exit Only
TDE-F2000V Series surface vertical rod exit devices are an ideal choice for a wide variety of standard to medium-duty commercial and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.
- Exit Only (Trudoor Exit Device Trim sold separately)
- UL Listed for Panic Exit Hardware and Fire Hardware
- Designed for medium to heavy use
- Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
- Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
Sizes
- 3’0″ x 7’0″ (for 2’4″ to 3’0″ wide door, 7’0″ height)
- 3’0″ x 8’0″ (for 2’4″ to 3’0″ wide door, 8’0″ height)
Brand | |
---|---|
Finishes | AL – Aluminum |
Size | 3'0" x 7'0", 3'0" x 8'0" |
Device Type | Surface Rod Device |
ANSI/BHMA Standard | Meets ANSI/BHMA A156.3 Grade 1 Standards |
Usage | Medium Duty |
ADA Compliance | Meets ADA requirements ANSI A117.1 with Lever Trim |
UL Listings | UL Listed for Panic Exit Hardware, Listed for “A” Label 3 Hour Fire Doors |
Fire Rating | 3 Hour UL Listed |
Trim | None – Exit Only (Outside Trim Sold Separately) |
Dogging Feature | None |
Top Latch | U shaped top latch for secure engagement with strike |
Bottom Latch | Drop bolt style bottom latch secures into flat strike and hole in the floor |
Fasteners | Wood, Machine & Self Tapping Machine Screws |
Handing | Easily Re-handed in the field – Shipped as RHR |
Stile Type | Wide (Standard) |
Minimum Stile Width | 4-1/2" |
Center Case | 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick |
Mechanism Case | 1-5/8″ Height x 1-13/16″ Wide |
Projections | 2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed) |
Warranty | Limited Lifetime Warranty |
