Trudoor TDE-2000V-EO-AL
TDE-2000V-EO
Trudoor TDE-2000V-EO-AL
TDE-2000V-EO

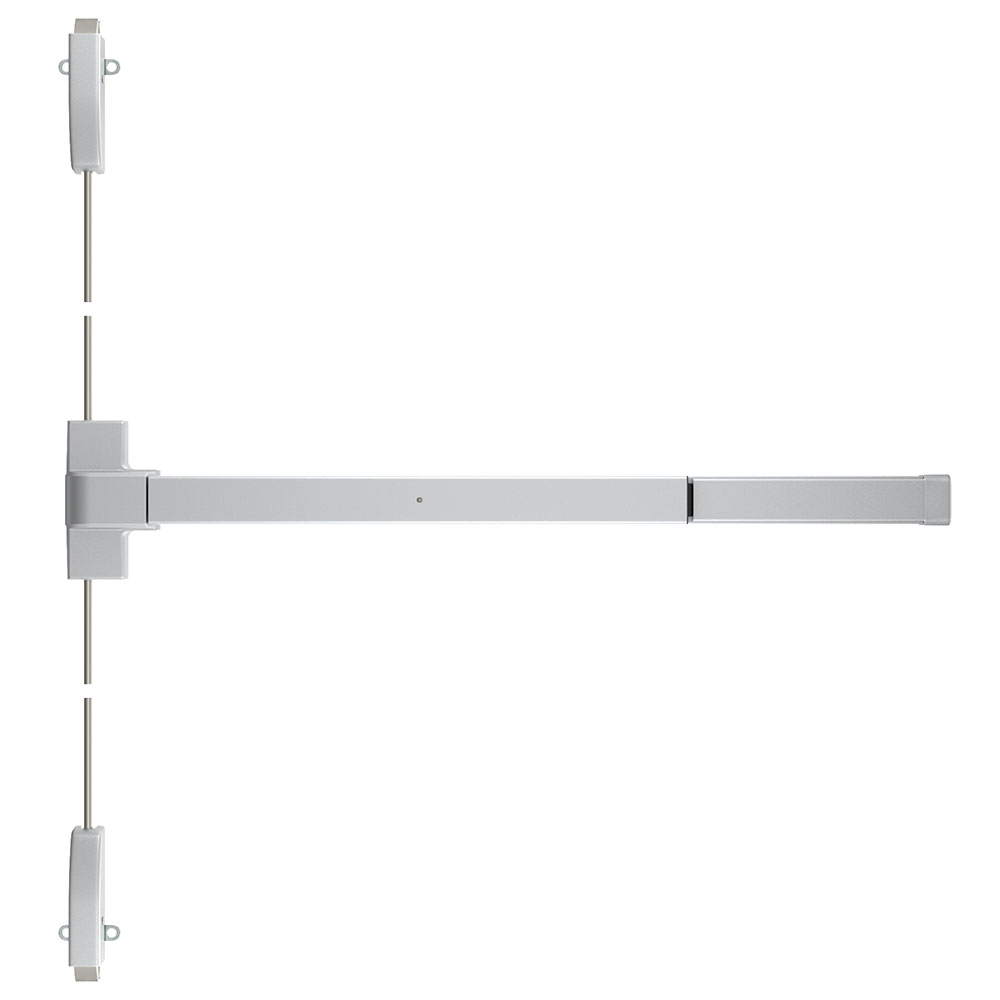

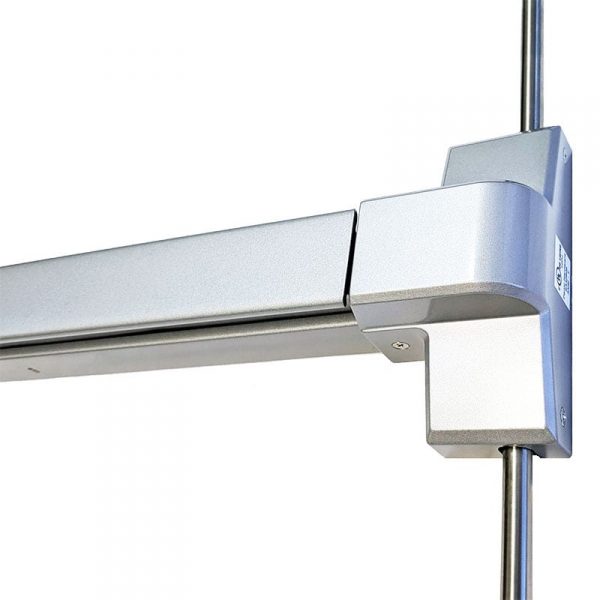

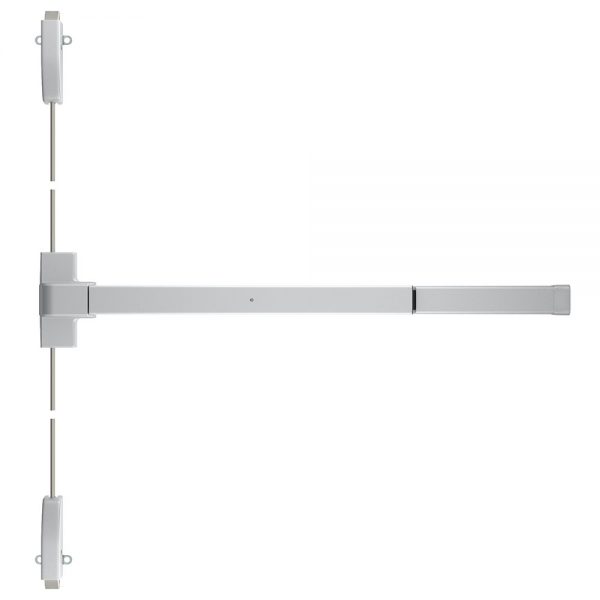

Trudoor TDE-2000V-EO Surface Vertical Rod Exit Device, Panic Rated, Exit Only

Usually Ships: Same Day
  • Meets ANSI/BHMA A156.3 Grade 1 standards
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic exit hardware

Available Options:
Clear

Product Overview

Trudoor TDE-2000V Grade-1 Surface Vertical Rod Exit Device, Panic Rated, Exit Only, 7ft Door Height

TDE-2000V Series surface vertical rod exit devices are an ideal choice for a wide variety of standard to medium-duty commercial and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • UL Listed for Panic Exit Hardware
  • Designed for medium to heavy use
  • Door heights: 7′ Standard – extended top rods available for up to 8′ tall doors
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
  • Hex key dogging standard on panic exit device

ul-listed







Cross Reference

The TDE-2000V can be specified as a substitute for: Cal-Royal 2260, Design Hardware 2000V, Dorma 8400, Falcon 19V-EO / 20V, Hager 4701SVR, PDQ 4200V, Von Duprin 2227EO , Yale 1810 / 2110

Brand

Finishes

AL – Aluminum
Length

3ft (for doors 2'4" to 3'0")
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Device Type

Surface Rod Device
ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Usage

Medium Duty
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
UL Listings

UL Listed for Panic Exit Hardware
Fire Rating

Non-Fire-Rated
Trim

None – Exit Only (Outside Trim Sold Separately)
Dogging Feature

Half turn hex dogging standard
Top Latch

U shaped top latch for secure engagement with strike
Bottom Latch

Drop bolt style bottom latch secures into flat strike and hole in the floor
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Easily Re-handed in the field – Shipped as RHR
Stile Type

Wide (Standard)
Minimum Stile Width

4-1/2"
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case

1-5/8″ Height x 1-13/16″ Wide
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Warranty

Limited Lifetime Warranty
