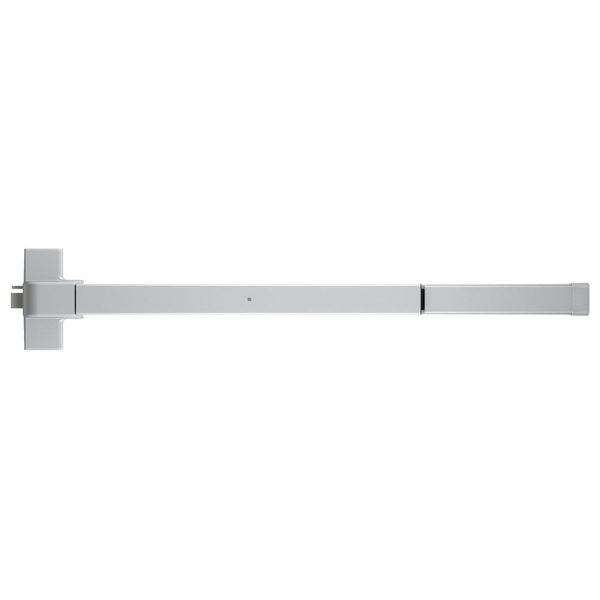

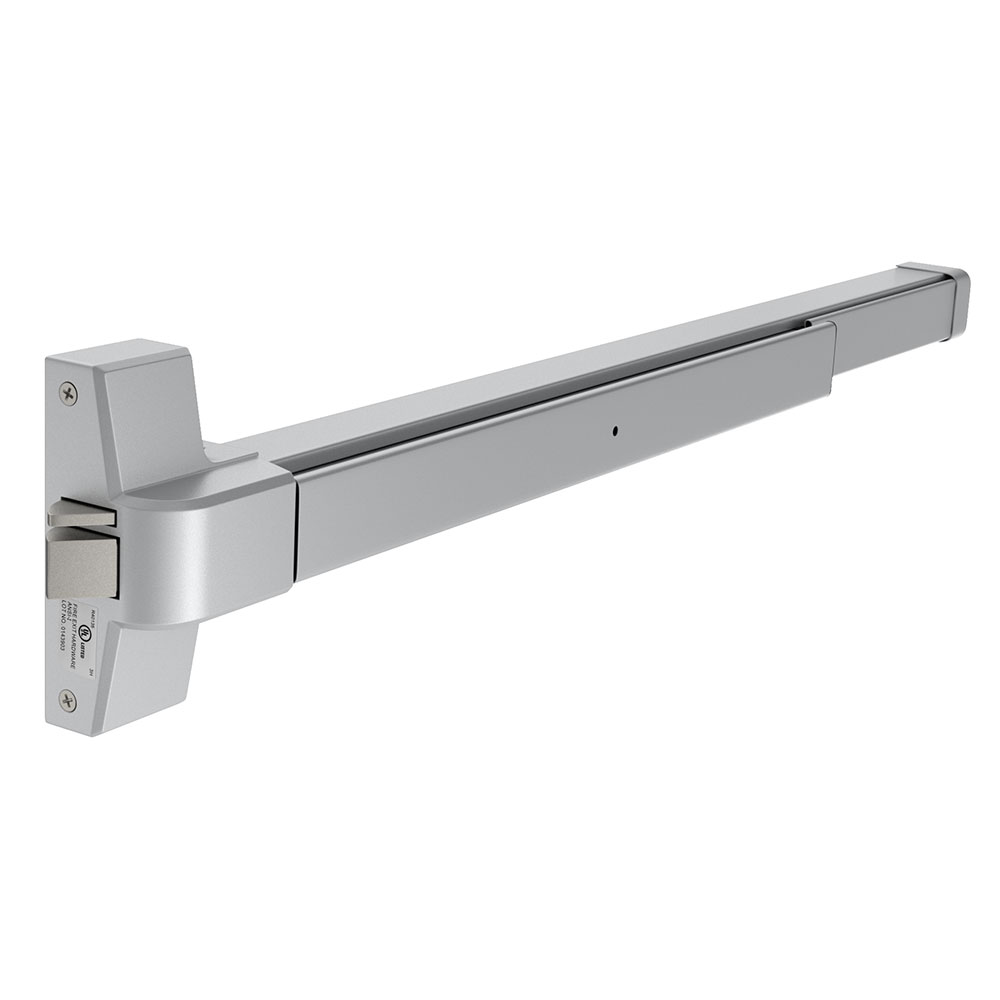

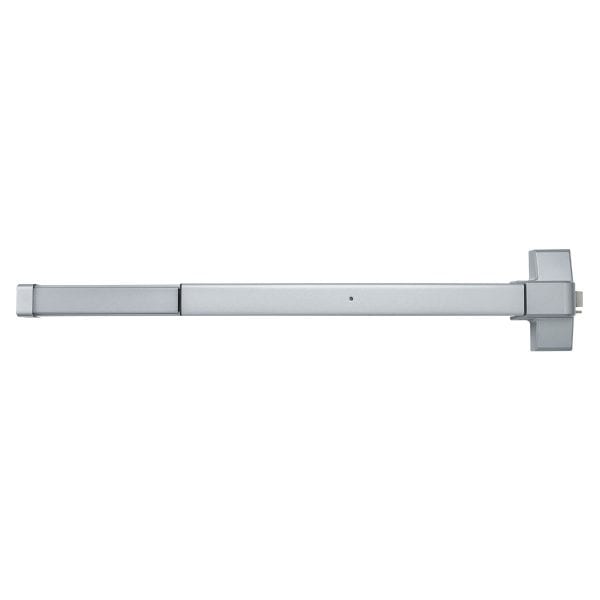

Trudoor TDE-2000R-EO Exit Only Panic Bar Rim Exit Device

Usually Ships: Same Day
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use with metal or wood doors
  • Non-handed for easy installation

Available Options:

Clear

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • TDE-2000R-EO: UL Listed for Panic Exit Hardware
  • TDE-F2000R-EO: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Exit Only (Outside Trim Sold Separately)
  • SP28/AL Painted Aluminum Finish
  • 5/32” hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

ul-listed







Cross Reference

The TDE-2000R can be specified as a substitute for: Cal-Royal 2200EO / 5000EO, Design Hardware 2000R, Dorma 8300, Falcon 19R-EO / 20R, Hager 4700, PDQ 4200, Von Duprin 22EO , Yale 1800 / 2100

Brand

Finish

Aluminum

Model

TDE-2000R Panic Device (w/ Dogging Feature), TDE-F2000R Fire-Rated Device (No Dogging)

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

UL Listings

TDE-2000R Listed for Panic Exit Hardware – TDE-F2000R Listed for “A” Label 3 Hour Fire Doors

Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed

Trim

None – Exit Only (Outside Trim Sold Separately)

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick

Mechanism Case

1-5/8″ Height x 1-13/16″ Wide

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
