Product Overview

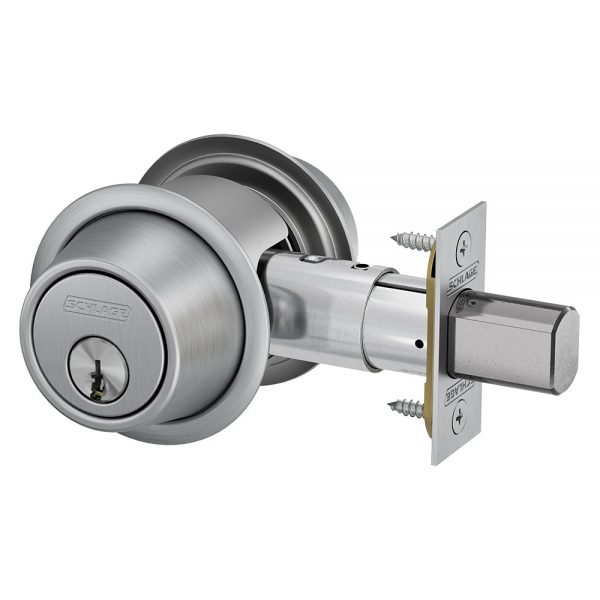

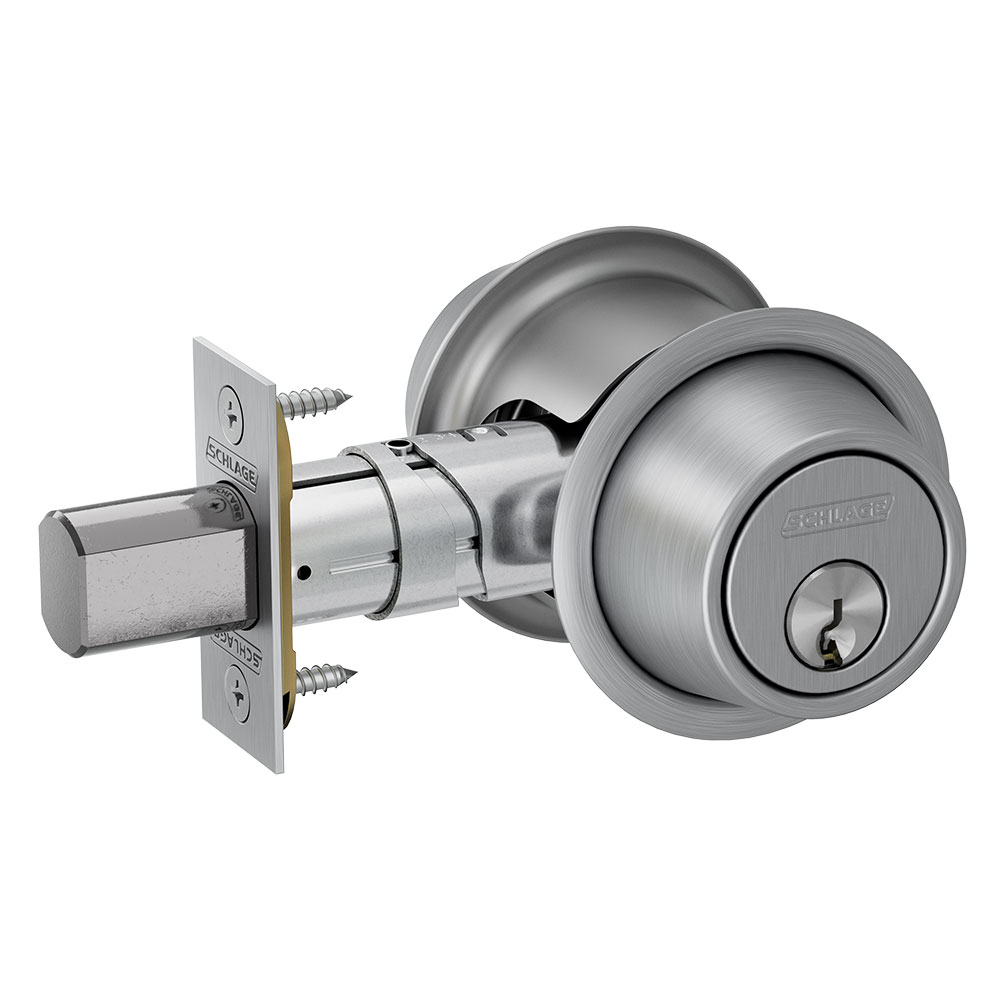

The B500 deadbolt from Schlage is one of the toughest, most versatile deadbolts in the business. Designed by locksmiths for locksmiths, the B500 deadbolt fits virtually every door and enhances lock strength on the jamb side of the door, and will change forever the way you look at deadbolts.

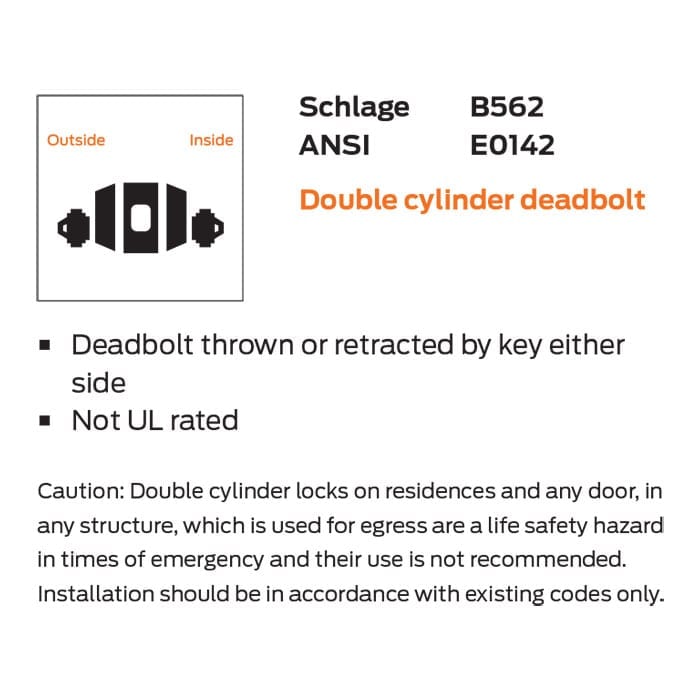

*Double Cylinder (Key on Both Sides) – ANSI Function E0142 – Deadbolt thrown or retracted by key on either side *Caution: Double cylinder locks on any door are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- Quick, easy installation – Adjustable backset locks into place
- Anti-pry shield protects latch from attacks
- Metal dust box provides deep anchoring and added strength
- Primary or auxiliary locking for commercial buildings
- High security locking for residential buildings
- Can be suited with virtually all Schlage levers and knobs
Brand | |
---|---|
Finishes | 613 Oil Rubbed Bronze, 626 Satin Chrome |
ANSI Function | E0151 |
ANSI/BHMA Standard | ANSI A156.5, 2001 – Grade-2 |
Usage | Medium Duty |
Deadbolt Type | Double Cylinder |
Keyway | Schlage C Keyway |
Bolt | 1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
Backset | 2-3/8" to 2-3/4" Adjustable |
Fire Rating | None |
Door Thickness | 1-3/8" to 1-3/4" |
Strike | 1-1/8” x 2-3/4“ square corner |
