Product Overview
Falcon D231CP6 Grade-2 Double Cylinder Deadbolt, Schlage C Keyway
The D231 will fit on virtually any door due to an innovative, adjustable backset design; and they’re backed by Allegion, the best name in the business. Falcon continues to deliver a solid product at a solid price.

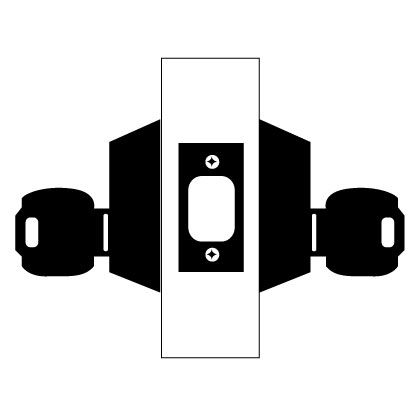

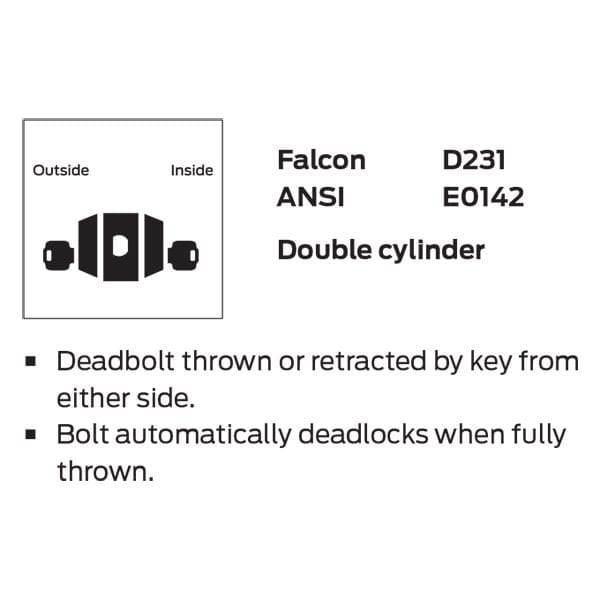

*Double Cylinder (Key on Both Sides) – ANSI Function E0142 – Deadbolt thrown or retracted by key on either side *Caution: Double cylinder locks on any door are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- Integrated anti-pry shield behind the cylinder assembly for added security and quicker installation
- Tapered front resists wrenching
- Adjustable backset with lock-in-place design delivers greater versatility
- Heavy-duty saw-resistant bolt with spinning hardened steel pin inside for additional protection
Brand | |
---|---|
Finishes | 605 Bright Brass, 613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome |
Deadbolt Type | Double Cylinder |
ANSI Function | E0142 |
ANSI/BHMA Standard | A156.5, 2001, Grade 2 |
ANSI Grade | ANSI Grade 2 |
Usage | Medium Duty |
Cylinder & Keys | 5-pin or 6-pin conventional, keyed different, with 2 keys |
Keyway | Schlage C Keyway |
Bolt | 1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
Backset | 2-3/8" to 2-3/4" Adjustable |
Strike | 1-1/8” x 2-3/4“ square corner |
Door Thickness | 1-3/8" to 1-3/4" |
