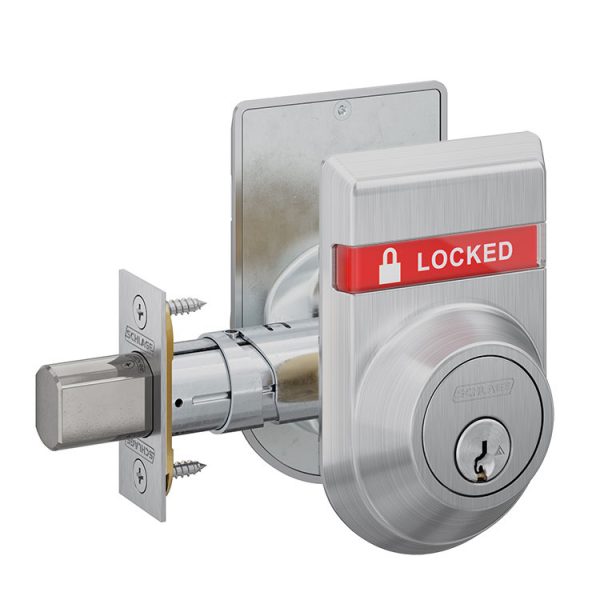

Schlage B562P Double Cylinder Deadbolt with OS-LOC/IS-LOC Dual-Sided Occupancy Indicators

Usually Ships: 20-30 Business Days
  • Double cylinder deadbolt (key on both sides)
  • Outside indicator displays “Locked” or “Unlocked”
  • Inside indicator displays “Locked” or “Unlocked”

Available Options:

Clear

Product Overview

Schlage B562P Grade-2 Double Cylinder Deadbolt with Dual-Sided Messaging – OS-LOC (LOCKED/UNLOCKED) Outside Occupancy Indicator Trim and IS-LOC (LOCKED/UNLOCKED) Inside Occupancy Indicator Trim, Adjustable 2-3/8″ and 2-3/4″ Backset, C Keyway

Top-selling Schlage Grade 2 B Series deadbolts rival many competitive Grade 1 products for strength, durability, and versatility. These mid-price point deadbolts are offered in 10 finishes. Their design includes anti-saw, anti-pry, anti-wrench, and other security features not common to Grade 2 deadbolts. They are easy to install and can meet any security need.

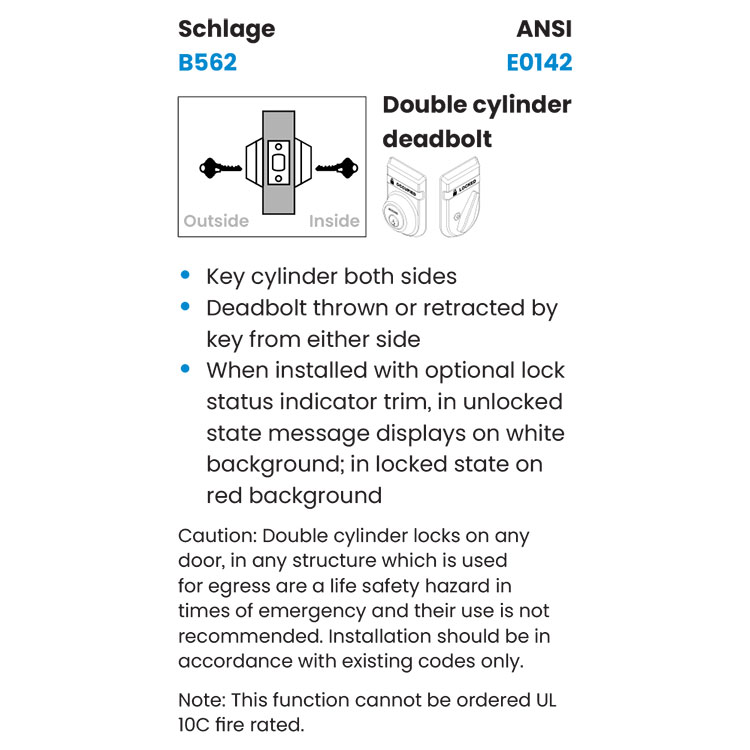

ANSI E0142 – Key cylinder both sides • Deadbolt thrown or retracted by key from either side • When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

  • Outside indicator displays “Locked” or “Unlocked”
  • Inside indicator displays “Locked” or “Unlocked”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Can be suited with virtually all Schlage levers and knobs
  • Can be installed using the same standard door prep as any B Series lock
  • 3-year limited mechanical warranty
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze
Deadbolt Type

Double Cylinder, Indicator
ANSI/BHMA Standard

ANSI A156.36, Grade 2
ANSI Function

E0142
Usage

Medium Duty
Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Door Thickness

1-3/4" to 1-7/8”
Fire Rating

None
