Product Overview

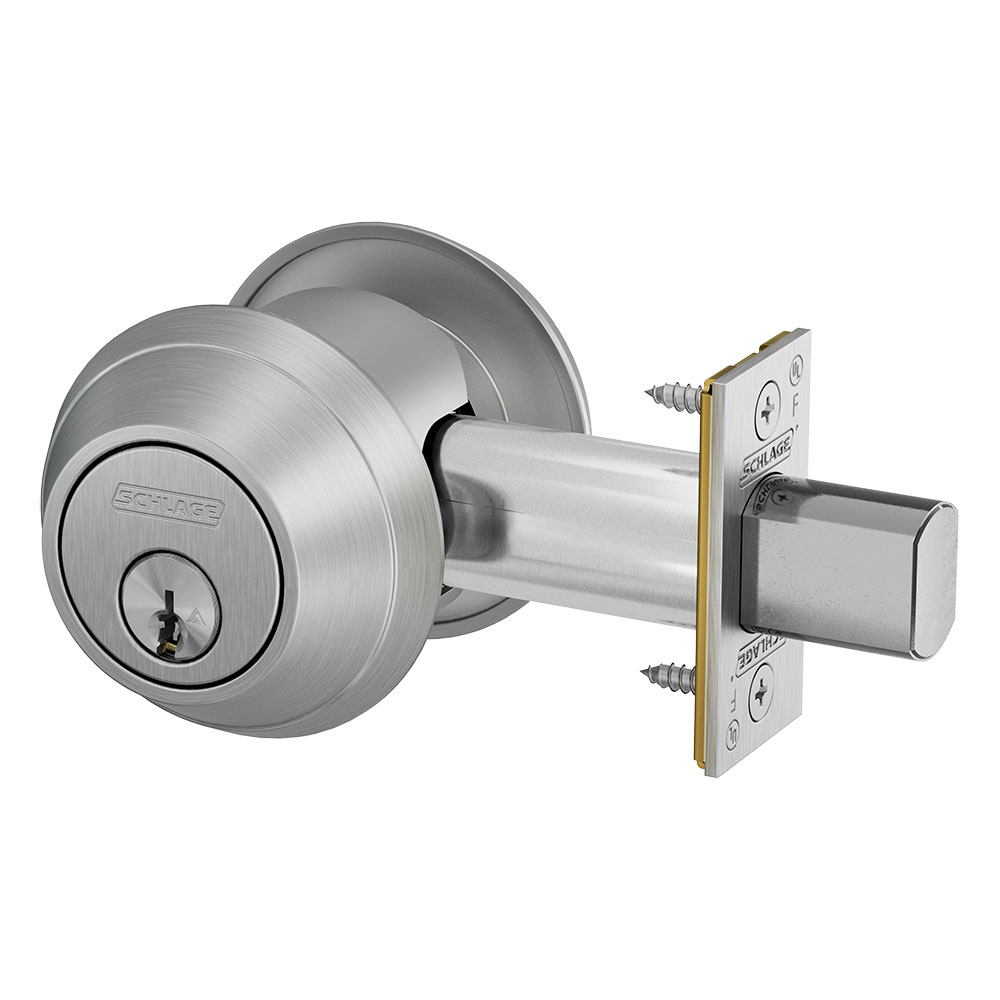

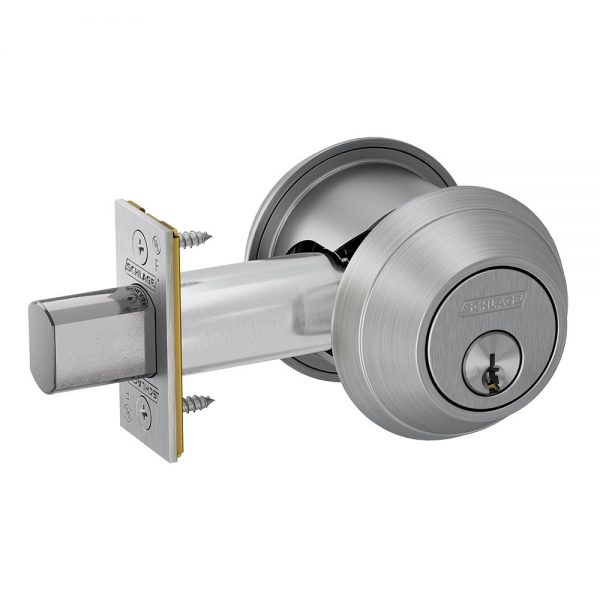

The B600 Series – Schlage’s toughest and highest grade heavy-duty Grade 1 commercial deadbolt.
*Double Cylinder (Key on Both Sides) – ANSI Function E0141 – Deadbolt thrown or retracted by key on either side *Caution: Double cylinder locks on any door are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- 1″ throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
- Metal shield protects bolt from ice-pick attack through the door
- Hardened steel ball-bearings protect mounting bolts from drill attack
Brand | |
---|---|
Finishes | 613 Oil Rubbed Bronze, 626 Satin Chrome |
Deadbolt Type | Double Cylinder |
ANSI Function | E0141 |
ANSI/BHMA Standard | ANSI A156.36, Grade 1 |
ANSI Grade | ANSI Grade 1 |
Usage | Heavy Duty |
Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
Keyway | Schlage C Keyway |
Bolt | 1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
Backset | 2-3/4" |
Strike | 1-1/8” x 2-3/4“ square corner |
Door Thickness | 1-3/4" to 2" |
