Schott PYRAN® Platinum F Fire-Rated Safety Glass Ceramic, 90-Minute Labeled, Cut-to-Size
$149.00
Usually Ships: 3-5 Business Days- Cut-to-size and etched with 90-minute UL classification
- Smallest Size: 3″ x 3″ – Largest Size: 43″ x 77″
- Please convert fractional sizes to decimal (ex. 8 ½ = 8.5)
Product Overview
Cut-to-size 90-minute rated premium filmed fire-protective safety glass ceramic for windows and doors
SCHOTT PYRAN® Platinum F is a fire-protection-rated and impact-safety-rated glazing material made from a transparent glass-ceramic with a thickness of 3/16” (5 mm). It has a surface applied safety film and is intended for use in safety-rated locations such as door vision lites, transoms or sidelites, and windows with fire-rating requirements.
PYRAN® Platinum is made on a next-generation float production line that makes a very high-quality premium glass-ceramic in the industry’s largest sizes. Many people think it looks better than traditional rolled products that may require corrective grinding and polishing. PYRAN® Platinum meets all of the required building codes for use in high traffic areas such as schools, hospitals, institutions, offices, and other commercial buildings – without the amber tint!
The choice is CLEAR – In terms of optical quality, color and price, you can’t beat PYRAN® Platinum F from Trudoor.
TRUDOOR® is certified by UL to cut, re-certify, and label PYRAN® Platinum F glass and fire-protection-rated glazing materials.

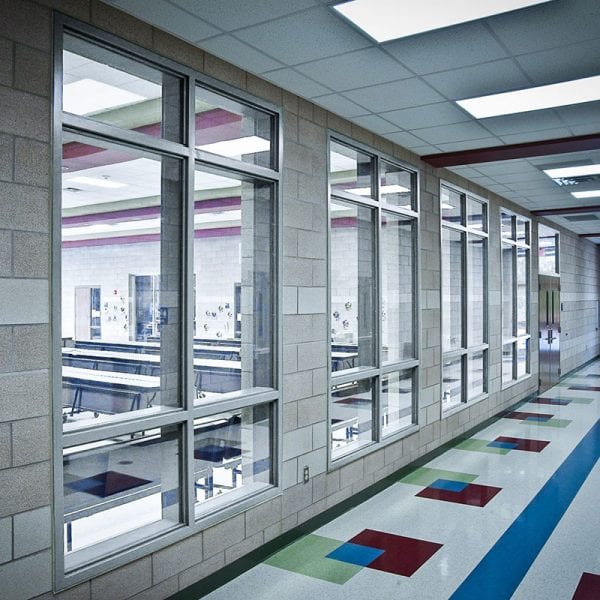

- Applications: Door vision lites, borrowed lite window frames, sidelites, and transom lite frames
- World’s first and only floated glass-ceramic developed specifically for architectural applications
- Transparent and wireless – surface-applied safety film
- Clear and colorless without the distracting amber tint associated with competitive glass-ceramics
- Environmental Friendly – produced without hazardous heavy metals antimony and arsenic
- Each piece etched with UL classification (90 Minutes with Hose Stream)
- Can also be used with applications that require 20 minute, 45 minute, or 60 minute fire-rating
- Largest Sheet Size: 43″ x 77″
Classified and labeled by Underwriters Laboratories, Inc. for the United States and Canada with File – No. R39507. All fire tests performed in accordance with UL 9, UL 10C, UBC 7-2 (1997), UBC 7-4 (1997), NFPA 252, NFPA 257, NFPA 80 , ASTM E2010-01, ASTM E2074-00, CAN /ULC – S104, and CAN /ULC – S106. All listing information is subject to change. Note: This product is not considered a barrier to radiant heat and has not met the ASTM E-119 or UL 263 test standards
Labeling: After cutting, each lite of PYRAN® Platinum fire-rated glass-ceramic shall be permanently labeled according to local building code requirements with product and manufacturer’s name, UL certification mark, fire rating, etc.
Please refer to IBC code Chapter 7 (International Building Code) for fire-rated glass requirements and limitations. Frame, door, and/or hardware must also be fire-rated. Fire-rating requirements must match the glazing requirements in order for the assembly to fully meet code requirements. Please refer to manufacturers’ specifications. Please Consult with your door and frame manufacturer’s procedures, for their maximum glass size tested. Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction to determine appropriate standards in your area. Trudoor assumes no liability or responsibility for any damage to person or property resulting from or incident to the use of the products that we provide. Trudoor assumes no liability or responsibility for misspecified and/or misordered materials. Glass is cut to order and non-returnable or refundable.
Trudoor is certified by UL to cut, re-certify and label fire-rated glazing materials. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the UL specification listings. All material is tested in accordance with NFPA codes and standards.
PYRAN® is a registered trademark of SCHOTT AG
Glass is cut to order and non-returnable or refundable.
Call 1-844-TRUDOOR (844-878-3667) for info on volume discounts
Brand | |
---|---|
Applications | Architectural Applications – Doors and Windows |
Size | Custom Sizes to 43" x 77" |
Glass Impact Safety Rating | ANSI Z97.1 and CPSC 16CFR1201 (Cat. I and II) |
Fire Rating | 20 to 90 Minutes with Hose Stream – UL Listed |
Classification (Fire-Rating) | 90-Minute UL Label |
Glass Thickness | 3/16" |
Glass Surface | Float glass quality with surface-applied safety film |
Glass Weight | 2. 6 lbs/ft |
Glass Light Transmission | Approx. 80% |
Glass Appearance | Clear, Free of Amber Tint |
Glass Sound Transmission Rating | STC 31db |
Glass Approvals | UL 9, UL 10B, UL 10C, NFPA 80, NFPA 252, NFPA 257, ASTM E2074, ASTM E2010-01, CPSC ANSI Z97.1, ULC CAN4-S104 ,ULC CAN4-S106 |
Glass Fabricated | Trudoor – Phoenix, AZ – USA |
