Falcon W511 HANA Entry Knob Lock


Usually Ships: 1-2 Days
  • Medium Duty – Grade 2
  • Schlage C Keyway – 626 Finish
  • UL Listed – 3 Hour Fire-Rated

The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

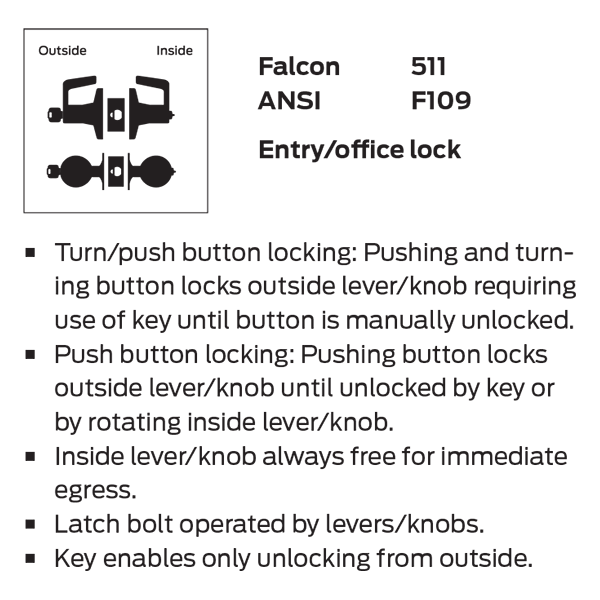

ANSI Function F109 – Deadlocking latch bolt by knobs. Turn/push button locking. Pushing and turning button locks outside knob, requiring use of a key for unlocking the door until the button is manually unlocked. Pushing button locks outside knob until unlocked by key or by rotating inside knob. Inside knob is always free.

Knobs are constructed of brass or cold-formed steel and are zinc-plated and dichromated for rust resistance. Springs are stainless steel. Roses are heavy-wrought brass or bronze, installed over wrought steel reinforcing plates. Knobs are brass or bronze, secured by a steel knob retainer, which cannot be depressed when lock has been locked


Lock Function

Entry (Entrance)


Medium Duty


2-3/4" standard


4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front




Schlage C Keyway

Door Thickness

1-3/8" to 1-3/4"


1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys


10 Year Limited


626 Satin Chrome
