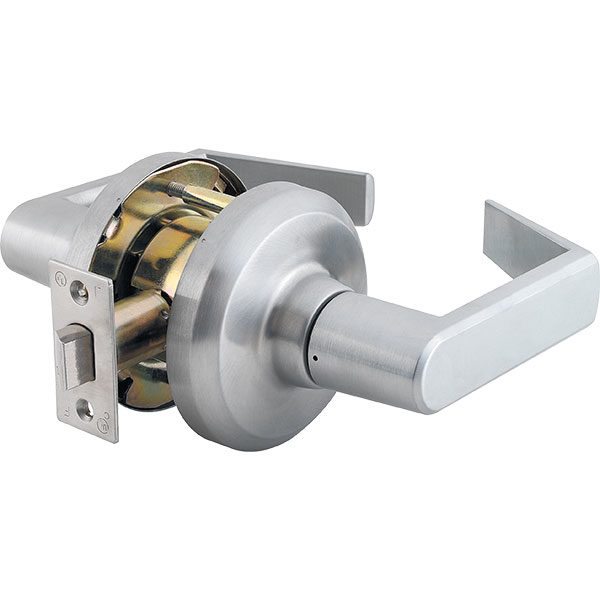

Stanley QCL130-E-626 Passage Lever Set

$133.00

Usually Ships: 5-10 Days
  • Heavy Duty – ANSI/BHMA Grade 1
  • ADA Compliant, Fire-Rated – 626 Satin Chrome Finish
  • Passage Function – ANSI F75

High value for high-use applications.

STANLEY Commercial Hardware QCL100 Series Grade 1 heavy-duty cylindrical locks deliver quality, performance, and long-term durability at a great value. When you need a reliable lockset for high traffic, heavy abuse applications, the QCL100 series offers flexible solutions with built-in security features to meet those demands.

QCL130 / ANSI F75 Passage Function: Both levers always unlocked and always free for immediate ingress & egress.

  • 626 Satin Chrome Finish
  • Sierra (E) Lever Design
  • Tested to meet Grade 1 specification of 800,000 cycles
  • Compartmentalized packaging allows for quick and easy installation
Brand

Lock Function

Passage

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.2 Series—Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL-cUL fire rated up to 3 hours

Backset

2-3/4" standard

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

Sierra (E)

Door Thickness

1-3/8" to 1-3/4"

Finishes

626 Satin Chrome

Latch

1/2" throw – 1-1/8" x 2-1/4" face
