Falcon W301S HANA Privacy Knob Lock

Usually Ships: 1-2 Business Days
  • Certified ANSI/BHMA A156.2, Grade 2
  • Bath/privacy function, push button locking
  • UL listed, 3 hour fire-rated

Available Options:

Clear

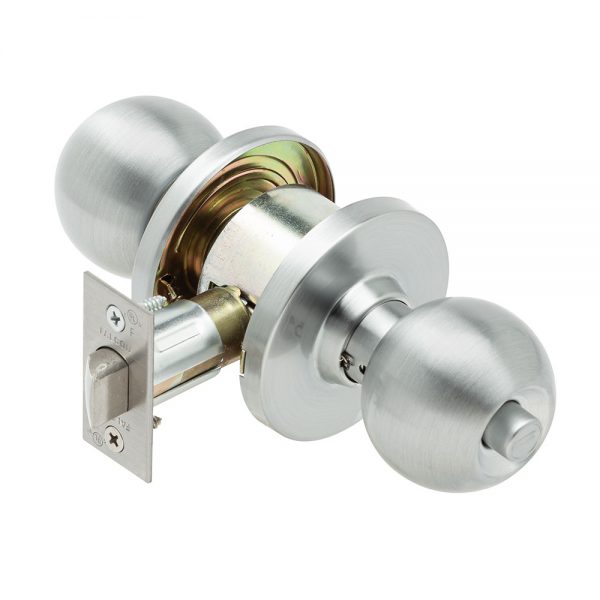

Falcon W301S HAN Grade 2 Privacy Cylindrical Lock, Non-Keyed, Hana Knob, Standard Rose

The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

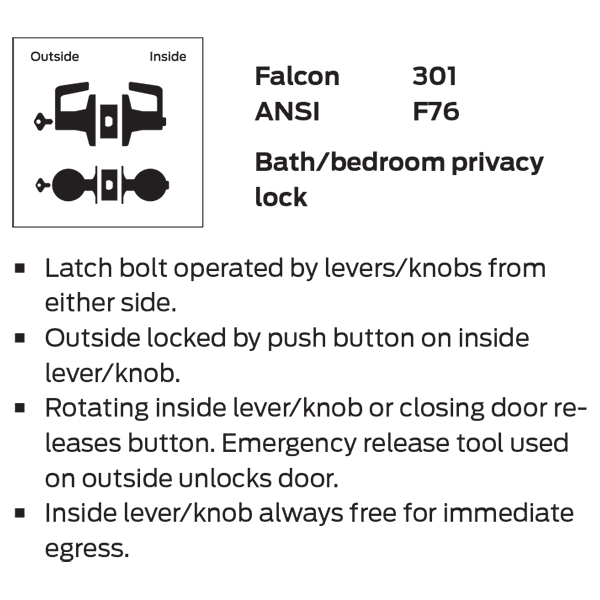

ANSI Function F76 – Keyless – Latch by knobs. Outside knob is locked by push button on inside knob. Rotating inside knob or closing door releases push button and frees outside knob. Inside knob is always free. Emergency release in outside knob unlocks door.

Knobs are constructed of brass or cold-formed steel and are zinc-plated and dichromated for rust resistance. Springs are stainless steel. Roses are heavy-wrought brass or bronze, installed over wrought steel reinforcing plates. Knobs are brass or bronze, secured by a steel knob retainer, which cannot be depressed when lock has been locked.

Brand

Finishes

613 Oil Rubbed Bronze, 626 Satin Chrome

Lock Function

Privacy

Usage

Medium Duty

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Warranty

10 Year Limited
