W101S-HANA-626
falcon-101
W101S-HANA-626
falcon-101

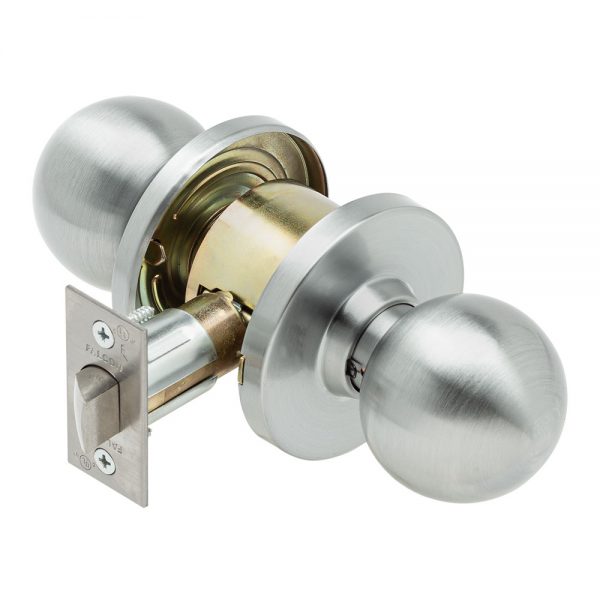

Falcon W101S HANA Passage Knob

Usually Ships: 1-2 Business Days
  • Certified ANSI/BHMA A156.2, Grade 2
  • Both knobs always unlocked and free
  • UL listed, 3 hour fire-rated

Available Options:

Clear

Product Overview

Falcon W101S HAN Grade 2 Passage Cylindrical Lock, Non-Keyed, Hana Knob, Standard Rose

The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

ANSI Function F75 – Keyless – Latch bolt by knob at all times.

Knobs are constructed of brass or cold-formed steel and are zinc-plated and dichromated for rust resistance. Springs are stainless steel. Roses are heavy-wrought brass or bronze, installed over wrought steel reinforcing plates. Knobs are brass or bronze, secured by a steel knob retainer, which cannot be depressed when lock has been locked.

Brand

Finishes

613 Oil Rubbed Bronze, 626 Satin Chrome
Lock Function

Passage
Usage

Medium Duty
ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Door Thickness

1-3/8" to 1-3/4"
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Warranty

10 Year Limited
