Best HD7016 ARP Door Closer

Usually Ships: 10-15 Business Days
  • BHMA/ANSI Certified Grade-1
  • Adjustable spring size 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:


Best HD7016 ARP Grade 1 Surface Door Closer, Adjustable Size 1-6, Round Form Arm, Tri-Pack, Non-handed

The HD7000 door closer provides protection against fatigue and abrasion. This Grade 1 certified closer is built to meet the requirements of ANSI A156.4, comply with barrier-free requirements, and can be used with a wide array of doors and frames.

An ideal selection for durability, versatility, and value designed to withstand daily use in moderate-traffic environments within any building design.

  • AFP = Round form arm, tri-pack (standard)
  • Housed in corrosion-resistant aluminum with a hardened pinion/piston providing toughness and high-strength
  • The arm hub is made from forged steel
  • Standard back-check protects the door and frame while controlling the door from abrupt opening
  • Utilizes the same hole pattern as a Norton 8300/8500 closer
  • ANSI/BHMA A156.4 Grade 1 certified
  • UL and CUL listed
  • Meets ANSI/BHMA A117.1 and ADA for barrier-free accessibility




689 Aluminum, 693 Black, 695 Dark Bronze


Medium Duty

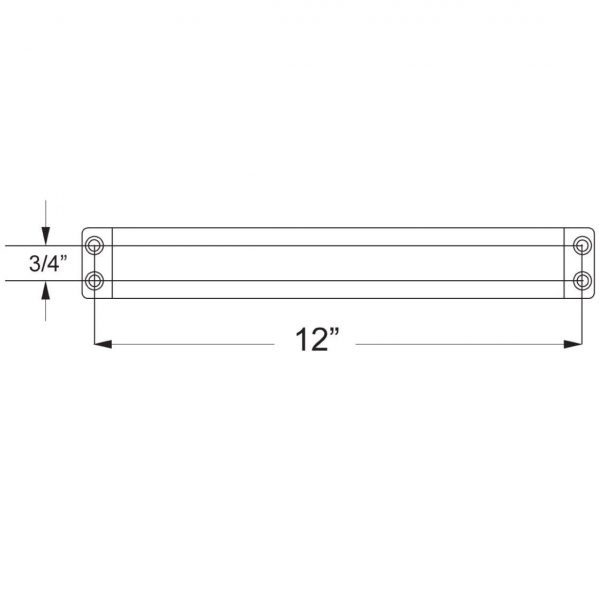

Templating (Hole Pattern)

3/4" x 12"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code


SNDTPK – Standard fasteners include separate self-drilling and self-tapping and sex nuts for 1-3/4" thick doors and machine screws

Body Construction

Cast Aluminum Body


Full Cover

Spring Size

Adjustable Spring Size 1-6




30 Years
