Best HD8016 AF80P Door Closer

Usually Ships: 20-30 Business Days
  • Heavy Duty, BHMA/ANSI Certified Grade-1
  • Adjustable spring size 1-6
  • Regular, top jamb, or parallel arm mount

Available Options:


Best HD8016 AF80P Grade 1 Heavy Duty Surface Door Closer, Adjustable Size 1-6, Flat Form Arm, Tri-Pack, Non-handed

The HD8000 Heavy-Duty door closer provides maximum protection against fatigue and abrasion. This Grade 1 certified closer is built to meet the requirements of ANSI A156.4, comply with barrier-free requirements, and can be used with a wide array of doors and frames.

Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.

  • AFP80 = Flat form arm, tri-pack (standard)
  • Housed in corrosion-resistant aluminum with a hardened pinion/piston providing toughness and high-strength
  • The arm hub is made from forged steel
  • Standard back-check protects the door and frame while controlling the door from abrupt opening
  • ANSI/BHMA A156.4 Grade 1 certified
  • UL and CUL listed
  • Meets ANSI/BHMA A117.1 and ADA for barrier-free accessibility


  • Education, K-12 & Universities
  • Healthcare facilities
  • Government offices & facilities
  • Transportation/Airports
  • Other commercial applications




689 Aluminum (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated)


Heavy Duty

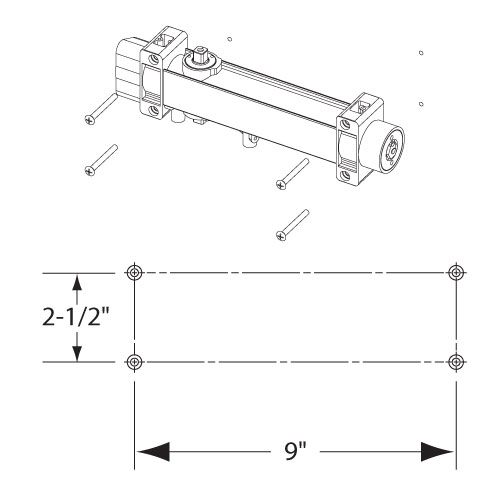

Templating (Hole Pattern)

2-1/2" x 9"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code


SNDTPK – Standard fasteners include separate self-drilling and self-tapping and sex nuts for 1-3/4" thick doors and machine screws

Body Construction

Cast Aluminum Body


Full Cover

Spring Size

Adjustable Spring Size 1-6




30 Years
