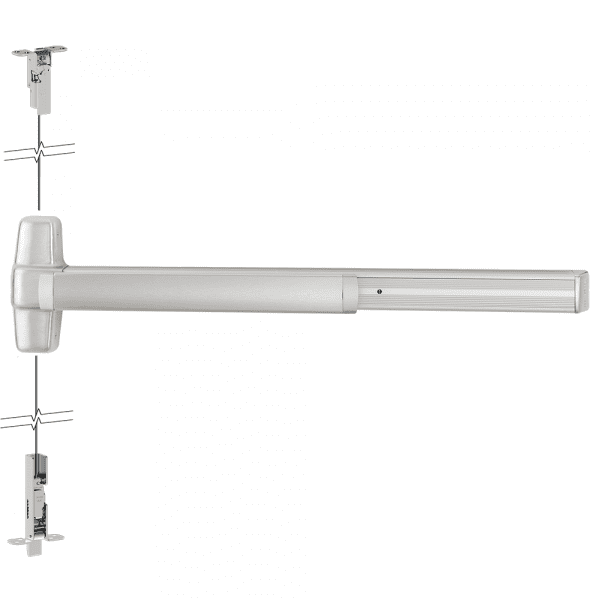

Von Duprin 9950WDC-EO Concealed Vertical Cable Exit Device for Wood Doors

Usually Ships: 20-30 Days
  • Heavy Duty – ANSI/BHMA Grade-1 – Made in USA
  • For use with Wood Doors
  • Concealed Cables Provide Clean Look

Available Options:

Clear

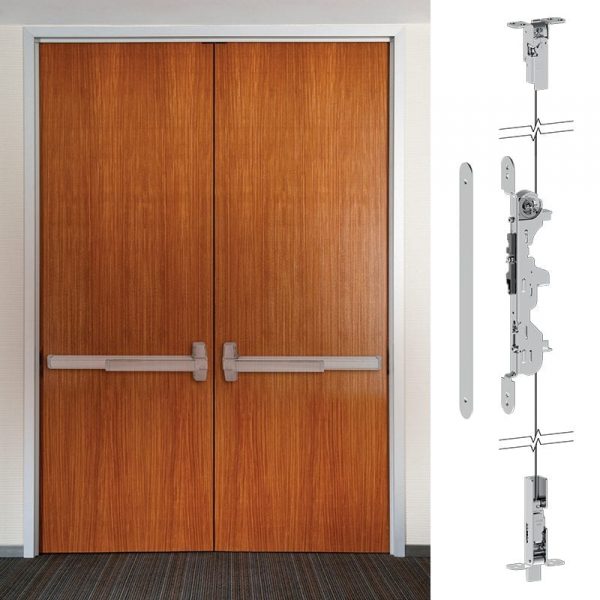

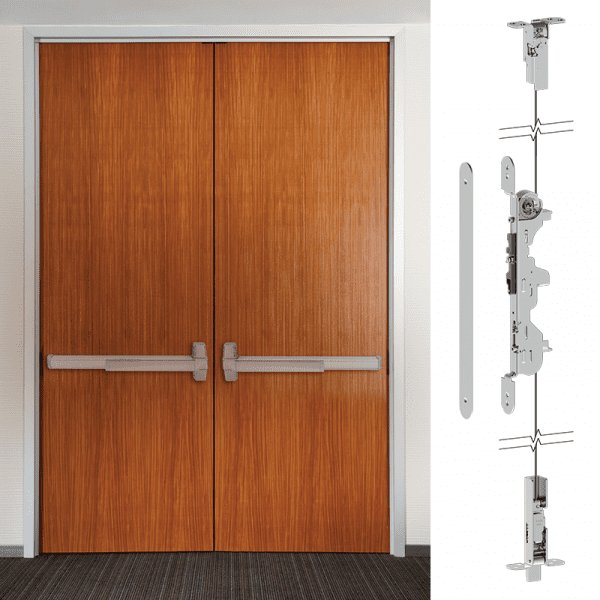

The Von Duprin wood door concealed (WDC) system is designed specifically for wood door applications where exit devices are required. Instead of traditional rods, concealed vertical cables are utilized. Making use of this proven technology enables quick installation and allows for easy maintenance.

This WDC system provides superior security without compromising aesthetics. The innovative latch design provides superior strike engagement and deadlocking without the need for additional hardware. In addition, the prep for concealed cables requires less material to be removed, which protects the structural integrity of the wood door. This allows the hardware to be more discrete than traditional concealed vertical rod systems that require unsightly metal wraps.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • US26D Satin Chrome Finish
  • For nominal door heights of 6’8″ to 7’0″
  • Concealed vertical cables instead of rods for quick installation and adjustment
  • Latches are designed for optimized door prep, retaining the structural integrity of the door

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Device Type

Concealed Cable Device

Nominal Door Opening Height

80" to 84"

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

None

Hand

Non-handed

Trim

None – Exit Only (Outside Trim Sold Separately)

Vertical Cable

7/32" Diameter stainless steel cables

Latchbolt

Deadlocking top and bottom bolt. 1-1/2" throw

Strike

Top – 150, Bottom – 450

Fasteners

Includes screw pack for 1-3/4" to 2-1/4" thick wood doors

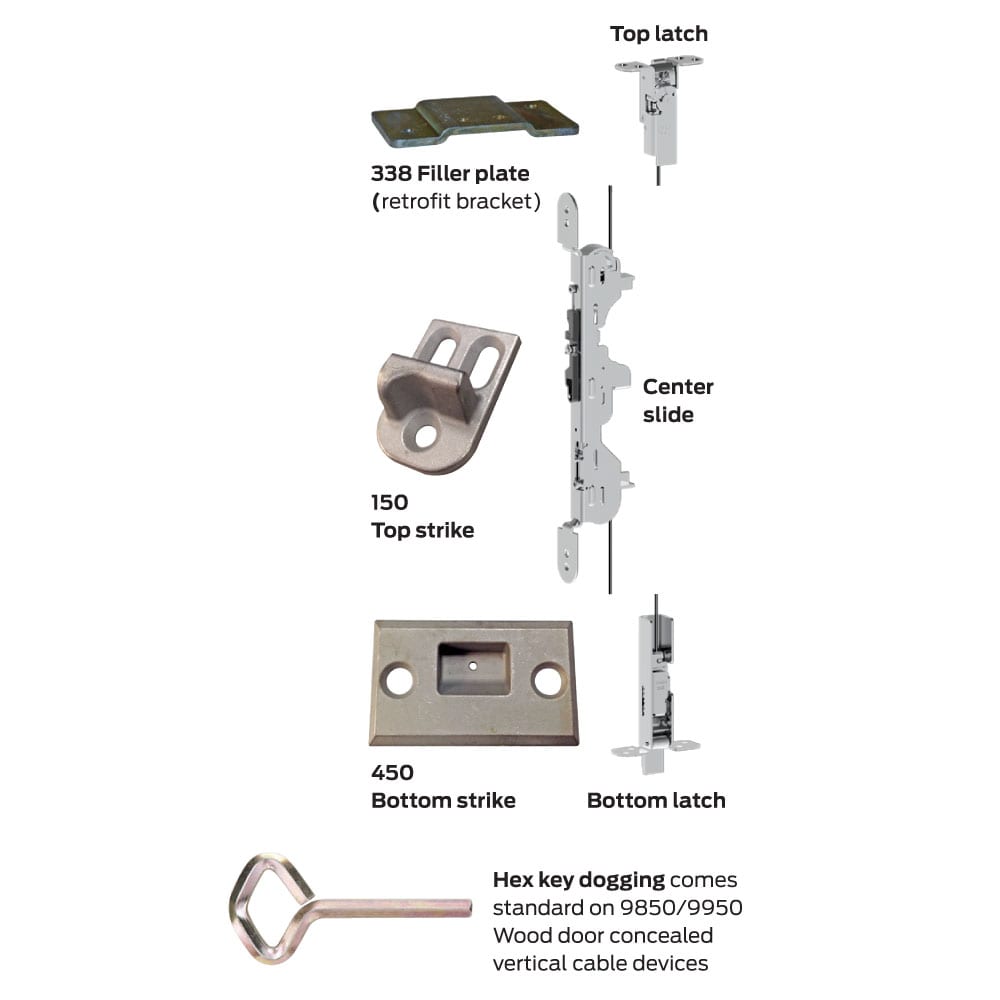

Dogging Feature

Half turn hex dogging standard

Stile Type

Wide (Standard)

Center Case

8" x 2-3/4" x 2-3/8"

Mechanism Case

2-1/4" x 2-1/4"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Door Applications

1-3/4" to 2-1/4" Thick Wood Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Finishes

US26D (626) Satin Chrome

Von_Duprin_98_9950WDC_Wood_Door_Concealed_CVC_Installation_Instructions
