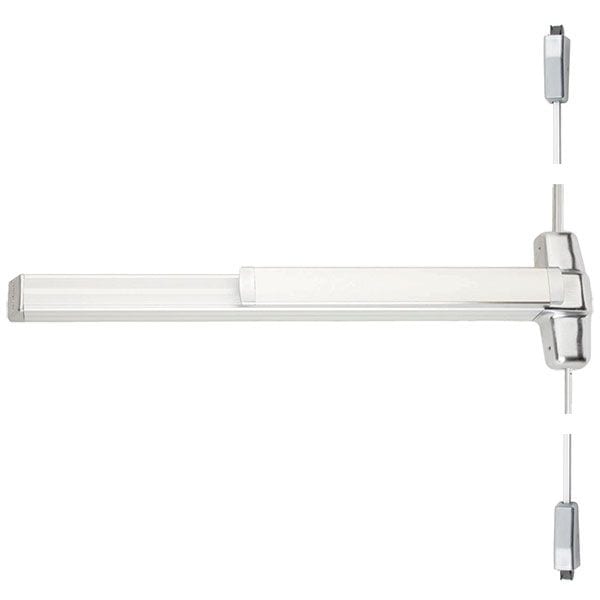

Von Duprin QEL9927EO Surface Vertical Rod Exit Device w/ Quiet Electric Latch Retraction

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Enables remote unlatching – alternative to manual dogging
  • Energy-efficient motorized latch retraction

Available Options:

Clear

Von Duprin QEL9927EO Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Panic Device, 84″ Door Height, Exit Only, Less Trim, Motorized Latch Retraction, Less Dogging, Field Reversible

Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. The QEL option is Von Duprin’s solution of choice for hospitals, libraries, museums and theaters where ambient noise can be disruptive.

These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users.

  • Energy-efficient motorized latch retraction utilizes standard 2 amp power supply, enabling longer wire runs from power source
  • Quiet operation in both mechanical and electronic states
  • Modular design allows for a simplified installation
  • Pushbar is pulled in electronically for quieter operation when dogged
  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″)
  • Designed for high use and abuse in institutional applications
  • UL listed for panic exit hardware
  • Devices are ANSI A156.3 – 2014 Grade 1

Brand

Finishes

313 Duranodic Dark Bronze, US26D (626) Satin Chrome

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Hand

Non-handed

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

None

Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)

Strikes

299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

Fasteners

Includes screws for metal and wood doors

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Center Case

8" x 2-3/4" x 2-3/8"

Stile Type

Wide (Standard)

Dogging Feature

No Manual Dogging – Electric Latch Retraction

Device Type

Surface Rod Device

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Von_Duprin_98_9927_Surface_Vertical_Rod_Exit_Device_Installation_Instructions Von_Duprin_Electrical_Options_Booklet_Installation_Instructions_107111
