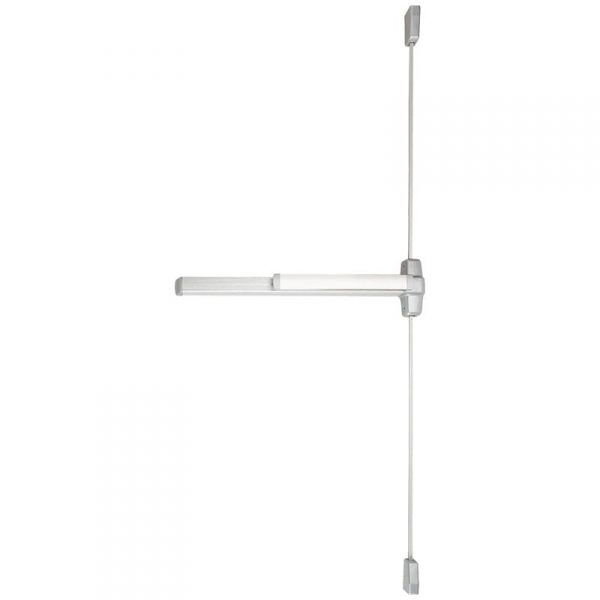

Von Duprin 9927EO-F Fire-Rated Surface Vertical Rod Exit Device

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI/BHMA Grade-1 – Made in USA
  • UL Listed Fire Door Hardware, Fire-Rated
  • ANSI Function 01, Exit Only (Trim Sold Separately)

Available Options:

  • Anodized Aluminum
  • Black
  • Bright Brass
  • Bright Chrome
  • Dark Bronze
  • Satin Chrome
  • Satin Chrome AM (Antimicrobial)
Clear

High-performance, wide stile heavy-duty fire-rated surface vertical rod exit device for high use and abuse applications

The 9927 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. The 9927-F model is fire-rated for pairs of doors up to 8′ x 10′ – UL listed for fire exit hardware.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″)
  • Designed for high use and abuse in institutional applications
  • UL listed for fire exit hardware – A or B label fire-rated (up to 3 hours)

Brand

Finishes

313 Duranodic Dark Bronze, US3 (605) Bright Brass, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US26D-AM (626AM) Satin Chrome Antimicrobial, US28 (628) Anodized Aluminum

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Hand

Non-handed

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

UL listed A or B label Fire-Rated (3 Hours)

Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)

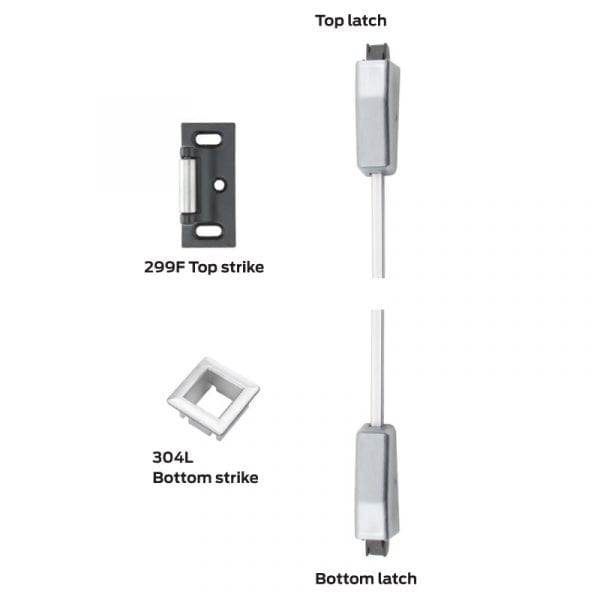

Strikes

299F Top Strike, 304L Bottom Strike

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

Fasteners

Includes screws for metal and wood doors

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Center Case

8" x 2-3/4" x 2-3/8"

Stile Type

Wide (Standard)

Dogging Feature

None

Device Type

Surface Rod Device

Door Applications

1-3/4″ Thick Fire-Rated Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Von_Duprin_98_9927_Surface_Vertical_Rod_Exit_Device_Installation_Instructions
