Von Duprin 9947EO-F Fire-Rated Concealed Vertical Rod Exit Device for Metal Doors

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI function 01, exit only (trim sold separately)
  • UL listed fire exit hardware

Available Options:
Clear

Product Overview

Von Duprin 9947EO-F Grade 1 Concealed Vertical Rod Exit Device, Fire Rated, Wide Stile Pushpad, 80″ to 100″ Door Height, Exit Only

The 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9947EO-F Concealed vertical rod device for use on single or double metal doors, UL listed fire exit hardware. Devices are ANSI A156.3 – 2014 Grade 1.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Designed for high use and abuse in institutional applications
  • Top rod adjustable from 6’8″ to 8’4″

Brand

Finishes

313 Duranodic Dark Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Device Type

Concealed Rod Device
Vertical Rods

Rods Accommodate Doors up to 8'0" – Cut to Specification in Field
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Fire Rating

UL and cUL Listed – up to 3 Hours
Hand

Non-handed
Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

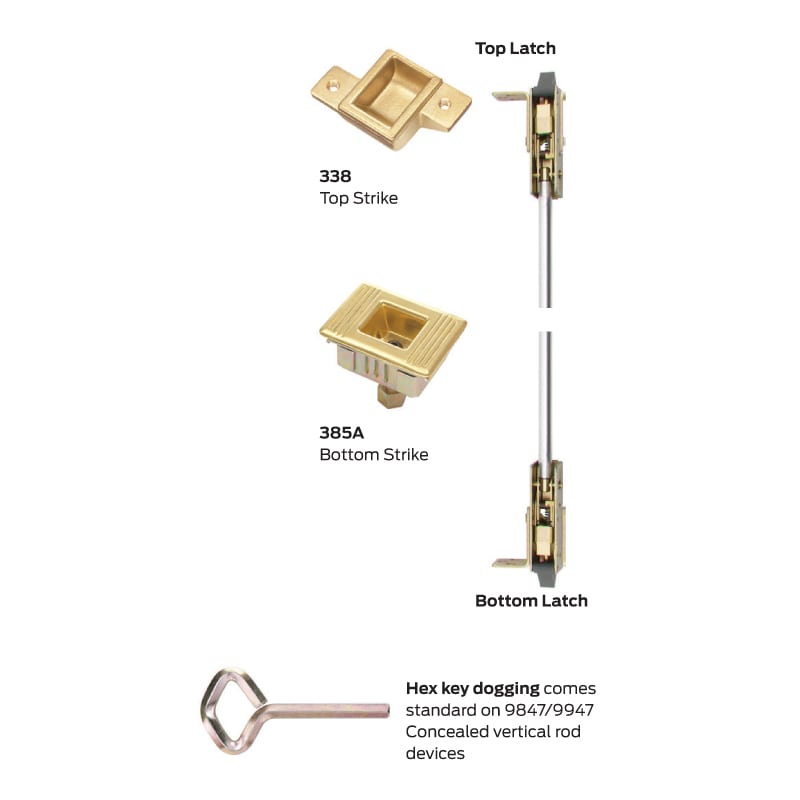

Strike

Top – 338 – Unfinished, Bottom – 385A – Unfinished
Fasteners

Includes screw pack for 1-3/4" to 2-1/4" thick metal doors
Dogging Feature

None
Stile Type

Wide (Standard)
Center Case

8" x 2-3/4" x 2-3/8"
Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Door Applications

1-3/4" to 2-1/4" Thick Metal Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Von_Duprin_98_9947_Concealed_Vertical_Rod_Exit_Device_Installation_Instructions
