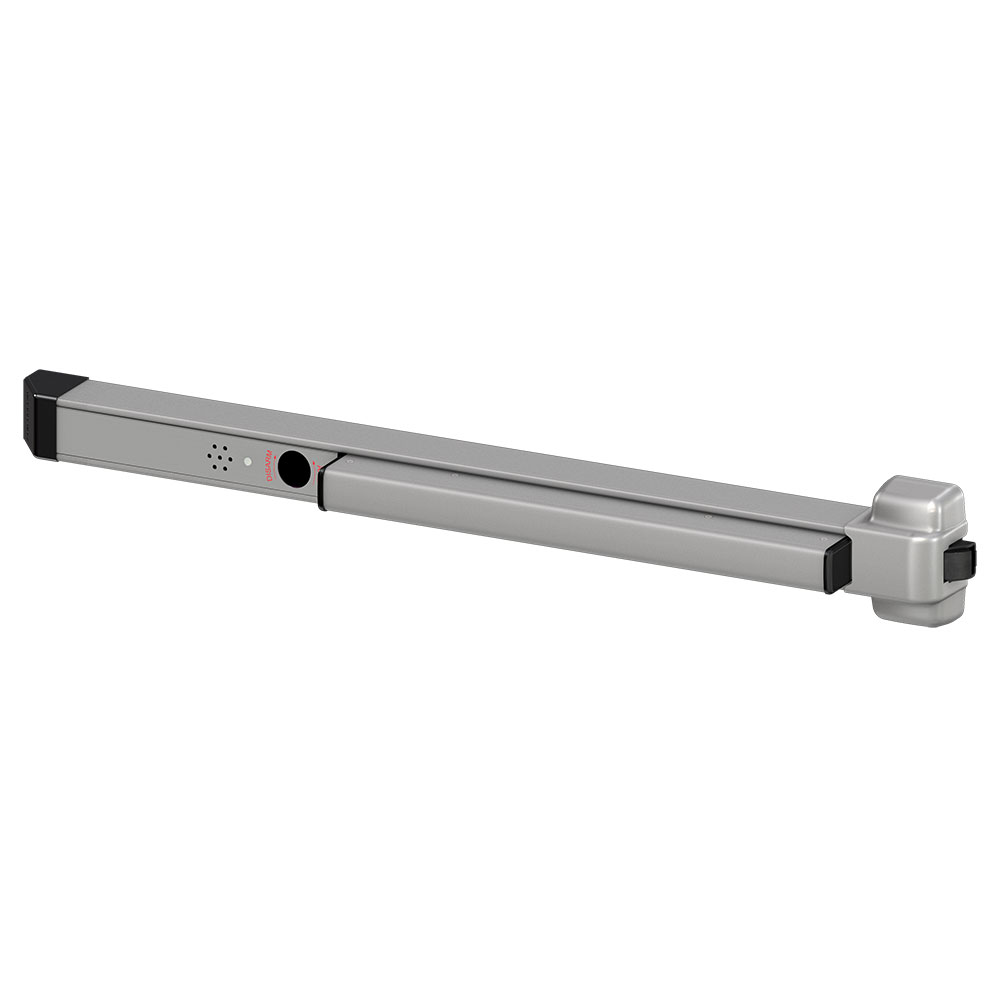

Von Duprin 22 ALK – Alarm Kit for 22 Series Exit Device

Usually Ships: 1-2 Business Days

EAK Kit Only (exit device sold separately) – operates on 9-volt alkaline battery
Includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND.” decal
Key switch uses standard 1-1/4″ mortise cylinder (not included – sold separately)

Available Options:

Finish
Device Length	Clear

Subtotal
Options
Total

Quantity:

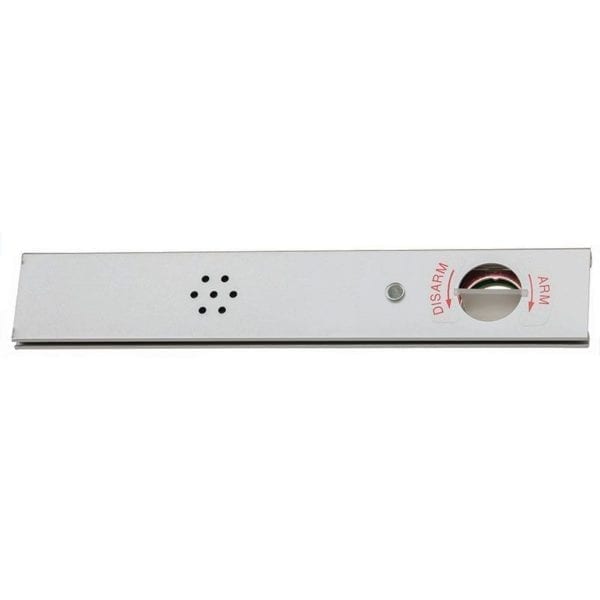

ALK Alarm Kit is a simple yet effective way to deter unauthorized use of an opening. While the exit device is still a means of egress, the ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated. The alarm kit can be armed or disarmed by key thus allowing the exit device to be set in an armed or disarmed mode. The horn is rated at 85 decibels.

The assembly includes both a 24VDC Input and External Inhibit standard. The External Inhibit provides remote arming and disarming. The key switch uses a standard 1-1/4″ mortise cylinder with a straight cam (Schlage 20-001, L583-477 cam). The unit operates on one standard 9-volt alkaline battery. When the battery is weak, the horn will emit an intermittent low battery alert signal.

Note: This listing is for the ALK Kit Only – Exit Device not included

Brand	Von Duprin
Finishes	526 Powder Coated Chrome, 622 Matte Black, 689 Aluminum, 695 Dark Bronze
Battery Life	Operates on one standard 9-volt alkaline battery.
Cylinder	Requires 1-1/4" mortise cylinder with a straight cam (Schlage 20-001, L583-477 cam) – Cylinder not included
Part Type	Alarm Kit
