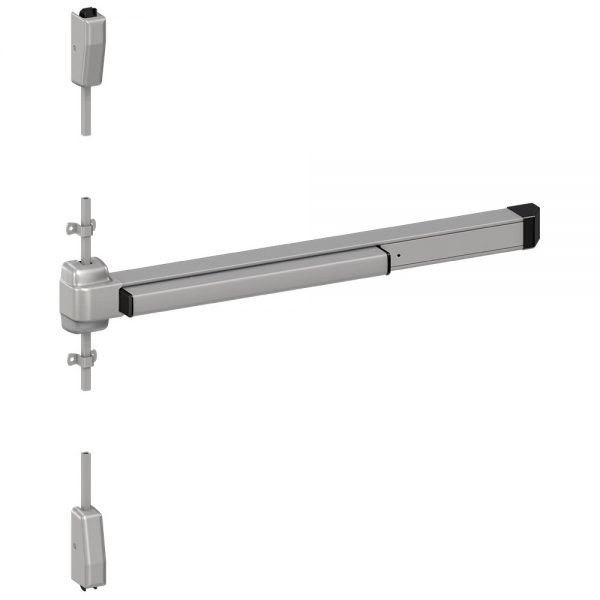

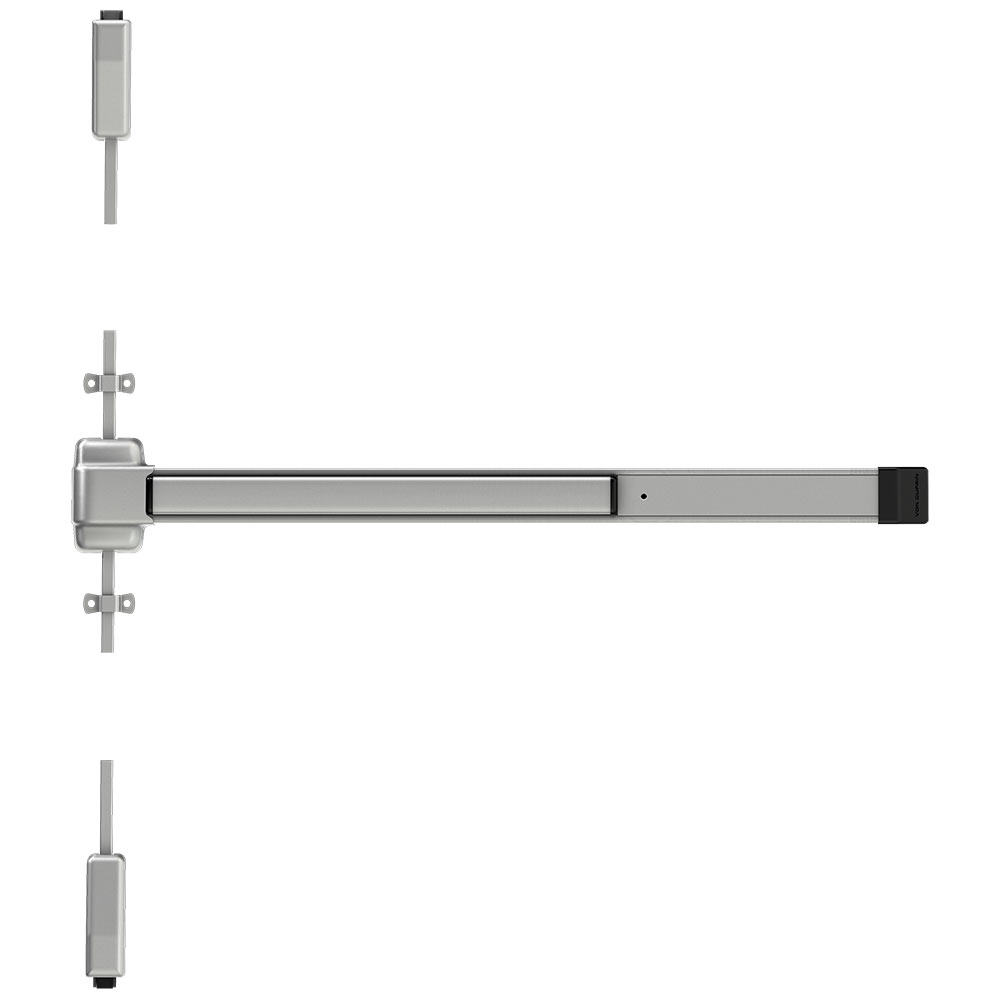

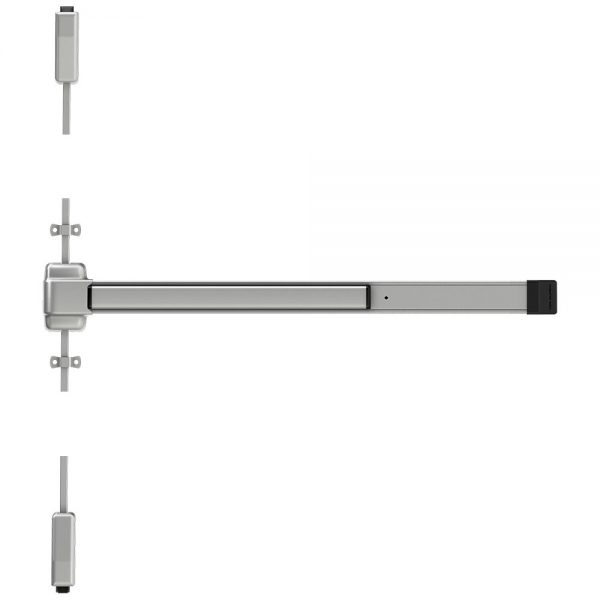

Von Duprin 2227EO Surface Vertical Rod Panic Exit Device

Usually Ships: 1-2 Days
  • ANSI/BHMA Grade-1 Certified – Made in USA
  • Non-Handed – For Metal and Wood Doors
  • Exit Only Model (Trim Sold Separately)

Available Options:

  • Aluminum
  • Dark Bronze
Clear

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System.

  • 2227-EO Exit Only, ANSI Function 01 (Outside Trim Sold Separately)
  • ANSI A156.3, Grade-1 certified
  • UL listed for Panic Hardware
  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rods available for doors up to 10′)
  • Finishes: SP28 (Sprayed Aluminum), SP313 (Sprayed Dark Bronze)

Brand

Finishes

689 Aluminum, 695 Dark Bronze

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Device Type

Surface Rod Device

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Fire Rating

None

Hand

Non-handed

Door Height

7'0" (Standard)

Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (extension rod available for doors up to 10'0")

Dogging Feature

Half turn hex dogging standard

Latchbolt

Deadlatching, 3/4" throw

Stile Type

Wide (Standard)

Projections

3-3/4" Maximum, 3" Dogged

Strikes

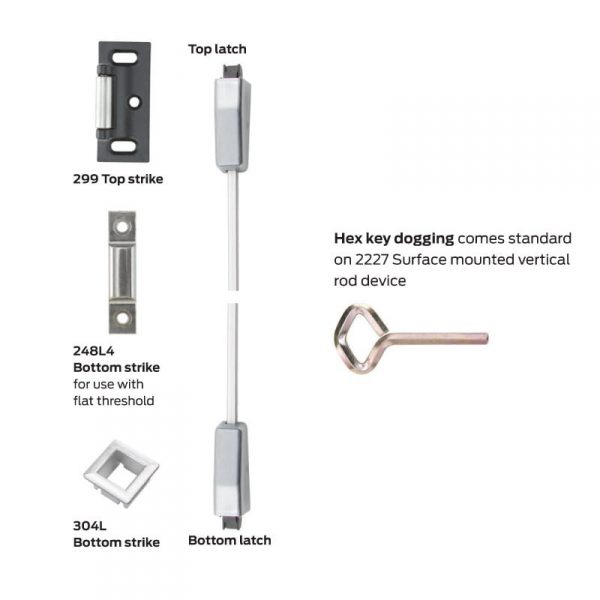

299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
