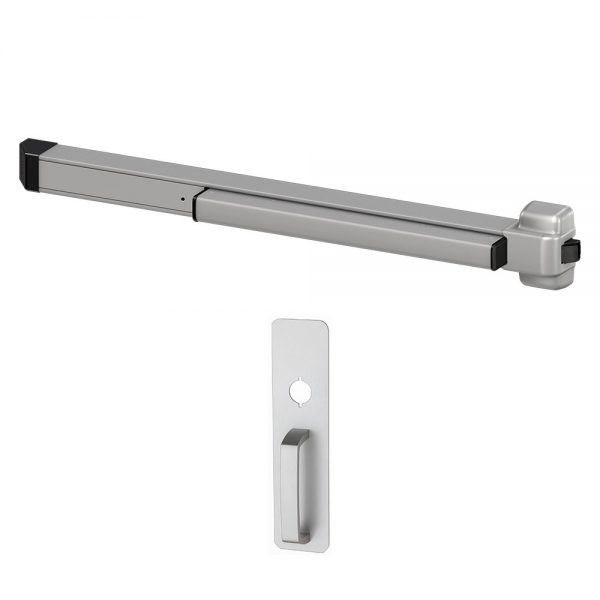

Von Duprin 22NL Rim Panic Bar Exit Device with 230NL Night Latch Pull

Usually Ships: 1-2 Days
  • ANSI/BHMA Grade-1 Certified – Made in USA
  • ANSI Function 03 (Key Retracts Latchbolt)
  • Includes 230NL Night Latch Pull (cylinder sold separately)

Available Options:

  • Aluminum
  • Dark Bronze
Clear

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System.

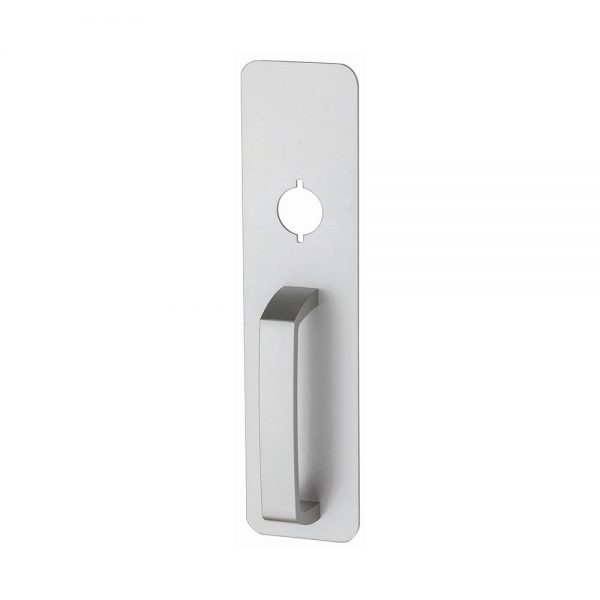

230NL Night Latch Pull Trim

  • ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key – Key is removable only when it’s locked)
  • Escutcheon plate size: 3″ x 12-1/16″ x 3/32″
  • Projection: 2″
  • Pull center to center: 5″
  • Rim cylinder must be ordered separately

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Fire-Rated

Non-Fire-Rated (w/ Dogging Feature), Fire-Rated (No Dogging)

Trim

230NL Night Latch Pull

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

Hand

Non-handed

Fire Rating

22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

299 roller strike standard, 299F strike with fire-rated device

Stile Type

Wide (Standard)

Finishes

689 Aluminum, 695 Dark Bronze

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
