Trudoor TDE-1000V-EO Heavy-Duty Surface Vertical Rod Exit Device, Panic Rated, Exit Only

Usually Ships: Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic exit hardware

Available Options:
Clear

Product Overview

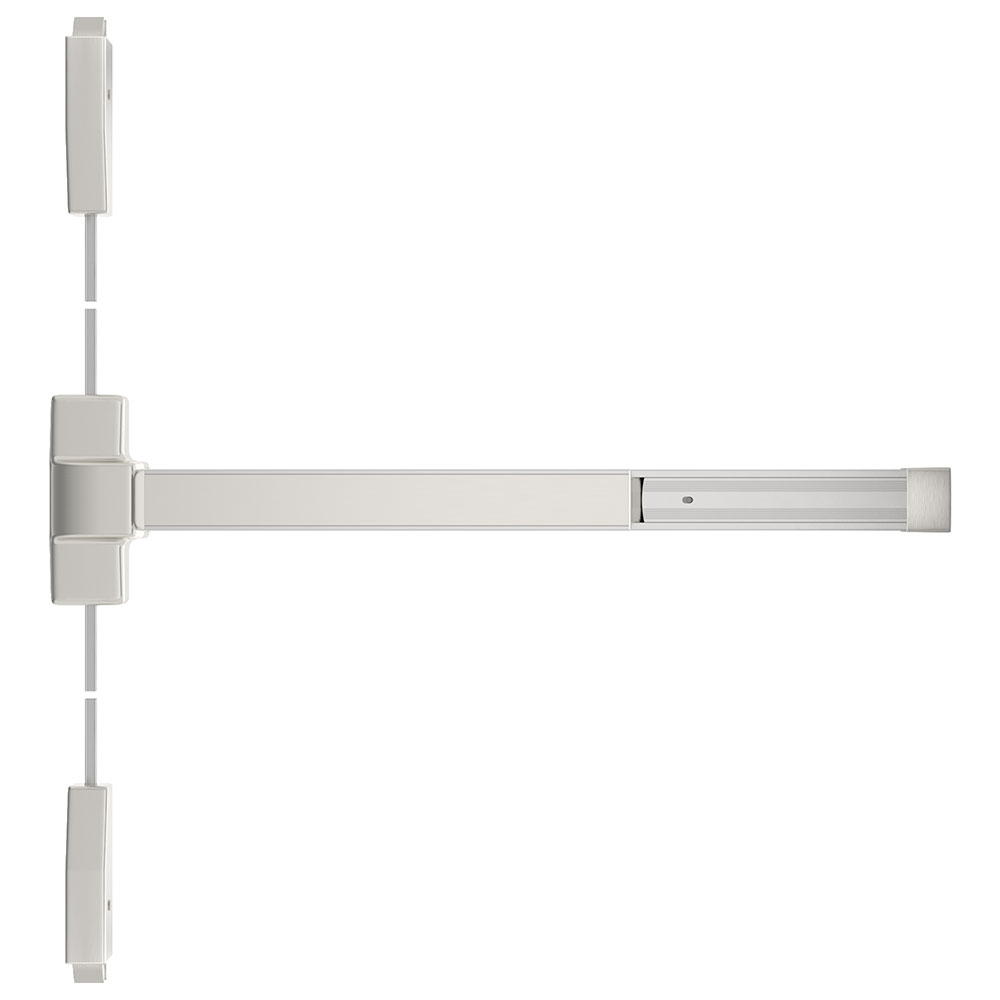

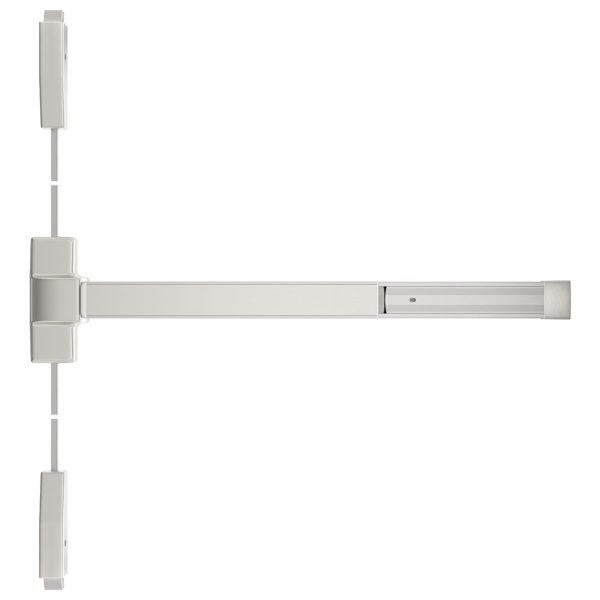

Trudoor TDE-1000V Heavy-Duty Grade-1 Surface Vertical Rod Exit Device, Panic Rated, Exit Only, Satin Stainless Steel, 7ft Door Height

TDE-1000 Series surface vertical rod exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • UL Listed for Panic Exit Hardware
  • Designed for heavy use
  • Door heights: 7′ Standard – extended top rods available for up to 8′ tall doors
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor

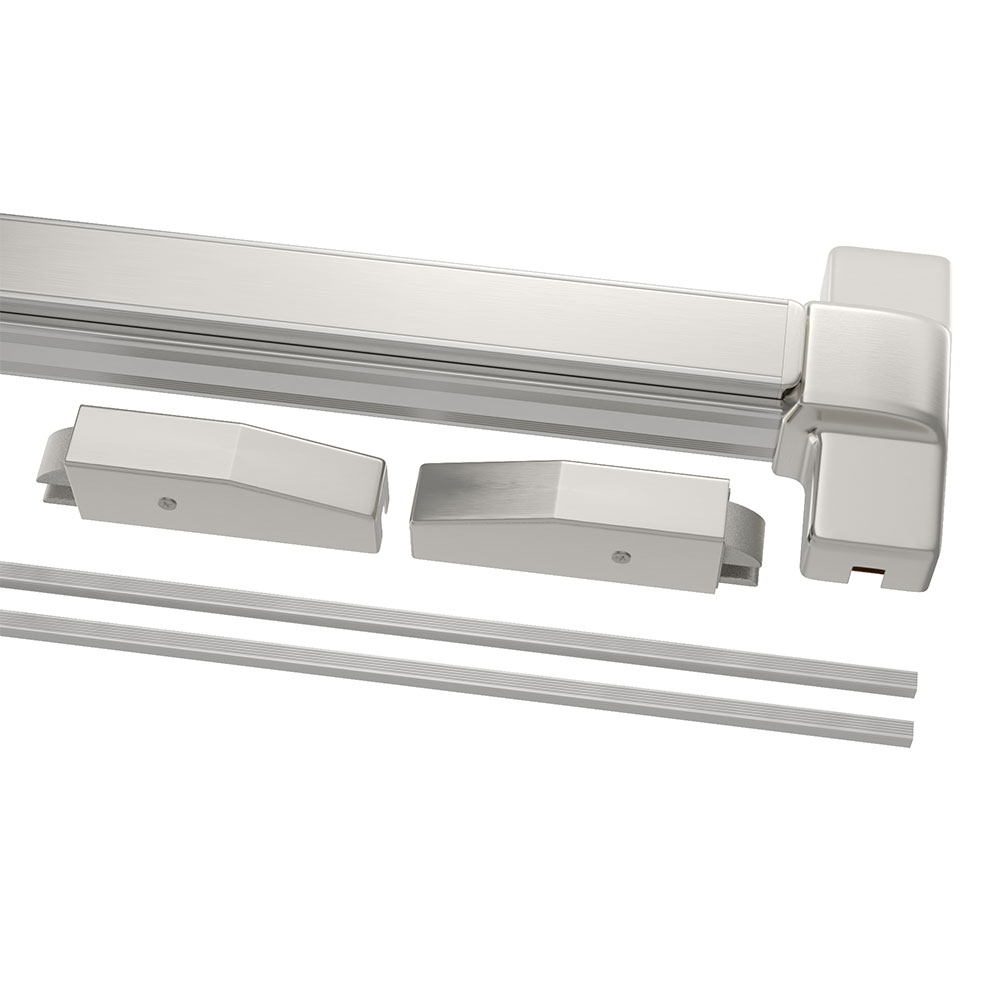

  • Heavy-duty extruded anodized aluminum mechanism case and cover plate

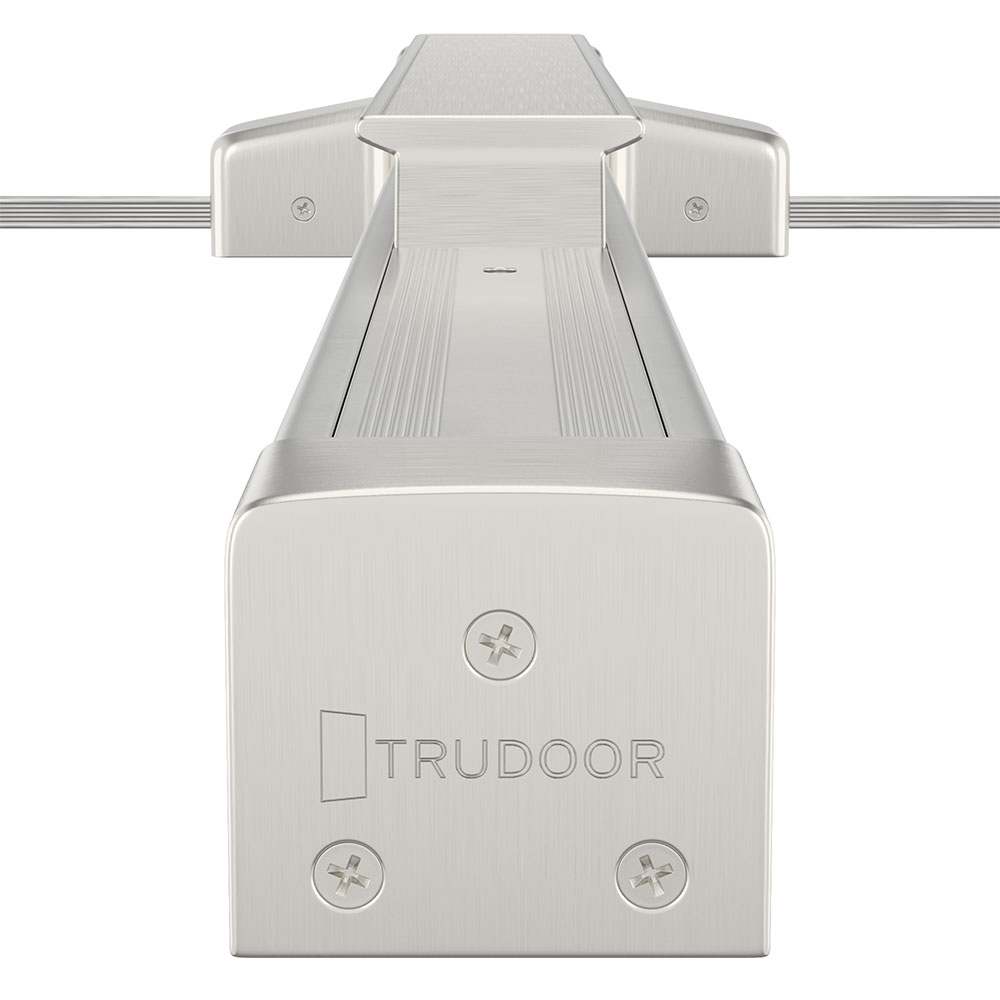

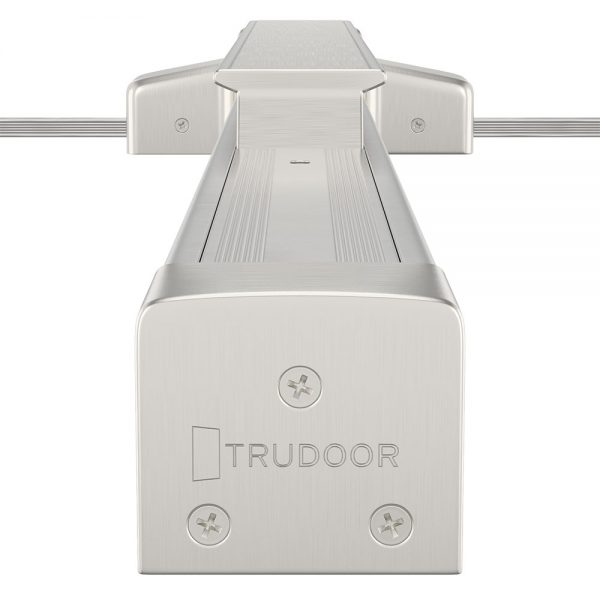

  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device

ul-listed







Cross Reference

The TDE-1000V can be specified as a substitute for: Cal-Royal 7760V/9860V, Corbin Russwin ED5400, Design Hardware 1000V, Dorma 9400, Falcon 25-V, Hager 4501SVR, Marks M9900VR, PDQ 6300, Precision 2200, Sargent 8700, Von Duprin 9827/9927, Yale 6170/7170

Brand

Finishes

US32D (630) Satin Stainless Steel
Length

3ft (for doors 2'4" to 3'0")
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Device Type

Surface Rod Device
ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Usage

Heavy Duty
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
UL Listings

UL Listed for Panic Exit Hardware
Fire Rating

Non-Fire-Rated
Trim

None – Exit Only (Outside Trim Sold Separately)
Dogging Feature

Half turn hex dogging standard
Top Latch

U shaped top latch for secure engagement with strike
Bottom Latch

Drop bolt style bottom latch secures into flat strike and hole in the floor
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Easily Re-handed in the field – Shipped as RHR
Stile Type

Wide (Standard)
Minimum Stile Width

4-1/2"
Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick
Mechanism Case

2-3/16″ Height x 2-3/16″ Wide
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Warranty

Limited Lifetime Warranty
