Product Overview

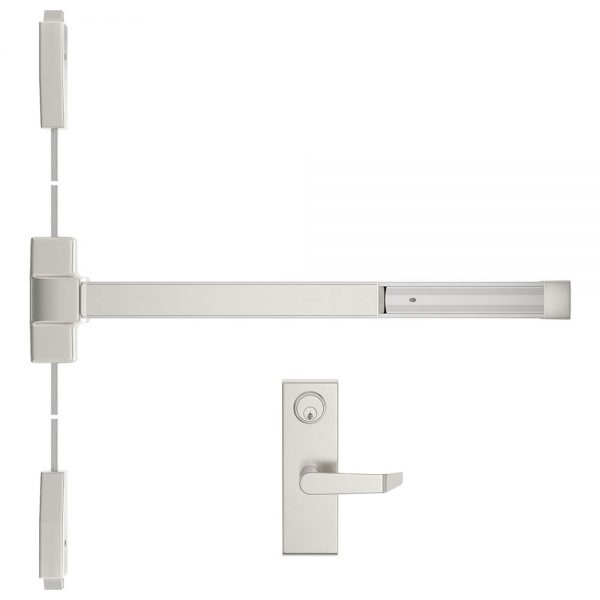

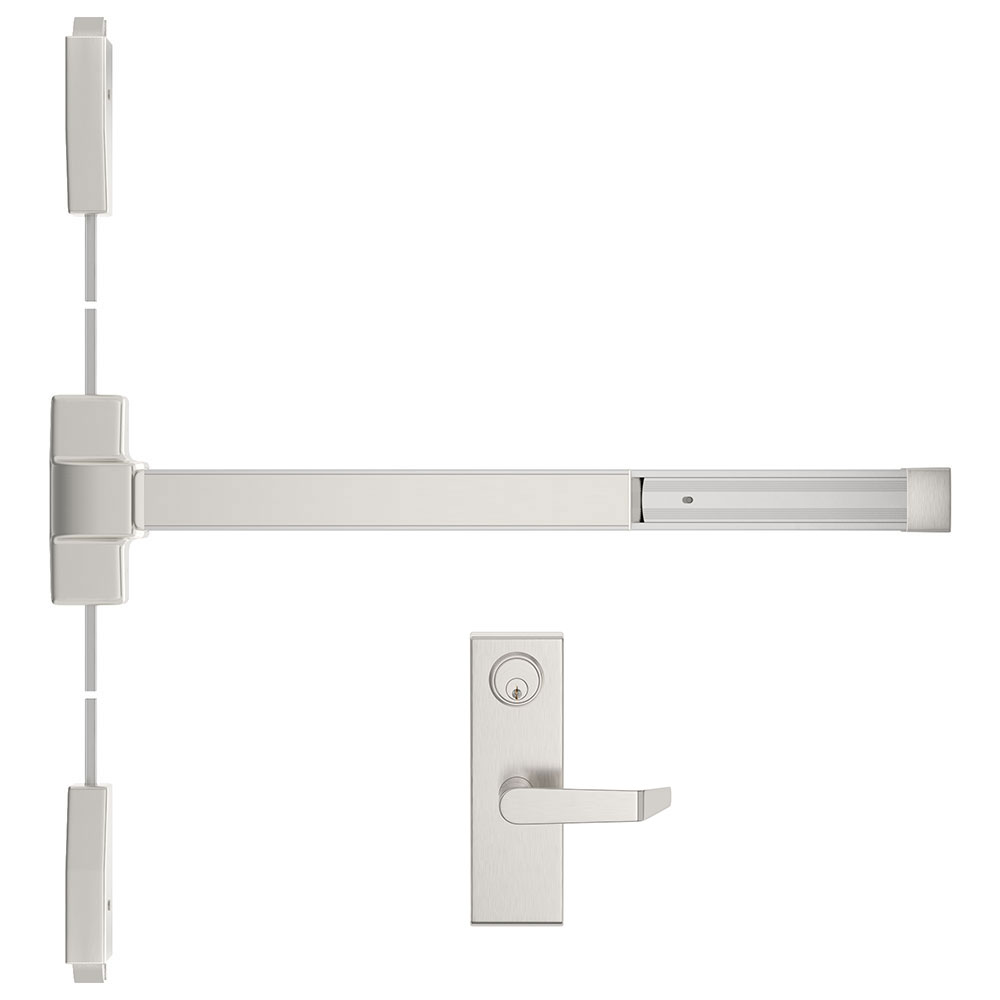

Trudoor TDE-1000V-L Heavy-Duty Grade-1 Surface Vertical Rod Exit Device with Escutcheon Lever Trim, Panic Rated, Satin Stainless Steel, 7ft Door Height
TDE-1000 Series surface vertical rod exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.
- ANSI Function 08 (Classroom) or 09 (Night Latch / Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
- UL Listed for Panic Exit Hardware
- Designed for heavy use
- Door heights: 7′ Standard – extended top rods available for up to 8′ tall doors
- Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
- Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
- Heavy-duty extruded anodized aluminum mechanism case and cover plate
- Steel chassis, center case cover, push pad, and end cap
- Hex key dogging standard on panic exit device
TDE-08 Escutcheon Lever Trim
- Entry/classroom function – convertible to night latch
- Steel, zinc dichromated chassis, stainless steel exterior housing
- Thru-bolts to exit device for added strength
- 5″ solid stainless steel lever, 2-7/8″ total projection
- Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
- 1-3/4″ door thickness standard
- Includes thru bolt posts and 1/4″-20 machine screws for installation
- Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys
- Meets ADA requirements – A117.1 Accessibility code
| Brand | |
|---|---|
| Finishes | US32D (630) Satin Stainless Steel |
| Length | 3ft (for doors 2'4" to 3'0") |
| Door Height | Up to 7'0" Standard (extension top rod for 8'0" doors optional) |
| Device Type | Surface Rod Device |
| ANSI/BHMA Standard | Meets ANSI/BHMA A156.3 Grade 1 Standards |
| Usage | Heavy Duty |
| ADA Compliance | Meets ADA requirements ANSI A117.1 with Lever Trim |
| UL Listings | UL Listed for Panic Exit Hardware |
| Fire Rating | Non-Fire-Rated |
| Trim | TDE-08 Escutcheon Lever |
| Cylinder | 1-1/8" mortise cylinder with straight cam (included) |
| Keyway | Schlage C Keyway |
| Dogging Feature | Half turn hex dogging standard |
| Top Latch | U shaped top latch for secure engagement with strike |
| Bottom Latch | Drop bolt style bottom latch secures into flat strike and hole in the floor |
| Fasteners | Wood, Machine & Self Tapping Machine Screws |
| Handing | Easily Re-handed in the field – Shipped as RHR |
| Stile Type | Wide (Standard) |
| Minimum Stile Width | 4-1/2" |
| Center Case | 8” Height x 2-7/8” Wide x 2-13/16” Thick |
| Mechanism Case | 2-3/16″ Height x 2-3/16″ Wide |
| Projections | 3-3/8″ Undogged – 2-13/16″ Dogged (Depressed) |
| Warranty | Limited Lifetime Warranty |
