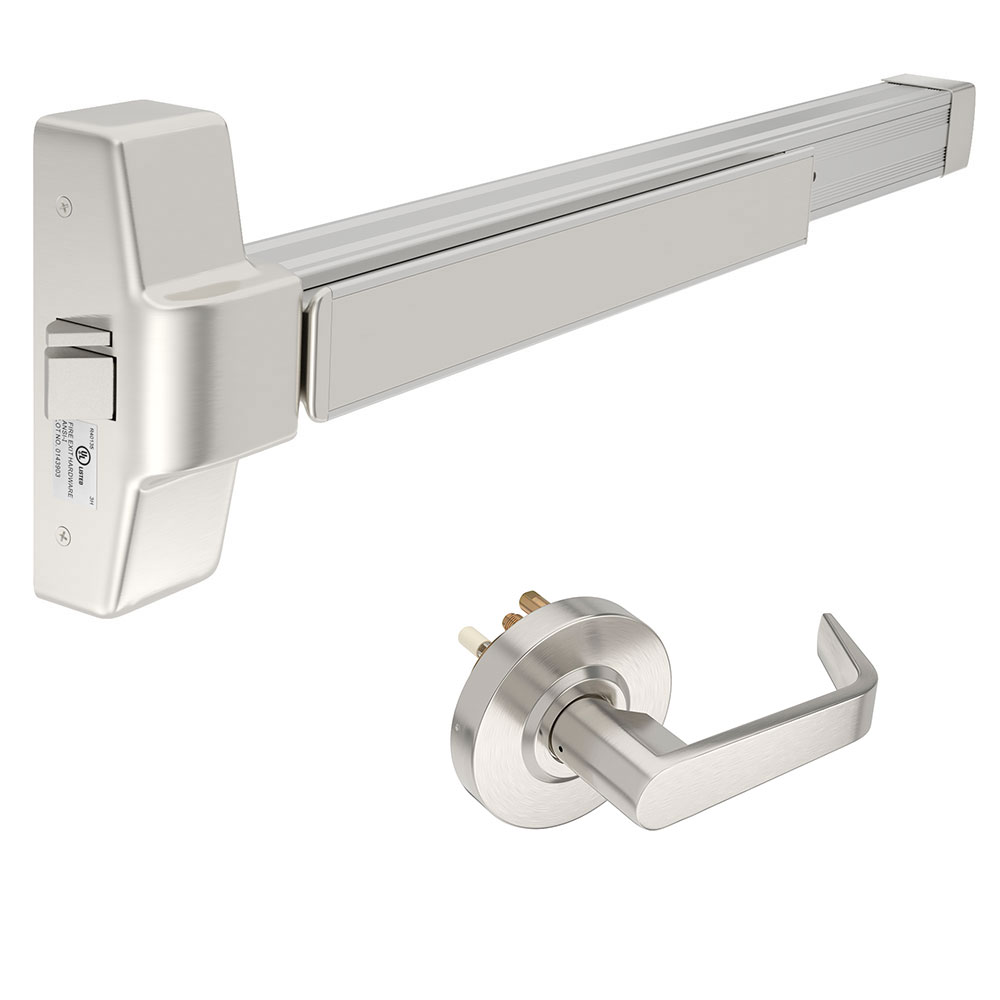

Trudoor TDE-1000R-PAS Rim Exit Device with Passage Lever Trim

Usually Ships: Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes keyless PAS lever trim, always unlocked and free
  • Installs in a standard 161 door prep (2-1/8″ hole)

Available Options:


Trudoor TDE-1000R-PAS Heavy-Duty Grade-1 Rim Exit Device with Passage Lever Trim, Entry/Classroom Function

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 14 – Passage, no key, lever always unlocked and free
  • UL Listing: UL Listed for panic exit hardware
  • (Optional) Fire-rating: UL Listed for “A” Label 3 hour fire doors (no dogging on fire-rated devices)
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • US32D/630 stain stainless steel device

TDE-PAS Lever Trim

  • ANSI 14: lever always unlocked and free, keyless
  • Steel, zinc dichromated chassis with secure thru-bolted design
  • 5” solid zinc diecast lever, 2-7/8“ total projection
  • 3-3/8″ wrought brass rose
  • ADA compliant design
  • Installs in 2-1/8″ 161 door prep
  • Cross-shaped stainless steel actuator
  • Non-handed, completely reversible
  • US26D satin chrome finish




US32D (630) Satin Stainless Steel Device w/ US26D (626) Satin Chrome Lever


3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")


PAS (Passage Lever)

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards


Heavy Duty

Fire Rating

TDE-1000R: Non-Fire-Rated – TDE-F1000R: 3 Hour Fire-Rated

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim


Non-Handed, Field selected at the time of installation

Dogging Feature

Hex key dogging standard on non-fired-rated devices


Deadlocking latchbolt with 5/8″ projection


Roller Strike with 5/8″ projection & 1/8″ shim


Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide


3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)


Limited Lifetime Warranty
