Trudoor TDE-1000R-L Rim Exit Device with Escutcheon Lever

Usually Ships: Same Day

Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
Includes TDE-08 escutcheon lever trim (cylinder included)
ANSI Function 08 (classroom) or 09 (night latch)

Available Options:

Finish
Length
Fire-Rated	Clear

Quantity:

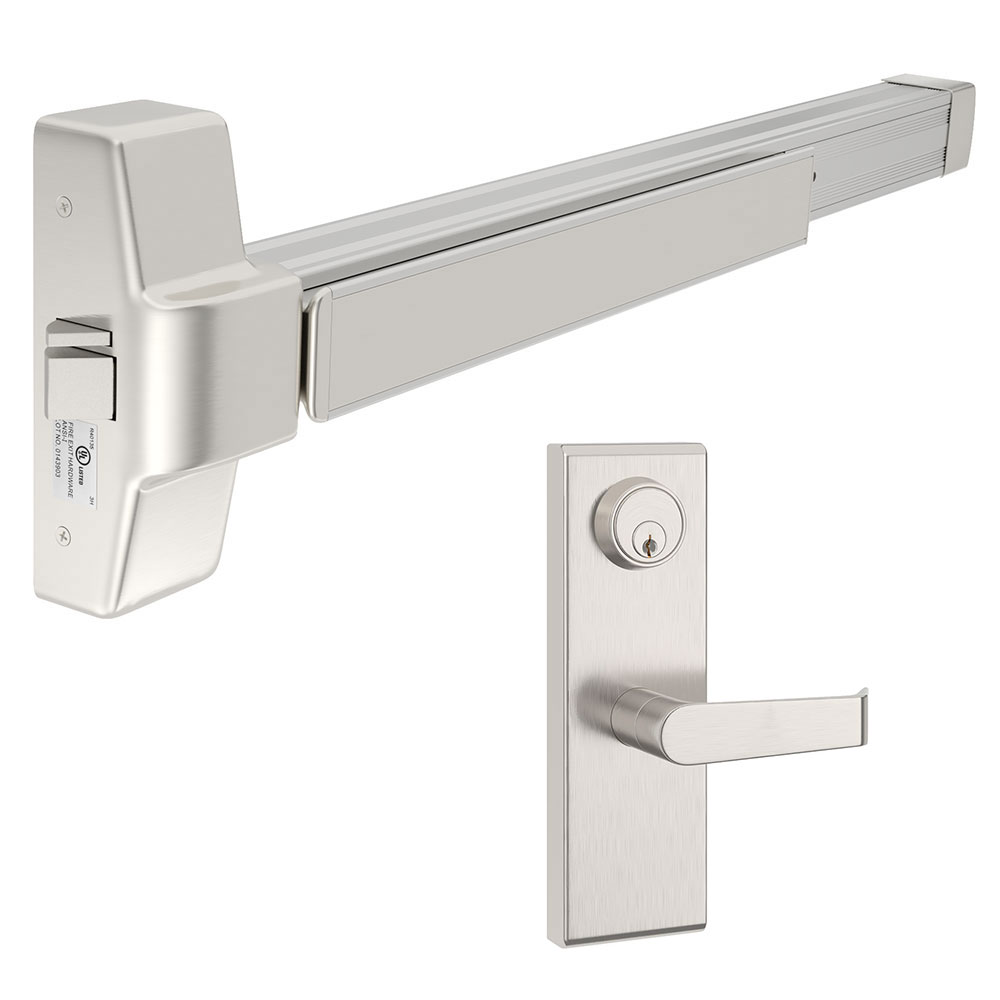

Trudoor TDE-1000R-L Heavy-Duty Grade-1 Rim Exit Device with Escutcheon Lever Trim, Satin Stainless Steel

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

ANSI Function 08 (Classroom) or 09 (Night Latch / Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
UL Listing: UL Listed for panic exit hardware
(Optional) Fire-rating: UL Listed for “A” Label 3 hour fire doors (no dogging on fire-rated devices)
Designed for medium to heavy use
Heavy-duty extruded anodized aluminum mechanism case and cover plate
Steel chassis, center case cover, push pad, and end cap
Hex key dogging standard on panic exit device
Deadlocking latchbolt with 5/8” projection
Non-handed for easy installation
Includes ASA strike (frame) filler plate and 161 door edge filler plate

TDE-08 Escutcheon Lever Trim

Entry/classroom function – convertible to night latch
Steel, zinc dichromated chassis, stainless steel exterior housing
Thru-bolts to exit device for added strength
5″ solid stainless steel lever, 2-7/8″ total projection
Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
1-3/4″ door thickness standard
Includes thru bolt posts and 1/4″-20 machine screws for installation
Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys
Meets ADA requirements – A117.1 Accessibility code

Brand	Trudoor
Finishes	US32D (630) Satin Stainless Steel
Length	3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
Trim	TDE-08 Escutcheon Lever
Cylinder	1-1/8" mortise cylinder with straight cam (included)
Keyway	Schlage C Keyway
ANSI/BHMA Standard	Meets ANSI/BHMA A156.3 Grade 1 Standards
Usage	Heavy Duty
Fire Rating	TDE-1000R: Non-Fire-Rated – TDE-F1000R: 3 Hour Fire-Rated
ADA Compliance	Meets ADA requirements ANSI A117.1 with Lever Trim
Handing	Non-Handed, Field selected at the time of installation
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners	Wood, Machine & Self Tapping Machine Screws
Stile Type	Wide (Standard)
Center Case	8” Height x 2-7/8” Wide x 2-13/16” Thick
Mechanism Case	2-3/16″ Height x 2-3/16″ Wide
Projections	3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Warranty	Limited Lifetime Warranty
