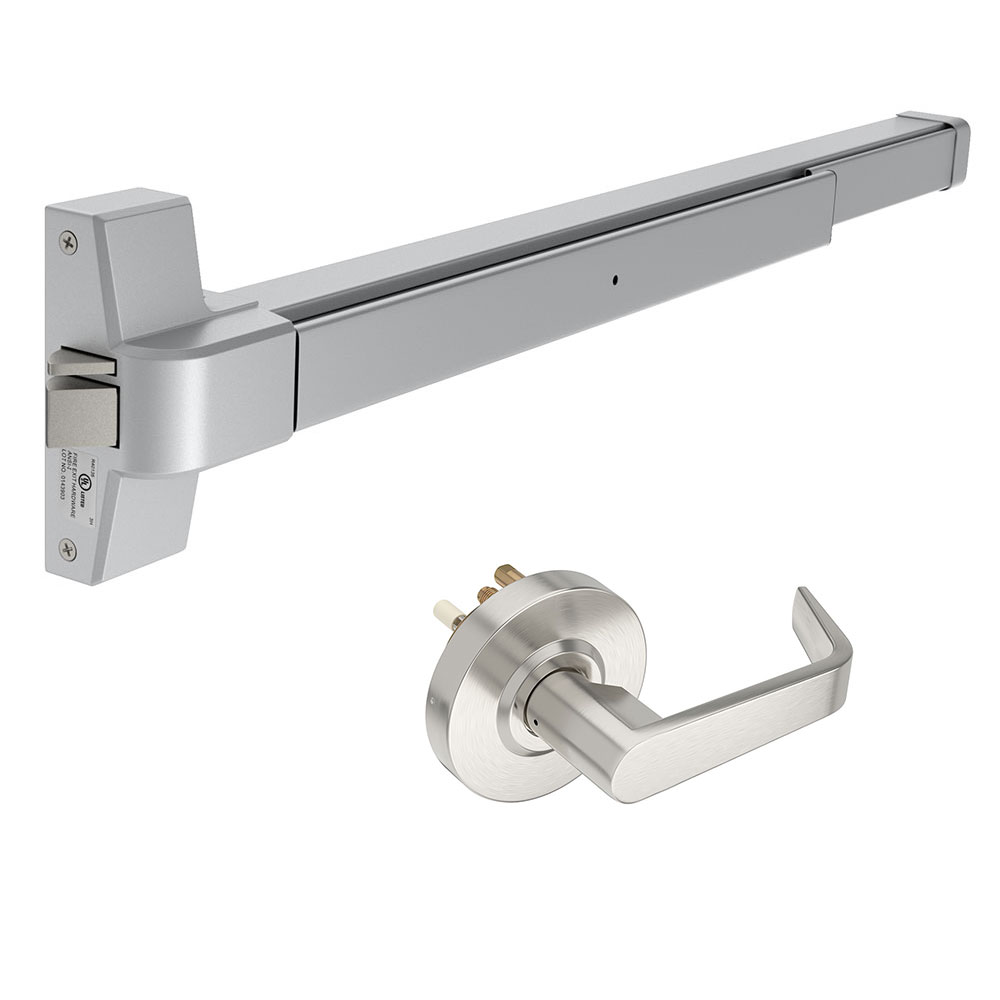

Trudoor TDE-2000R-PAS Rim Exit Device with Passage Lever Trim

Usually Ships: Same Day
  • TDE-2000R with Passage Lever Trim (keyless, always unlocked)
  • Non-handed and reversible for easy installation
  • Lever installs in standard 2-1/8″ 161 door prep

Available Options:

Clear

Trudoor TDE-2000R-PAS Grade-1 Rim Exit Device with TDE-PAS Passage Lever Trim

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • TDE-2000R: UL Listed for Panic Exit Hardware
  • TDE-F2000R: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • ADA compliant lever trim and meets California code for 1/2″ lever return to door face





Cross Reference

The TDE-2000R-PAS can be specified as a substitute for: Cal-Royal 2200 x PAS30L / 5000 x 8000PAS, Design Hardware 2000R x KIL-PASSAGE, Dorma 8300 x 8R23, Falcon 19R-KIL-BE / 20R x 214-KIL-BE, Hager 4700 x 47KP, PDQ 4200 x 4-SH-14, Von Duprin 22L-BE , Yale 1800 x 448F / 2100 x 448F

Brand

Model

TDE-2000R Panic Device (w/ Dogging Feature), TDE-F2000R Fire-Rated Device (No Dogging)

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

Finishes

622 Matte Black, SP28/AL Aluminum Device – US26D/626 Satin Chrome Lever

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

UL Listings

TDE-2000R Listed for Panic Exit Hardware – TDE-F2000R Listed for “A” Label 3 Hour Fire Doors

Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed

Trim

PAS (Passage Lever)

Lever

5” Solid Zinc Diecast lever – 2-7/8“ total projection

Rose

3-3/8" Wrought Brass

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick

Mechanism Case

1-5/8″ Height x 1-13/16″ Wide

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
