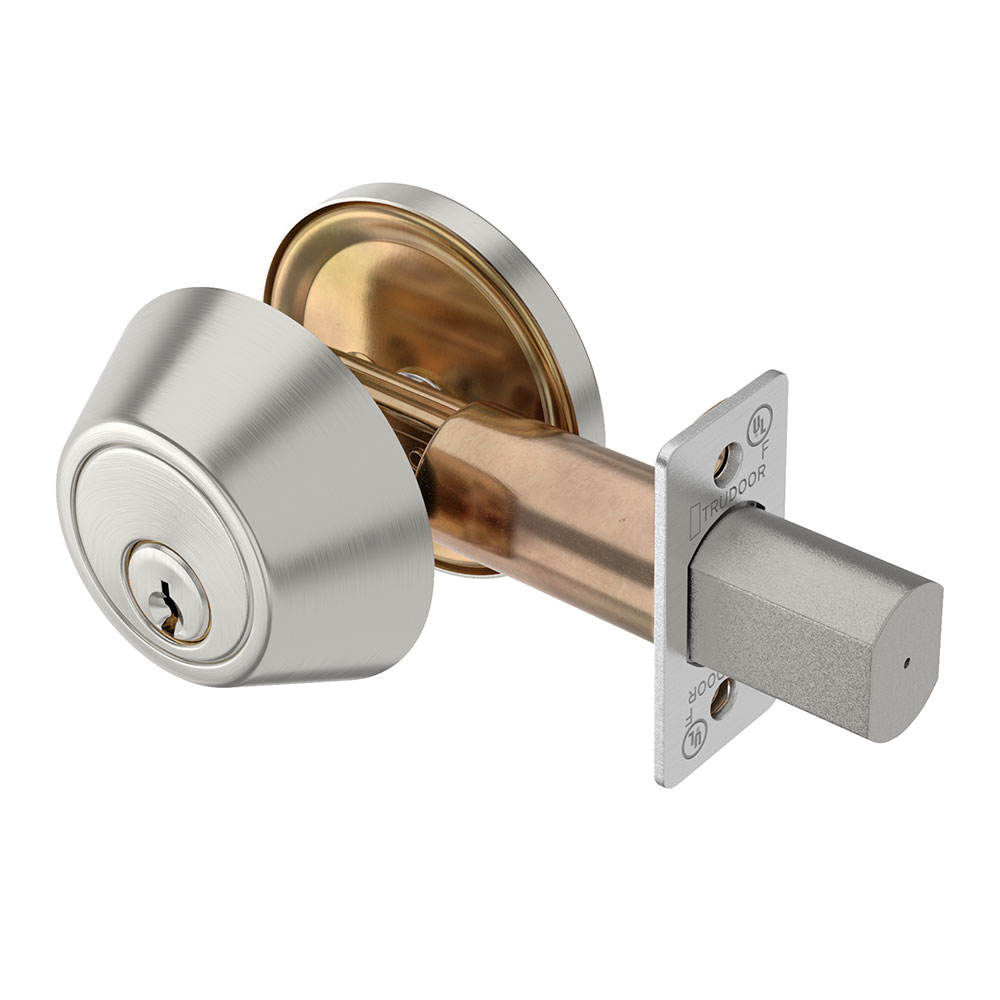

Trudoor DL2 Grade-2 Single Cylinder Deadbolt Lock


Usually Ships: Same Day
  • Medium-Duty – Grade 2

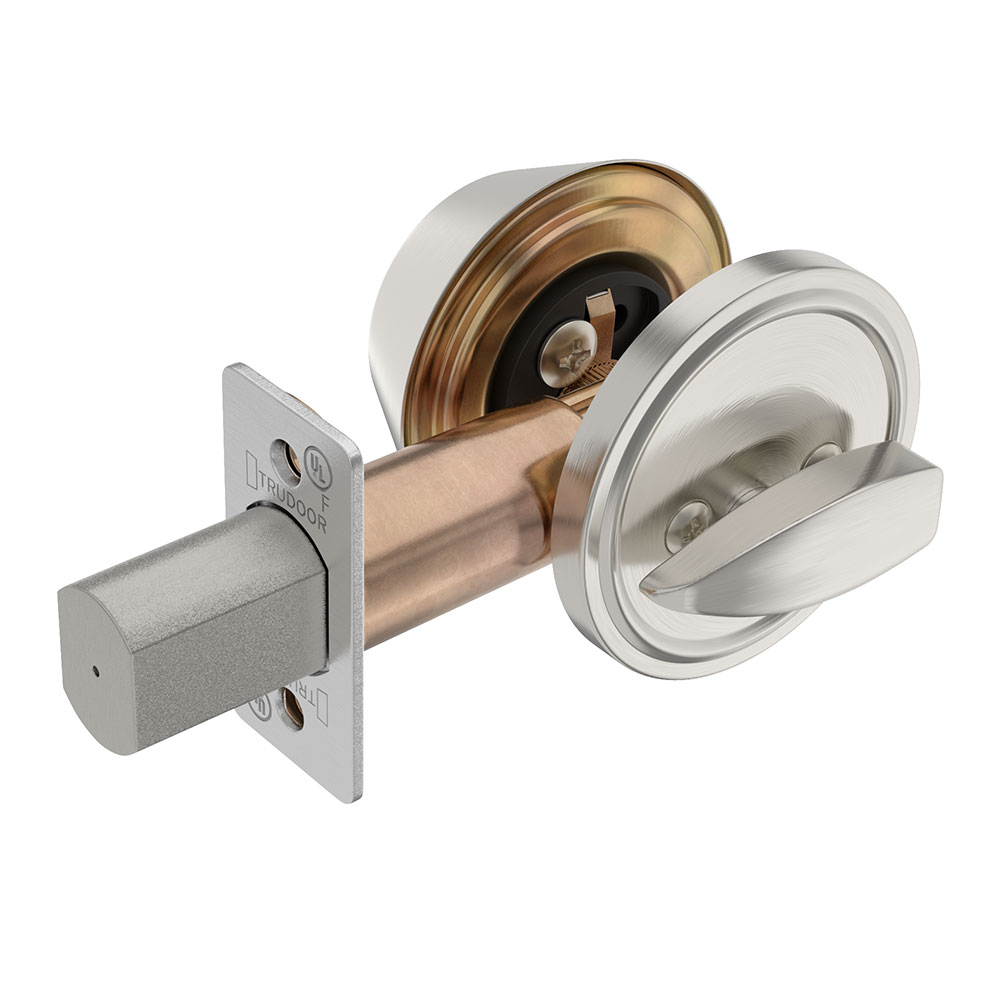

  • Single Cylinder x Inside Turn
  • C Keyway – US26D Satin Chrome

DL2 Series deadbolt locks are an ideal choice for medium-duty commercial applications when added security is needed.

  • ANSI E21522 – Single cylinder outside, thumbturn inside
  • Meets & exceeds ANSI – A156.2, Grade 2 standards
  • For use with interior or exterior metal and wood doors
  • ADA compliant thumb turn
  • 3 hour fire-rated (UL Listed)

Cross Reference

The DL2 can be specified as a value engineered substitute and/or replacement for: Arrow E61, Cal-Royal ULT360, Corbin Russwin DL2213, Design Hardware D2-S, Dorma DB660, Falcon D241, Hager 3215, Sargent 475, Schlage B560P, Yale D212



US26D (626) Satin Chrome

Deadbolt Type

Single Cylinder

ANSI Function


ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards


Medium Duty

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys


Schlage C Keyway


1" throw bolt, 1-1/8" x 2-1/4" square corner face plate


2-3/4" standard


1-1/8” x 2-3/4“ square corner

Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Door Thickness
