Product Overview

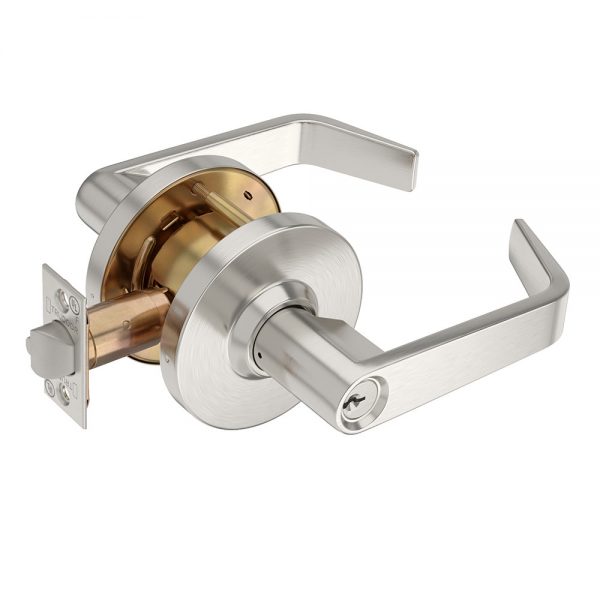

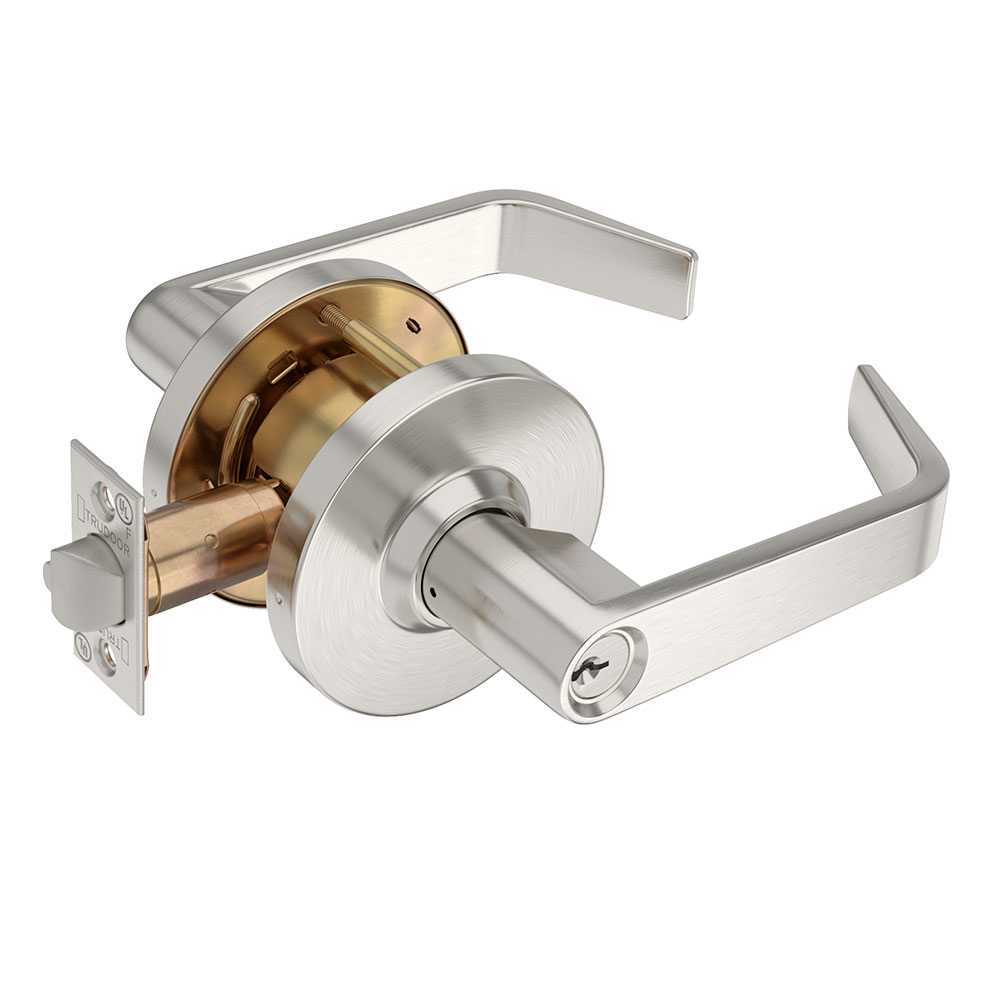

Trudoor CL2-86, CL2 Series Grade-2 Cylindrical Lever Lock, Storeroom Function
Trudoor® CL2 Series cylindrical locks are an ideal choice for a wide variety of medium-duty commercial applications where consistent reliability and easy installation are required at an economical price. CL2 locks are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality and other commercial or industrial buildings.

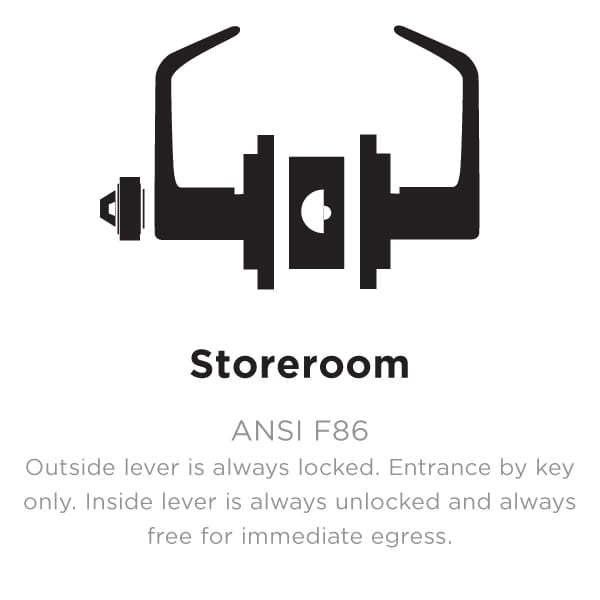

Storeroom Function, ANSI F86 – Outside lever is always locked. Entrance by key only. Inside lever is always unlocked and always free for immediate egress.
- Quality construction and reliability at an affordable price
- Anti-sag mechanism with independent lever return springs to prevent sag
- Non-handed and reversible for easy installation
- Optional thru-bolts for added strength
- 626 Satin Chrome or 622 Matte Black finish
- 2-3/4″ backset latch and ASA strike standard (2-3/8″ backset, t-strike, and full lip strike available in lock parts and accessories)
Code Compliance
- Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
- UL Listed for “A” Label 3 Hour Fire-Rated Doors
- Meets ADA and ANSI A117.1 Accessibility Codes
- Meets California code for 1/2″ lever return to door face
Cross Reference
The CL2-86 can be specified as a substitute and/or replacement for: Arrow MLX82-SB / RL12, Cal-Royal SL05 / XP05, Corbin Russwin CL3857, Design Hardware J-86-F, Dorma C280 / CL780, Falcon B581 / W581, Hager 3580, Marks 175F, PDQ SD115 / GP115, Sargent 65G04 / 7G04, Schlage AL80PD / ALX80P, Stanley QCL270, Yale 5305LN / 4605LN
| Brand | |
|---|---|
| Finishes | 622 Matte Black, US26D (626) Satin Chrome |
| Lock Function | Storeroom |
| ANSI Grade | Meets & exceeds ANSI – A156.2, Series 4000, Grade 2 standards |
| Usage | Medium Duty |
| Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
| Keyway | Schlage C Keyway |
| Latch | 2-3/4" Backset: 1/2" throw, deadlatch – 1-1/8" x 2-1/4" face or 2-3/8" Backset: 1/2" throw, deadlatch – 1" x 2-1/4" face |
| Backset | 2-3/4" Standard, 2-3/8" Optional |
| Strike | Standard: 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation. Optional 2-3/4" x 1-1/8" T-Strike |
| Handing | Non Handed – Completely Reversible |
| Chassis | Steel, zinc dichromated for corrosion resistance |
| Trim | 5” solid zinc die-cast levers, 3-3/8” wrought brass roses |
| Fasteners | Combination screws for wood or metal doors & frames |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | UL Listed for “A” Label 3 Hour Fire Doors |
| Door Thickness | 1-3/8" to 1-3/4" |
| Door Applications | Interior or Exterior Hollow Metal Doors and Wood Doors |
| Warranty | Limited Lifetime Warranty |
