Product Overview

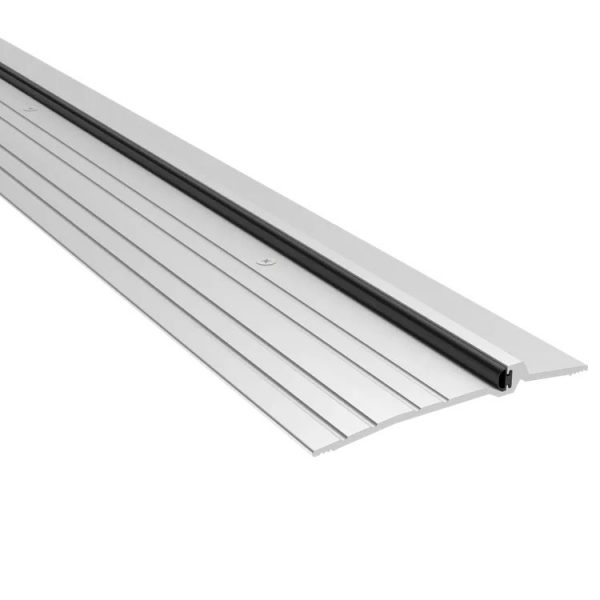

Pemko 2005_V Latching Panic Saddle Threshold with Eco-V Vinyl Insert

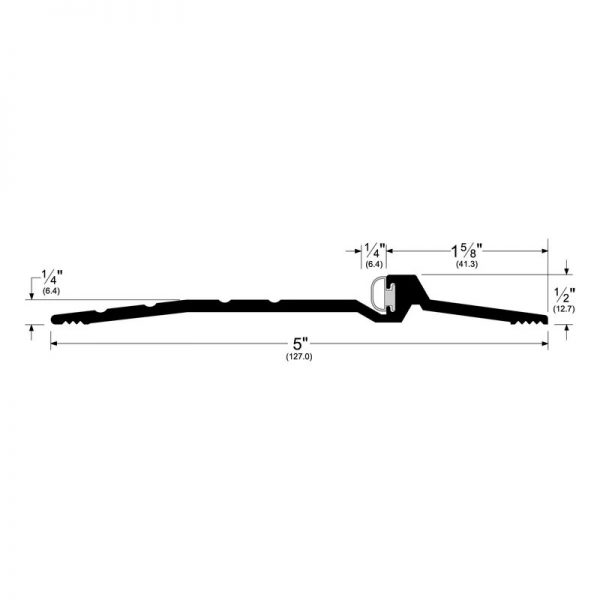

The 2005 Series Latching Panic Saddle Threshold has a 5″ width and allows for a 3/8″ door clearance. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket Eco-V (V). This threshold is sound air infiltration tested, fire rated, and BHMA certified.
- Allow 3/8″ Door Clearance
- Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
- 2005AV: A – Mill Finish Aluminum Aluminum with Eco-V® insert
- 2005BSPV: BSP – Black Suede Powder Coat with Eco-V® insert
- 2005DV: D – Dark Bronze Anodized Aluminum with Eco-V® insert
Ratings
- Barrier-Free
- BHMA Certified
- Fire Rated – UL10C – Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
Warranty Info
Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.
| Brand | |
|---|---|
| Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
| Length | 36", 48", 72", 96" |
| Width | 5" |
| Height | 1/2" |
| ANSI/BHMA Standard | ANSI/BHMA A156.2 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | Up to 3 Hours with metal doors; 90 minutes with wood doors |
