Product Overview

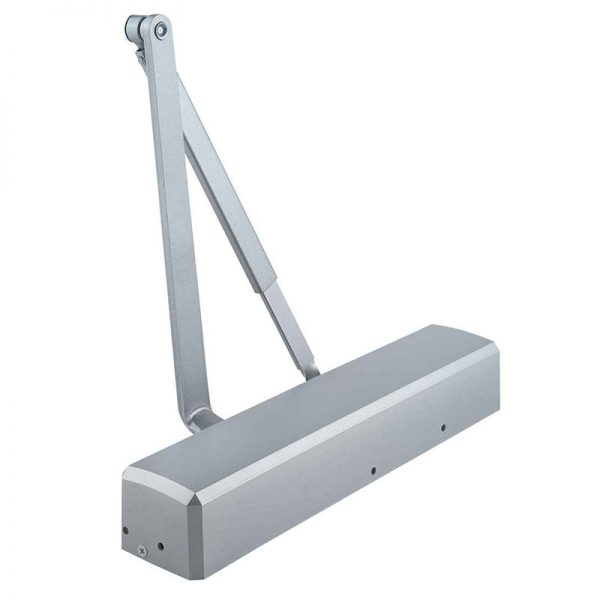

Dormakaba (Formerly Stanley) QDC211 Grade 1 Door Closer, Tri-Pack
You don’t have to compromise security or aesthetics on narrow top rail doors in high-use areas. dormakaba Commercial Hardware QDC200 Series closers allow maximum flexibility for indoor or outdoor use, accommodate reduced rail heights and come with options to keep your entry point compliant with ADA force requirements—all in a slim design that works with your design aesthetic. The QDC200 closers are simple to install and retrofit—and sure to deliver the form and function you can count on.
- QDC211: Tri-pack arm (non-handed)
- Body: Cast aluminum
- Covers: Full-size architectural plastic and slim-line plastic available
- ANSI/BHMA A156.4 Series—Grade 1
- ANSI A117.1 Accessibility Code (ADA Compliant)
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Retrofit for Norton 8000
Brand | |
---|---|
Finishes | 689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated) |
Cover Type | Full Cover, Slim Cover |
Usage | Medium Duty |
ANSI/BHMA Standard | ANSI/BHMA A156.4, Grade 1 certified |
Templating (Hole Pattern) | 3/4" x 12" |
Body Construction | Cast Aluminum Body |
Spring Size | Adjustable Spring Size 1-6 |
Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
Fire Rating | UL Listed – UL10c compliant for positive pressure |
Handing | Non-Handed |
Door Applications | Hollow Metal, Wood or Aluminum |
